Bad Boy Tractors 4035 vs Kubota L3301

Across 9 measurable specs, the Bad Boy Tractors 4035 leads 9 categories to 0. Machine pages: Bad Boy Tractors 4035 and Kubota L3301.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	KubotaL3301

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A1700N4-BUTR_4	F (2WD gear), DT (4WD gear): D1803-CR-E4-LB1; HST (4WD): D1803-CR-E4-LB2
Engine Type	Vertical, 4-stroke, water-cooled diesel	Liquid-cooled, 3-cylinder, 4-cycle, multi-valve diesel, naturally aspirated, common rail direct injection
No. of Cylinders	3	3
Displacement	104.7 in³	111.4 in³
Rated Engine Speed	2600 rpm	2700 rpm
Engine Power (Gross)	35 hp	33 hp
PTO Power	29.5 hp	F (2WD gear), DT (4WD gear): 27.7 hp; HST (4WD): 26.2 hp
Engine Emissions Constraints	EPA Final Tier4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled, water with pressurized radiator
Air Cleaner	Not Published	Dry paper single element
Fuel System	Not Published	Common rail (CRS) direct injection, electronic fuel injection
Alternator	50 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Not Published	Open center tandem pump, gear type
Implement Flow	8.2 gpm	6.3 gpm
Steering Flow	4.4 gpm	3.8 gpm
Total Hydraulic Flow	12.6 gpm	10.1 gpm
Overall Hydraulic Pump Flow	12.6 gpm	10.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Up to 3 (self canceling detent valve or float detent valve options)
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	11.1 gal
Coolant Capacity	1.32 gal	6.3 qt
Crankcase Capacity	1.14 gal	7.1 qt
Transmission / Hydraulic System Capacity	9.77 gal	F (2WD gear): 7.4 gal; DT (4WD gear): 7.5 gal; HST (4WD): 6.2 gal
Front Axle Fluid Capacity	1.69 gal	4.8 qt
▶PTO & Hitch
PTO Type	Independent	Live independent PTO with hydraulic clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	No mid-PTO offered
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306.9 lb	1998 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1433 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	F (2WD gear), DT (4WD gear): Synchronized shuttle gear transmission, 8F/8R; HST (4WD): Hydrostatic transmission, 3-range
No. of Speeds	3 range (HST)	F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range
Max Travel Speed (Forward)	19.08 mph	F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph
Max Travel Speed (Reverse)	19.08 mph	F (2WD gear), DT (4WD gear): 13.1 mph; HST (4WD): 12.7 mph
Clutch	None (HST)	Dry type single stage
Differential Lock & Limited Slip Options	Rear differential lock	Rear differential lock standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Two-post foldable ROPS (factory certified) with retractable seat belt
Steering	Hydrostatic power steering	Integral power steering
Brakes	Wet, multi-disc	Mechanical wet disc type, pedals can be locked together
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	F (2WD gear): Tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	2865 lb (at 41.3 in tread, 2WD and 4WD models)
Drawbar Capacity	Not Published	730 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	F (2WD gear): 119.1 in; DT (4WD gear), HST (4WD): 116.3 in
Overall Width	56.7 in	55.1 in
Wheelbase	65.7 in	63.3 in
Ground Clearance	15 in	F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.5 in
Min. Turn Radius without Brakes	Not Published	F (2WD gear): 8.9 ft; DT (4WD gear), HST (4WD): 10.5 ft
Height to Top of ROPS	96.85 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,163.6 lb	F (2WD gear): 2557 lb; DT (4WD gear): 2734 lb; HST (4WD): 2778 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD)
R1 Agricultural - Front	8.0-16	F (2WD gear): 5-15 (7.5L-15 optional); DT (4WD gear), HST (4WD): 7.2-16
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	Not Published	F (2WD gear): 23x8.5-12; DT (4WD gear), HST (4WD): 25x8.5-14
R3 Turf - Rear	Not Published	13.6-16
R4 Industrial - Front	28x8.50-15	27x8.5-15 (4WD)
R4 Industrial - Rear	43x16.00-20	15-19.5 (4WD)
▶Loader & Attachments
Quick Attach Loader System	SSQA	LA525: 2-Lever Quick Coupler, no tools required to attach and detach loader
Loader Model	BBL400	LA525
Loader Lift Height	104 in	LA525: 94.3 in
Loader Lift Capacity (Full Height)	2,200 lb	LA525: 1131 lb
Loader Breakout Force	3,660 lb	LA525: 2462 lbf
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	24 months or 1500 hours (general)
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

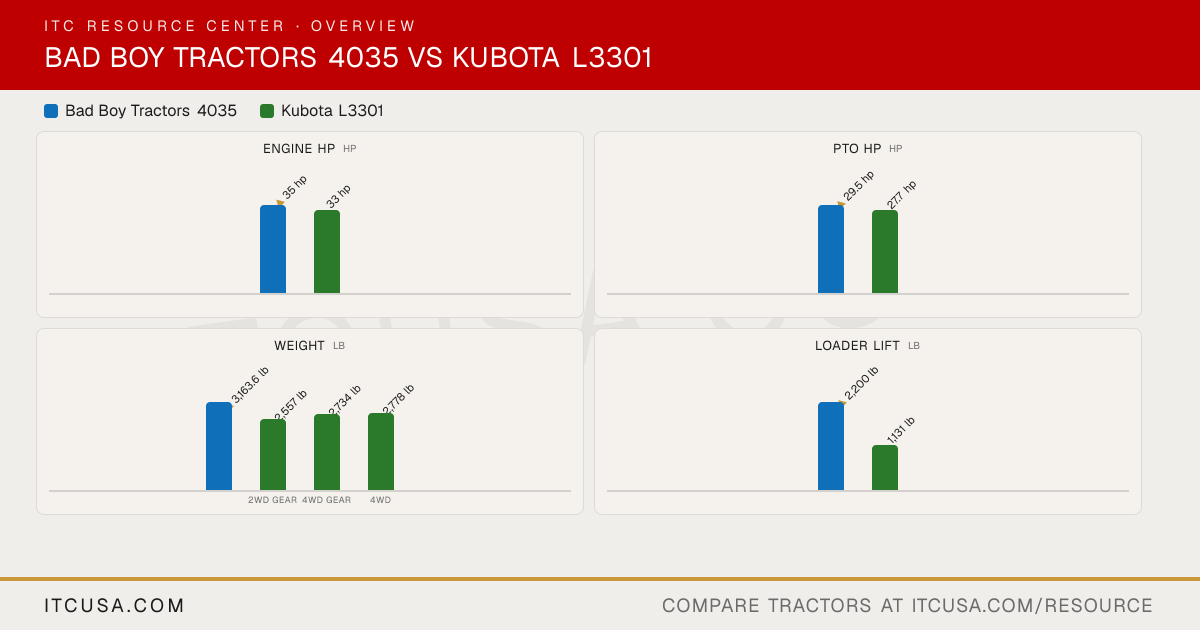

Bad Boy Tractors 4035 vs Kubota L3301: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the Kubota L3301?

The Bad Boy Tractors 4035 leads on engine hp at 35 hp hp, compared to 33 hp hp for the Kubota L3301.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Kubota L3301?

The Bad Boy Tractors 4035 leads on pto hp at 29.5 hp hp, compared to 27.7 hp hp for the Kubota L3301.

Which is heavier, the Bad Boy Tractors 4035 or the Kubota L3301?

The Bad Boy Tractors 4035 leads on weight at 3,163.6 lb lb, compared to 2,778 lb lb for the Kubota L3301.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Kubota L3301?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,131 lb lb for the Kubota L3301.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Kubota L3301?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the Kubota L3301.
