Kubota L3302 vs Kubota L3560HSTC

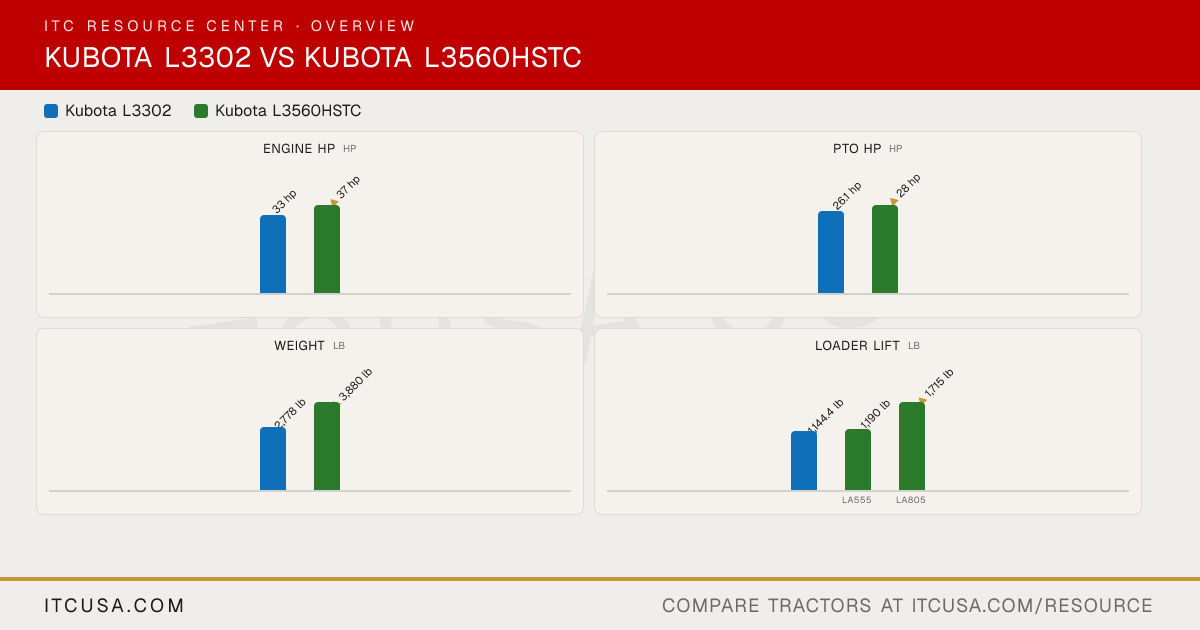

Across 8 measurable specs, the Kubota L3560HSTC leads 8 categories to 0. Machine pages: Kubota L3302 and Kubota L3560HSTC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3302	KubotaL3560HSTC

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1803-CR-E5	D1803-CR-E4-GL2
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2700 rpm	2600 rpm
Engine Power (Gross)	33 hp	37 hp
PTO Power	26.1 hp	28 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry type, single element	Dry paper, dual element
Fuel System	Direct injection	Electronic CRS (Common Rail System)
Alternator	45 A, 12 V	60 A, 12 V
▶Hydraulics
Pump Type	Not Published	Tandem pump - gear type
Implement Flow	6.3 gpm	8.1 gpm
Steering Flow	3.8 gpm	4.7 gpm
Total Hydraulic Flow	10.1 gpm (6.3 + 3.8, computed)	12.8 gpm
Overall Hydraulic Pump Flow	10.1 gpm (6.3 + 3.8, computed)	12.8 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	None standard (up to 3 optional)
No. of Optional Remote Valves	Not Published	Optional, up to 3 (double-acting valve or float detent valve options, any position)
▶Fluid Capacity
Fuel Tank Capacity	11.1 gal	13.5 gal
Coolant Capacity	6.3 qt	7.9 qt
Crankcase Capacity	7.1 qt	7.1 qt
Transmission / Hydraulic System Capacity	6.9 gal	11.1 gal
Front Axle Fluid Capacity	4.8 qt	6.9 qt
▶PTO & Hitch
PTO Type	Live independent PTO with hydraulic clutch	Live independent (hydraulic clutch)
PTO Rear	540 rpm	540 rpm @ 2476 engine rpm
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	SAE Category I	SAE Category 1
Hitch Lift Capacity	1998 lb	3,750 lb
Hitch Lift Capacity (at 24”)	1435 lb	2646 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission (3-range)	Hydrostatic
No. of Speeds	3-range	3-Range, 6 speeds (H-DS), infinitely variable in each
Max Travel Speed (Forward)	14.1 mph	16.5 mph
Max Travel Speed (Reverse)	12.7 mph	14.9 mph
Clutch	Not Applicable	Not Published
Differential Lock & Limited Slip Options	Rear differential lock, pedal operated	Rear differential lock, standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Integral type power steering	Hydrostatic power steering
Brakes	Mechanical, wet disc type	Wet disc type, mechanically activated
Seat Suspension & Adjustability	Suspension seat with fore/aft travel adjustment and suspension tension adjustment	Deluxe suspension seat with swivel (standard); Air-Ride seat (optional)
Front Axle Type	Cast-iron front axle	4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	730 lb	1,433 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	108.5 in (without 3-point hitch)	115.0 in (without 3-point hitch)
Overall Width	55.1 in	59.8 in
Wheelbase	63.4 in	71.1 in
Ground Clearance	13.4 in	13.5 in
Min. Turn Radius without Brakes	8.2 ft (with brake applied)	8.9 ft (with brake applied)
Height to Top of ROPS	91.7 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2778 lb	3880 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	7.2-16	7.0-16
R1 Agricultural - Rear	11.2-24	12.4-24
R3 Turf - Front	25X8.50-14	27x10.50-15
R3 Turf - Rear	13.6-16	41x18LL-16.1
R4 Industrial - Front	27X8.50-15	10-16.5
R4 Industrial - Rear	15-19.5	420/70-24
▶Loader & Attachments
Quick Attach Loader System	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))	LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Model	LA526	LA555 or LA805
Loader Lift Height	94.8 in	LA555: 96.4 in; LA805: 104.7 in
Loader Lift Capacity (Full Height)	1144.4 lb	LA555: 1190 lb; LA805: 1715 lb
Loader Breakout Force	Not Published	LA555: 2030 lb; LA805: 2549 lb (19.7 in forward of pivot pin)
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00

Find a Kubota dealer near you→

Kubota L3302 vs Kubota L3560HSTC: Quick Answers

Which has more horsepower, the Kubota L3302 or the Kubota L3560HSTC?

The Kubota L3560HSTC leads on engine hp at 37 hp hp, compared to 33 hp hp for the Kubota L3302.

Which has more PTO horsepower, the Kubota L3302 or the Kubota L3560HSTC?

The Kubota L3560HSTC leads on pto hp at 28 hp hp, compared to 26.1 hp hp for the Kubota L3302.

Which is heavier, the Kubota L3302 or the Kubota L3560HSTC?

The Kubota L3560HSTC leads on weight at 3,880 lb lb, compared to 2,778 lb lb for the Kubota L3302.

Which has more loader lift capacity, the Kubota L3302 or the Kubota L3560HSTC?

The Kubota L3560HSTC leads on loader lift at 1,715 lb lb, compared to 1,144.4 lb lb for the Kubota L3302.

Which has more three-point hitch lift capacity, the Kubota L3302 or the Kubota L3560HSTC?

The Kubota L3560HSTC leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,435 lb lb for the Kubota L3302.
