Kubota L3302 vs Kubota LX4020HSDC

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Kubota L3302, 4 to the Kubota LX4020HSDC. Machine pages: Kubota L3302 and Kubota LX4020HSDC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3302	KubotaLX4020HSDC

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1803-CR-E5	V1505-CR-TE5-D40Q3
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
No. of Cylinders	3	4
Displacement	111.4 in³	91.4 in³
Rated Engine Speed	2700 rpm	2700 rpm
Engine Power (Gross)	33 hp	39.8 hp
PTO Power	26.1 hp	31.2 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Pressurized radiator
Air Cleaner	Dry type, single element	6 in paper filter (with dual element)
Fuel System	Direct injection	Direct injection
Alternator	45 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Dual pump
Implement Flow	6.3 gpm	5.4 gpm
Steering Flow	3.8 gpm	4.1 gpm
Total Hydraulic Flow	10.1 gpm (6.3 + 3.8, computed)	9.5 gpm
Overall Hydraulic Pump Flow	10.1 gpm (6.3 + 3.8, computed)	9.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Not Published	Optional, up to 2
▶Fluid Capacity
Fuel Tank Capacity	11.1 gal	8.5 gal
Coolant Capacity	6.3 qt	5.7 qt
Crankcase Capacity	7.1 qt	5.0 qt
Transmission / Hydraulic System Capacity	6.9 gal	5.5 gal
Front Axle Fluid Capacity	4.8 qt	4.8 qt
▶PTO & Hitch
PTO Type	Live independent PTO with hydraulic clutch	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	2460 rpm
Category, 3-Point Hitch	SAE Category I	Category I
Hitch Lift Capacity	1998 lb	2535 lb
Hitch Lift Capacity (at 24”)	1435 lb	1962 lb
Lift Control Type	Position control	Position control valve
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission (3-range)	Hydrostatic transmission
No. of Speeds	3-range	3 ranges
Max Travel Speed (Forward)	14.1 mph	17.0 mph
Max Travel Speed (Reverse)	12.7 mph	13.0 mph
Clutch	Not Applicable	Not Published
Differential Lock & Limited Slip Options	Rear differential lock, pedal operated	Differential lock standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Integral type power steering	Hydrostatic power steering
Brakes	Mechanical, wet disc type	Multi-plate wet disk
Seat Suspension & Adjustability	Suspension seat with fore/aft travel adjustment and suspension tension adjustment	Seat Type: Deluxe; Seat Suspension: Adjustable
Front Axle Type	Cast-iron front axle	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	730 lb	1100 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	108.5 in (without 3-point hitch)	116.1 in
Overall Width	55.1 in	53.7 in
Wheelbase	63.4 in	66.7 in
Ground Clearance	13.4 in	8.9 in
Min. Turn Radius without Brakes	8.2 ft (with brake applied)	7.5 ft (with brake applied)
Height to Top of ROPS	91.7 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	85.6 in
▶Weight
Tractor Weight (Base)	2778 lb	2624 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front	7.2-16	180/85D12
R1 Agricultural - Rear	11.2-24	320/85D16
R3 Turf - Front	25X8.50-14	24X8.50-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	27X8.50-15	23x8.5-12 or 25x8.5-14
R4 Industrial - Rear	15-19.5	14-17.5 or 15-19.5
▶Loader & Attachments
Quick Attach Loader System	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))	Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model	LA526	LA545
Loader Lift Height	94.8 in	87.6 in
Loader Lift Capacity (Full Height)	1144.4 lb	1100 lb
Loader Breakout Force	Not Published	Not Published
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00	None tagged yet

Find a Kubota dealer near you→

Kubota L3302 vs Kubota LX4020HSDC: Quick Answers

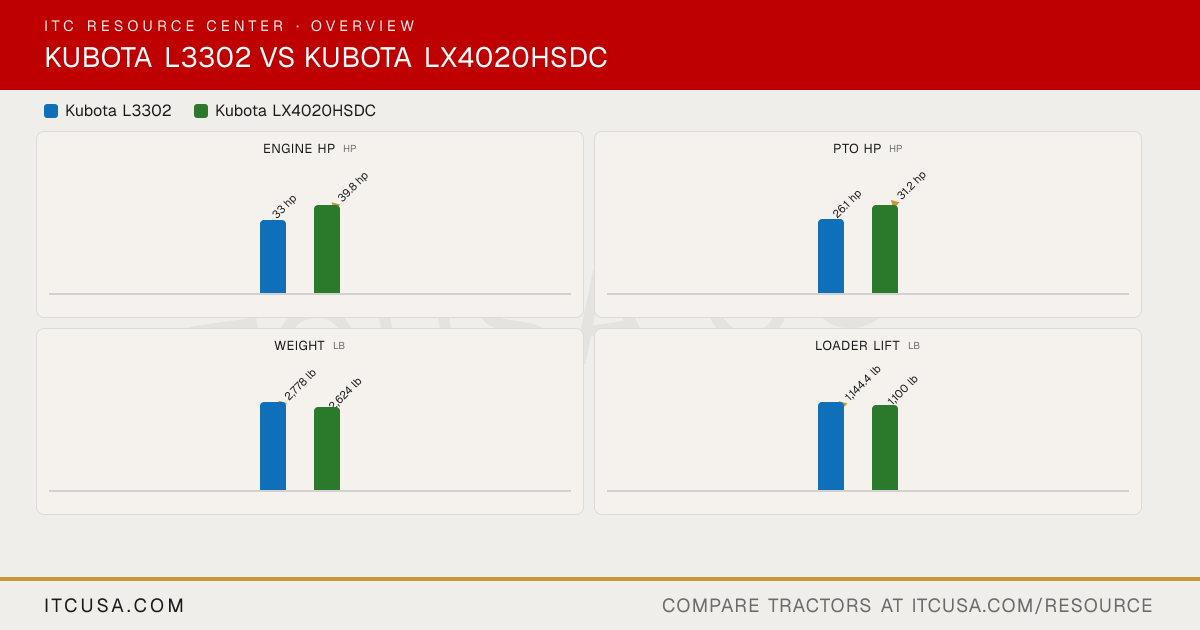

Which has more horsepower, the Kubota L3302 or the Kubota LX4020HSDC?

The Kubota LX4020HSDC leads on engine hp at 39.8 hp hp, compared to 33 hp hp for the Kubota L3302.

Which has more PTO horsepower, the Kubota L3302 or the Kubota LX4020HSDC?

The Kubota LX4020HSDC leads on pto hp at 31.2 hp hp, compared to 26.1 hp hp for the Kubota L3302.

Which is heavier, the Kubota L3302 or the Kubota LX4020HSDC?

The Kubota L3302 leads on weight at 2,778 lb lb, compared to 2,624 lb lb for the Kubota LX4020HSDC.

Which has more loader lift capacity, the Kubota L3302 or the Kubota LX4020HSDC?

The Kubota L3302 leads on loader lift at 1,144.4 lb lb, compared to 1,100 lb lb for the Kubota LX4020HSDC.

Which has more three-point hitch lift capacity, the Kubota L3302 or the Kubota LX4020HSDC?

The Kubota LX4020HSDC leads on 3-pt lift (24 in) at 1,962 lb lb, compared to 1,435 lb lb for the Kubota L3302.
