Kubota L3302 vs Massey Ferguson 1533

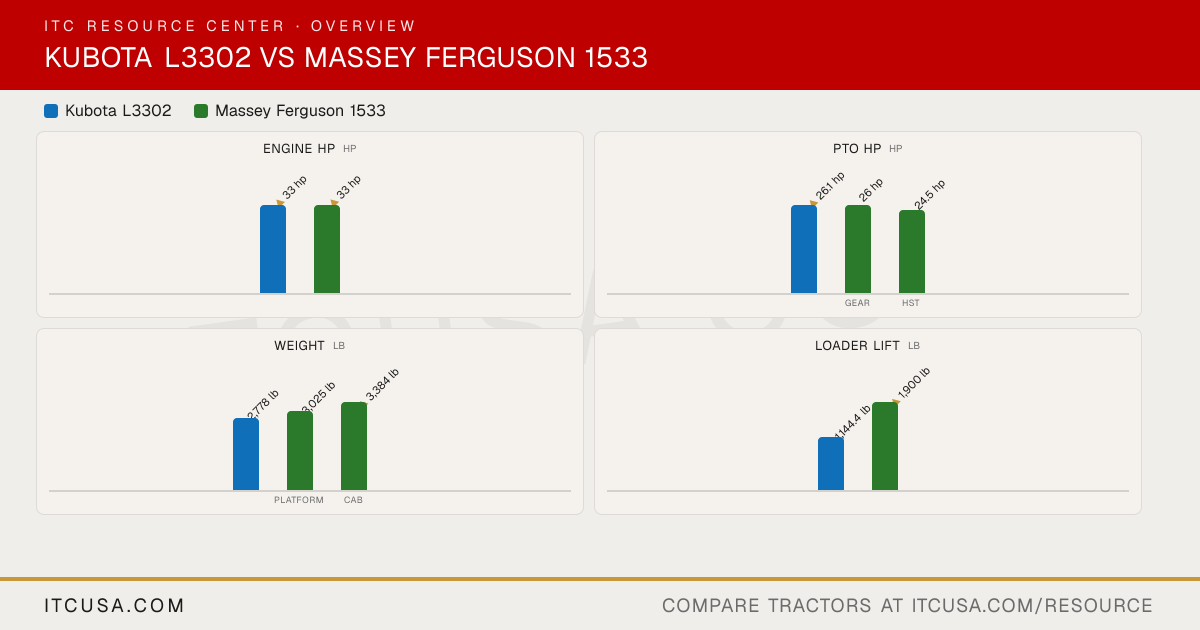

Across 7 measurable specs, the Massey Ferguson 1533 leads 5 categories to 1 (1 tied). Machine pages: Kubota L3302 and Massey Ferguson 1533.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3302	Massey Ferguson1533

▶Engine
Engine Manufacturer	Kubota	Iseki
Engine Model	D1803-CR-E5	Not Published
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	3-cylinder liquid-cooled diesel
No. of Cylinders	3	3
Displacement	111.4 in³	91.4 in³
Rated Engine Speed	2700 rpm	2600 rpm
Engine Power (Gross)	33 hp	33 hp
PTO Power	26.1 hp	Gear: 26 hp; HST: 24.5 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry type, single element	Dry
Fuel System	Direct injection	Not Published
Alternator	45 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	6.3 gpm	9.1 gpm
Steering Flow	3.8 gpm	SynchroShuttle: 4.9 gpm; HST and PowerShuttle: 6 gpm
Total Hydraulic Flow	10.1 gpm (6.3 + 3.8, computed)	SynchroShuttle: 14.0 gpm; HST and PowerShuttle: 15.1 gpm
Overall Hydraulic Pump Flow	10.1 gpm (6.3 + 3.8, computed)	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	9.1 gpm
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	2 spool optional
▶Fluid Capacity
Fuel Tank Capacity	11.1 gal	10.6 gal
Coolant Capacity	6.3 qt	7.1 qt
Crankcase Capacity	7.1 qt	5 qt
Transmission / Hydraulic System Capacity	6.9 gal	32.8 qt
Front Axle Fluid Capacity	4.8 qt	7.9 qt
▶PTO & Hitch
PTO Type	Live independent PTO with hydraulic clutch	Independent, electro-hydraulic control
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional, 2000 rpm
Category, 3-Point Hitch	SAE Category I	Category I
Hitch Lift Capacity	1998 lb	2,800 lb
Hitch Lift Capacity (at 24”)	1435 lb	Not Published
Lift Control Type	Position control	Position control with rate of drop control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission (3-range)	8x8 SynchroShuttle (platform only), 12x12 PowerShuttle, or 3-range hydrostatic with cruise (platform only)
No. of Speeds	3-range	Not Published
Max Travel Speed (Forward)	14.1 mph	Not Published
Max Travel Speed (Reverse)	12.7 mph	Not Published
Clutch	Not Applicable	Wet multi-disc (PowerShuttle)
Differential Lock & Limited Slip Options	Rear differential lock, pedal operated	Not Published
▶Chassis, Steering & Controls
Frame Type	Not Published	Semi-flat isolated platform, folding ROPS
Steering	Integral type power steering	Power steering
Brakes	Mechanical, wet disc type	Wet disc
Seat Suspension & Adjustability	Suspension seat with fore/aft travel adjustment and suspension tension adjustment	Adjustable suspension seat with retractable seat belt and adjustable armrest
Front Axle Type	Cast-iron front axle	4WD front axle, push-pull engagement lever
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	730 lb	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	108.5 in (without 3-point hitch)	121.0 in
Overall Width	55.1 in	62.0 in
Wheelbase	63.4 in	70.0 in
Ground Clearance	13.4 in	14.0 in
Min. Turn Radius without Brakes	8.2 ft (with brake applied)	Not Published
Height to Top of ROPS	91.7 in	87.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2778 lb	Platform: 3,025 lb; Cab: 3,384 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear)
R1 Agricultural - Front	7.2-16	8-16
R1 Agricultural - Rear	11.2-24	12.4-24 (13.6-24 optional)
R3 Turf - Front	25X8.50-14	27x8.50-15 (LSW305 R343 optional)
R3 Turf - Rear	13.6-16	41x14.00-20 (LSW610 R470 optional)
R4 Industrial - Front	27X8.50-15	10-16.5 or 25x8.5-14
R4 Industrial - Rear	15-19.5	14.9-24 or 15x19.5
▶Loader & Attachments
Quick Attach Loader System	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))	DL120: pin-type or skid-steer quick attach
Loader Model	LA526	DL120
Loader Lift Height	94.8 in	DL120: 102 in
Loader Lift Capacity (Full Height)	1144.4 lb	DL120: 1,900 lb
Loader Breakout Force	Not Published	Not Published
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	2-year/2,000-hour all-inclusive; 3-year/2,000-hour engine and powertrain
▶ITC Company Accessories
Accessories that fit	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00	None tagged yet

Find a Kubota dealer near you→Find a dealer near you→

Kubota L3302 vs Massey Ferguson 1533: Quick Answers

Which has more horsepower, the Kubota L3302 or the Massey Ferguson 1533?

They are effectively tied: both machines are rated at 33 hp hp for engine hp.

Which has more PTO horsepower, the Kubota L3302 or the Massey Ferguson 1533?

The Kubota L3302 leads on pto hp at 26.1 hp hp, compared to 26 hp hp for the Massey Ferguson 1533.

Which is heavier, the Kubota L3302 or the Massey Ferguson 1533?

The Massey Ferguson 1533 leads on weight at 3,384 lb lb, compared to 2,778 lb lb for the Kubota L3302.

Which has more loader lift capacity, the Kubota L3302 or the Massey Ferguson 1533?

The Massey Ferguson 1533 leads on loader lift at 1,900 lb lb, compared to 1,144.4 lb lb for the Kubota L3302.

Which has more three-point hitch lift capacity, the Kubota L3302 or the Massey Ferguson 1533?

The Massey Ferguson 1533 leads on 3-pt lift (24 in) at 2,800 lb lb, compared to 1,435 lb lb for the Kubota L3302.
