Kubota L3302DT vs Kubota L3902

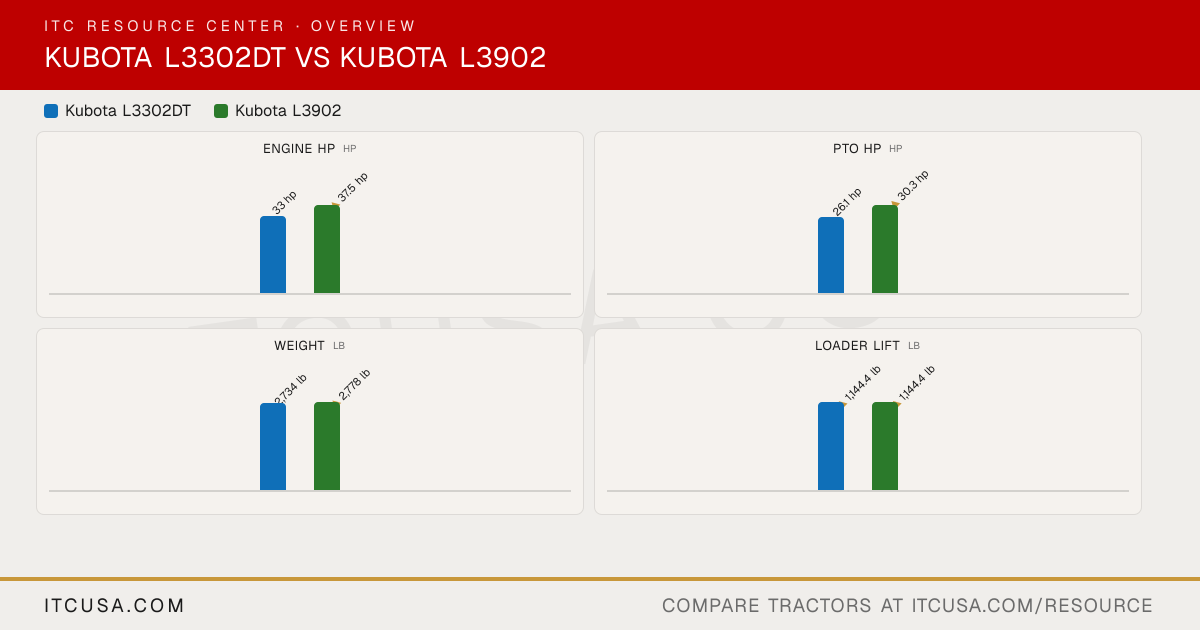

Across 8 measurable specs, the Kubota L3902 leads 4 categories to 0 (4 tied). Machine pages: Kubota L3302DT and Kubota L3902.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3302DT	KubotaL3902

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1803-CR-E5	D1803-CR-E5
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2700 rpm	2700 rpm
Engine Power (Gross)	33 hp	37.5 hp
PTO Power	26.1 hp	30.3 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry type, single element	Dry type, single element
Fuel System	Direct injection	Direct injection
Alternator	45 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	6.3 gpm	6.3 gpm
Steering Flow	3.8 gpm	3.8 gpm
Total Hydraulic Flow	10.1 gpm (6.3 + 3.8, computed)	10.1 gpm (6.3 + 3.8, computed)
Overall Hydraulic Pump Flow	10.1 gpm (6.3 + 3.8, computed)	10.1 gpm (6.3 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	11.1 gal	11.1 gal
Coolant Capacity	6.3 qt	6.3 qt
Crankcase Capacity	7.1 qt	7.1 qt
Transmission / Hydraulic System Capacity	7.5 gal	6.9 gal
Front Axle Fluid Capacity	4.8 qt	4.8 qt
▶PTO & Hitch
PTO Type	Transmission driven with overrunning clutch	Live independent PTO with hydraulic clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	SAE Category I	SAE Category I
Hitch Lift Capacity	1998 lb	1998 lb
Hitch Lift Capacity (at 24”)	1435 lb	1435 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Gear shift with synchronized shuttle	Hydrostatic transmission (3-range)
No. of Speeds	8 forward, 8 reverse	3-range
Max Travel Speed (Forward)	13.2 mph	14.1 mph
Max Travel Speed (Reverse)	13.2 mph	12.7 mph
Clutch	Dry type single stage	Not Applicable
Differential Lock & Limited Slip Options	Rear differential lock, pedal operated	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Integral type power steering	Integral type power steering
Brakes	Mechanical, wet disc type	Mechanical, wet disc type
Seat Suspension & Adjustability	Suspension seat with fore/aft travel adjustment and suspension tension adjustment	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	Cast-iron front axle	Cast-iron front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	730 lb	730 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	108.5 in (without 3-point hitch)	108.5 in (without 3-point hitch)
Overall Width	55.1 in	55.1 in
Wheelbase	63.4 in	63.4 in
Ground Clearance	13.4 in	13.4 in
Min. Turn Radius without Brakes	8.2 ft (with brake applied)	8.2 ft (with brake applied)
Height to Top of ROPS	91.7 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2734 lb	2778 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	7.2-16	7.2-16
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25X8.50-14	25X8.50-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	27X8.50-15	27X8.50-15
R4 Industrial - Rear	15-19.5	15-19.5
▶Loader & Attachments
Quick Attach Loader System	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model	LA526	LA526
Loader Lift Height	94.8 in	94.8 in
Loader Lift Capacity (Full Height)	1144.4 lb	1144.4 lb
Loader Breakout Force	Not Published	Not Published
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00

Find a Kubota dealer near you→

Kubota L3302DT vs Kubota L3902: Quick Answers

Which has more horsepower, the Kubota L3302DT or the Kubota L3902?

The Kubota L3902 leads on engine hp at 37.5 hp hp, compared to 33 hp hp for the Kubota L3302DT.

Which has more PTO horsepower, the Kubota L3302DT or the Kubota L3902?

The Kubota L3902 leads on pto hp at 30.3 hp hp, compared to 26.1 hp hp for the Kubota L3302DT.

Which is heavier, the Kubota L3302DT or the Kubota L3902?

The Kubota L3902 leads on weight at 2,778 lb lb, compared to 2,734 lb lb for the Kubota L3302DT.

Which has more loader lift capacity, the Kubota L3302DT or the Kubota L3902?

They are effectively tied: both machines are rated at 1,144.4 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Kubota L3302DT or the Kubota L3902?

They are effectively tied: both machines are rated at 1,435 lb lb for 3-pt lift (24 in).
