Bad Boy Tractors 4035 Cab vs Kubota L3902

Across 8 measurable specs, the Bad Boy Tractors 4035 Cab leads 6 categories to 2. Machine pages: Bad Boy Tractors 4035 Cab and Kubota L3902.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

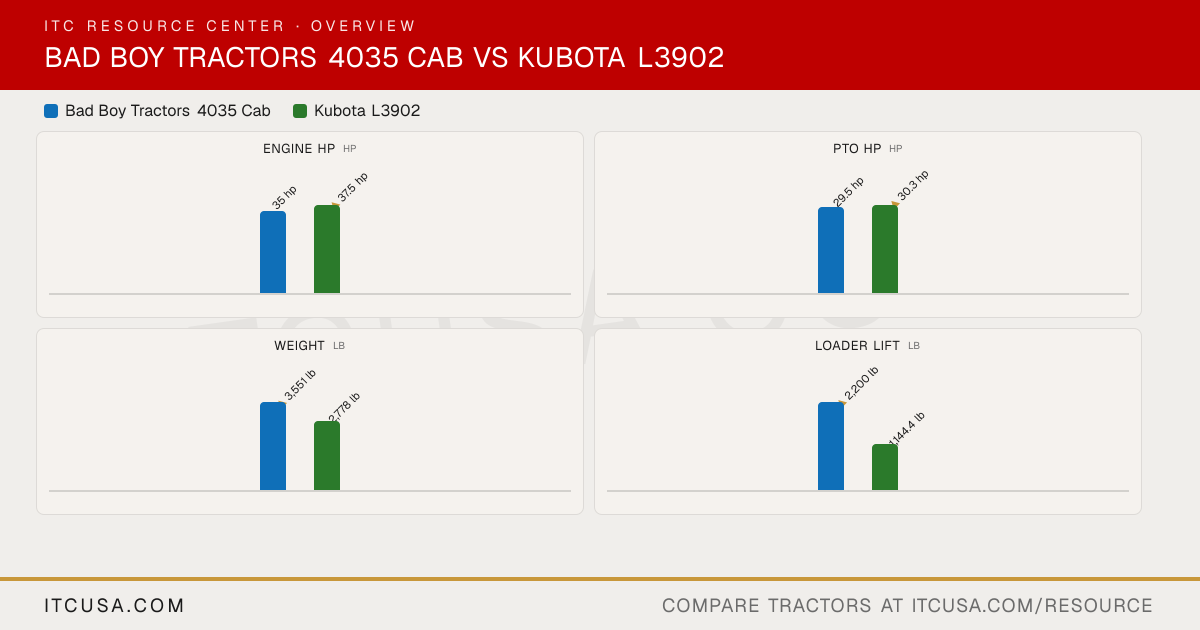

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	KubotaL3902

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A1700N4-BUTC_4	D1803-CR-E5
Engine Type	Vertical, 4-stroke, water-cooled diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	3	3
Displacement	104.7 in³	111.4 in³
Rated Engine Speed	2600 rpm	2700 rpm
Engine Power (Gross)	35 hp	37.5 hp
PTO Power	29.5 hp	30.3 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Dry type, single element
Fuel System	Not Published	Direct injection
Alternator	50 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	6.3 gpm
Steering Flow	4.4 gpm	3.8 gpm
Total Hydraulic Flow	12.6 gpm	10.1 gpm (6.3 + 3.8, computed)
Overall Hydraulic Pump Flow	12.6 gpm	10.1 gpm (6.3 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	11.1 gal
Coolant Capacity	1.32 gal	6.3 qt
Crankcase Capacity	1.14 gal	7.1 qt
Transmission / Hydraulic System Capacity	9.77 gal	6.9 gal
Front Axle Fluid Capacity	1.69 gal	4.8 qt
▶PTO & Hitch
PTO Type	Independent	Live independent PTO with hydraulic clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	SAE Category I
Hitch Lift Capacity	3,306.9 lb	1998 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1435 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Hydrostatic transmission (3-range)
No. of Speeds	3 range (HST)	3-range
Max Travel Speed (Forward)	18.21 mph	14.1 mph
Max Travel Speed (Reverse)	18.21 mph	12.7 mph
Clutch	None (HST)	Not Applicable
Differential Lock & Limited Slip Options	Rear differential lock	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Integral type power steering
Brakes	Wet, multi-disc	Mechanical, wet disc type
Seat Suspension & Adjustability	Heated leather seat (cab)	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	Selectable 4WD	Cast-iron front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	730 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	108.5 in (without 3-point hitch)
Overall Width	56.3 in	55.1 in
Wheelbase	65.7 in	63.4 in
Ground Clearance	13.19 in	13.4 in
Min. Turn Radius without Brakes	Not Published	8.2 ft (with brake applied)
Height to Top of ROPS	Not Published	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	2778 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	7-16	7.2-16
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	Not Published	25X8.50-14
R3 Turf - Rear	Not Published	13.6-16
R4 Industrial - Front	28x8.50-15	27X8.50-15
R4 Industrial - Rear	43x16.00-20	15-19.5
▶Loader & Attachments
Quick Attach Loader System	SSQA	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model	BBL400	LA526
Loader Lift Height	104 in	94.8 in
Loader Lift Capacity (Full Height)	2,200 lb	1144.4 lb
Loader Breakout Force	3,660 lb	Not Published
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 4035 Cab vs Kubota L3902: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Kubota L3902?

The Kubota L3902 leads on engine hp at 37.5 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Kubota L3902?

The Kubota L3902 leads on pto hp at 30.3 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Kubota L3902?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 2,778 lb lb for the Kubota L3902.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Kubota L3902?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,144.4 lb lb for the Kubota L3902.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Kubota L3902?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,435 lb lb for the Kubota L3902.
