| Engine Manufacturer | Kubota | Kubota |
|---|
| Engine Model | Not Published | D1803-CR-E4-GL2 |
|---|
| Engine Type | Indirect injection, liquid-cooled diesel | Naturally aspirated, multi-valve, liquid-cooled diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 111.4 in³ | 111.4 in³ |
|---|
| Rated Engine Speed | 2700 rpm | 2600 rpm |
|---|

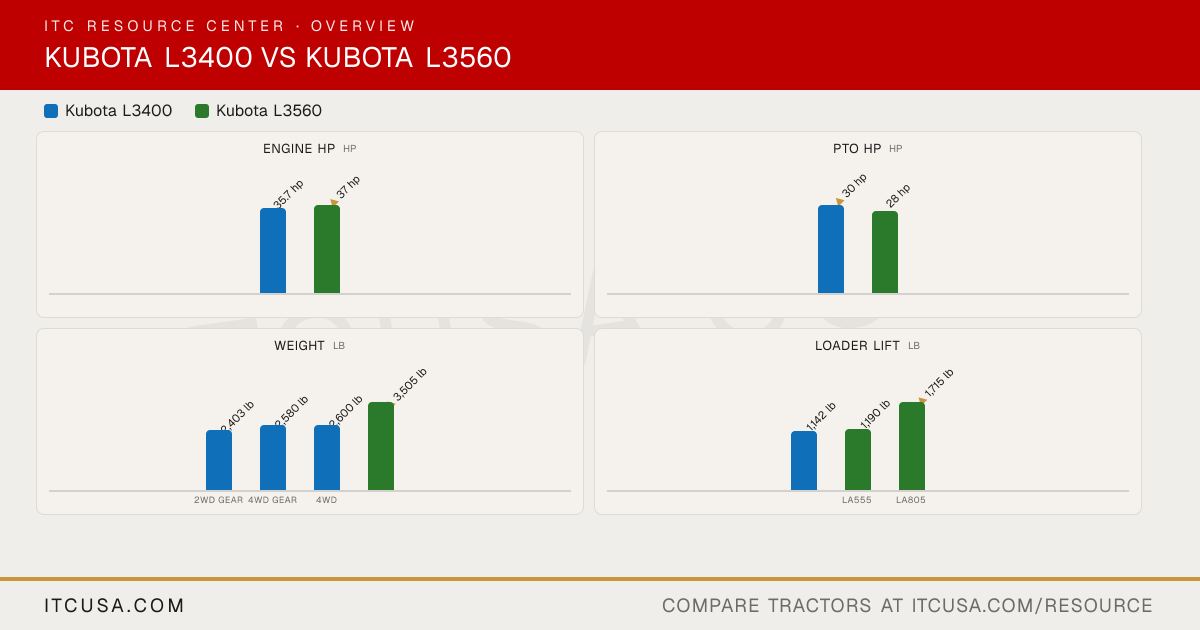

| Engine Power (Gross) | 35.7 hp | 37 hp |
|---|
| PTO Power | F (2WD gear), DT (4WD gear): 30 hp; HST (4WD): 28.5 hp | 28 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Not Published | Dry paper, dual element |
|---|
| Fuel System | Indirect injection | Electronic CRS (Common Rail System) |
|---|
| Alternator | 40 A, 12 V | 40 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Tandem pump - gear type |
|---|
| Implement Flow | 6.3 gpm | 8.1 gpm |
|---|
| Steering Flow | 3.8 gpm | 4.7 gpm |
|---|
| Total Hydraulic Flow | 10.1 gpm (6.3 + 3.8, computed) | 12.8 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | 12.8 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | None standard (up to 3 optional) |
|---|
| No. of Optional Remote Valves | Up to 3 | Optional, up to 3: double-acting valve or float detent valve, any position |
|---|
|
|---|
| Fuel Tank Capacity | 9.0 gal | 13.5 gal |
|---|
| Coolant Capacity | Not Published | 7.9 qt |
|---|
| Crankcase Capacity | Not Published | 7.1 qt |
|---|
| Transmission / Hydraulic System Capacity | F (2WD): 7.1 gal; DT (4WD): 7.3 gal; HST (4WD): 6.2 gal | 11.1 gal |
|---|
| Front Axle Fluid Capacity | 4.8 qt | 6.9 qt |
|---|
|
|---|
| PTO Type | F (2WD gear), DT (4WD gear): live-continuous running; HST (4WD): live-continuous with overrunning clutch | Live independent (hydraulic clutch) |
|---|
| PTO Rear | 540 rpm | DT, GST: 540 rpm @ 2550 engine rpm; HST, HSTC: 540 rpm @ 2476 engine rpm |
|---|
| Mid-PTO Availability | Not Published | Optional |
|---|
| Category, 3-Point Hitch | Category I | SAE Category I |
|---|
| Hitch Lift Capacity | 1,998 lb | 3,750 lb |
|---|
| Hitch Lift Capacity (at 24”) | 1,435 lb | 2,646 lb |
|---|
| Lift Control Type | Position control | Position control |
|---|
|
|---|
| Transmission Type | F (2WD gear), DT (4WD gear): sliding gear and constant mesh, 8F/4R; HST (4WD): hydrostatic transmission, 3-range | Hydrostatic |
|---|
| No. of Speeds | F (2WD gear), DT (4WD gear): 8F/4R; HST (4WD): 3-range | 3-Range, 6 speeds (H-DS), infinitely variable in each |
|---|
| Max Travel Speed (Forward) | F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph | 16.5 mph |
|---|
| Max Travel Speed (Reverse) | F (2WD gear), DT (4WD gear): 4.7 mph; HST (4WD): 12.7 mph | 14.9 mph |
|---|
| Clutch | F (2WD gear), DT (4WD gear): dry-type, dual-stage; HST (4WD): dry-type, single-stage | Not Published |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock standard | Rear differential lock, standard |
|---|
|
|---|
| Frame Type | Foldable ROPS (standard on all models) | Not Published |
|---|
| Steering | Integral type power steering | Hydrostatic power steering |
|---|
| Brakes | Wet disc type | Wet disc type, mechanically activated |
|---|
| Seat Suspension & Adjustability | Not Published | Deluxe suspension seat with swivel (standard); Air-Ride seat (optional) |
|---|
| Front Axle Type | 4WD: Bevel gear front axle | 4WD: Bevel gear front axle, non-adjustable tread spacing |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | 1,433 lb |
|---|
|
|---|
| Overall Width | 51.4 in | 59.8 in |
|---|
| Wheelbase | 63.3 in | 71.1 in |
|---|
| Ground Clearance | F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.4 in | 13.5 in |
|---|
| Min. Turn Radius without Brakes | F (2WD gear): 7.9 ft; DT (4WD gear), HST (4WD): 8.2 ft (with brake applied) | 8.9 ft (with brake applied) |
|---|
| Height to Top of ROPS | 85.0 in | 97.2 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
| Overall Length | F (2WD gear): 110.6 in; DT (4WD gear), HST (4WD): 106.5 in (without 3-point hitch) | 115.0 in (without 3-point hitch) |
|---|
|
|---|
| Tractor Weight (Base) | F (2WD gear): 2,403 lb; DT (4WD gear): 2,580 lb; HST (4WD): 2,600 lb | 3,505 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | AG standard; turf and industrial optional | R1 Agricultural; R3 Turf; R4 Industrial |
|---|
| R1 Agricultural - Front | F (2WD gear): 5-15; DT (4WD gear), HST (4WD): 7-16 | 7.2-16 |
|---|
| R1 Agricultural - Rear | 11.2-24 | 12.4-24 |
|---|
| R3 Turf - Front | 25x8.50-14 (4WD) | 27x10.50-15 |
|---|
| R3 Turf - Rear | 13.6-16 | 41x18LL-16.1 |
|---|
| R4 Industrial - Front | 27x8.50-15 (4WD) | 10-16.5 |
|---|
| R4 Industrial - Rear | 15-19.5 R4 (4WD) | 420/70-24 |
|---|
|
|---|
| Quick Attach Loader System | LA463: quick attach/detach loader (mounting pins and hose couplers from the seat); skid steer-type quick coupler optional | LA555: 2-lever mechanical quick coupler (standard); LA805: 2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional) |
|---|
| Loader Model | LA463 | LA555 or LA805 |
|---|
| Loader Lift Height | LA463: 95.3 in (at pivot pin) | LA555: 96.4 in; LA805: 104.7 in |
|---|
| Loader Lift Capacity (Full Height) | LA463: 1,142 lb (at pivot pin) | LA555: 1,190 lb; LA805: 1,715 lb (at pivot pin) |
|---|
| Loader Breakout Force | Not Published | LA555: 2,030 lb; LA805: 2,549 lb |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours |
|---|
|
|---|
