Kubota L3560GST vs Kubota L4060
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the Kubota L4060 leads 6 categories to 0 (3 tied). Machine pages: Kubota L3560GST and Kubota L4060.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

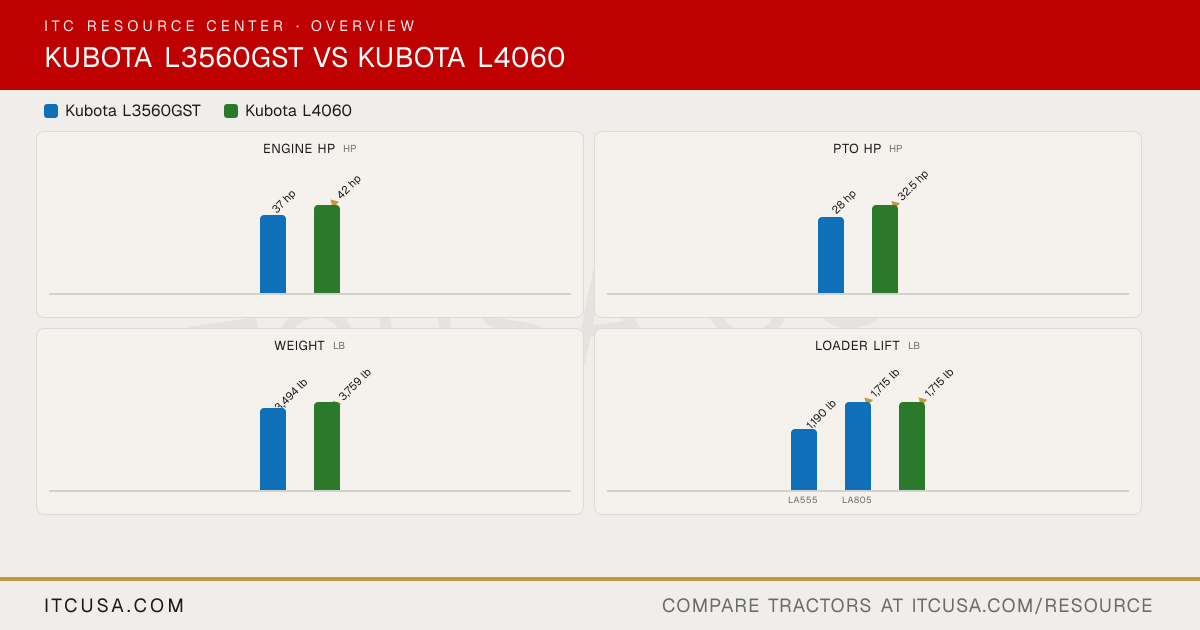

Category Verdict
| Spec | Kubota L3560GST | Kubota L4060 |
|---|---|---|
| Engine HP (hp) | 37 hp | ▲ 42 hp |
| PTO HP (hp) | 28 hp | ▲ 32.5 hp |
| Weight (lb) | 3,494 lb | ▲ 3,759 lb |
| Loader Lift (lb) | 1,715 lb | 1,715 lb |
| 3-Pt Lift (24 in) (lb) | 2,646 lb | ▲ 2,756 lb |
| Lift Height (in) | 104.7 in | 104.7 in |
| Breakout Force (lbf) | 2,549 lbf | 2,549 lbf |
| Hydraulic Flow (gpm) | 12.8 gpm | ▲ 14.1 gpm |
| Travel Speed (mph) | 16.5 mph | ▲ 16.8 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaL3560GST | KubotaL4060 |
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|---|---|
| Engine Model | D1803-CR-E4-GL1 | V2403-CR-E4-GL2 |
| Engine Type | Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated | Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated |
| No. of Cylinders | 3 | 4 |
| Displacement | 111.4 in³ | 148.5 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 37 hp | 42 hp |
| PTO Power | 28 hp | 32.5 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dry paper, dual element | Dry paper, dual element |
| Fuel System | Electronic CRS (Common Rail System) | Electronic CRS (Common Rail System) |
| Alternator | 40 A, 12 V | 40 A, 12 V |
Kubota L3560GST vs Kubota L4060: Quick Answers
- Which has more horsepower, the Kubota L3560GST or the Kubota L4060?
- The Kubota L4060 leads on engine hp at 42 hp hp, compared to 37 hp hp for the Kubota L3560GST.
- Which has more PTO horsepower, the Kubota L3560GST or the Kubota L4060?
- The Kubota L4060 leads on pto hp at 32.5 hp hp, compared to 28 hp hp for the Kubota L3560GST.
- Which is heavier, the Kubota L3560GST or the Kubota L4060?
- The Kubota L4060 leads on weight at 3,759 lb lb, compared to 3,494 lb lb for the Kubota L3560GST.
- Which has more loader lift capacity, the Kubota L3560GST or the Kubota L4060?
- They are effectively tied: both machines are rated at 1,715 lb lb for loader lift.
- Which has more three-point hitch lift capacity, the Kubota L3560GST or the Kubota L4060?
- The Kubota L4060 leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,646 lb lb for the Kubota L3560GST.
