Bad Boy Tractors 4035 Cab vs Kubota L3560GST

Across 9 measurable specs, the Bad Boy Tractors 4035 Cab leads 5 categories to 4. Machine pages: Bad Boy Tractors 4035 Cab and Kubota L3560GST.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

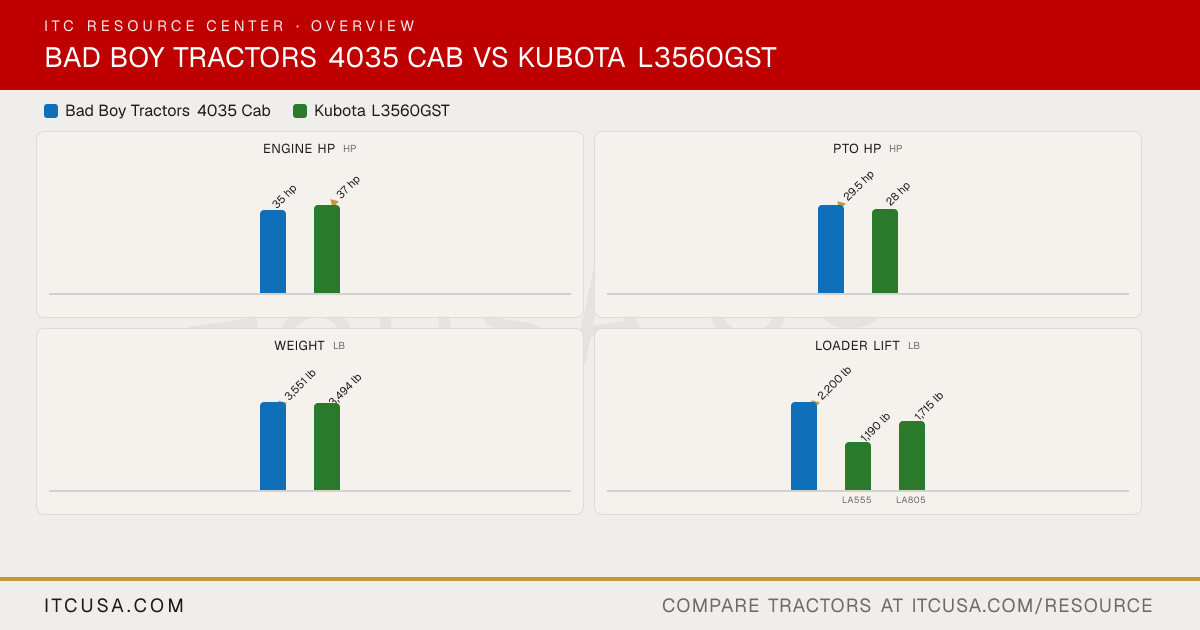

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	KubotaL3560GST

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A1700N4-BUTC_4	D1803-CR-E4-GL1
Engine Type	Vertical, 4-stroke, water-cooled diesel	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
No. of Cylinders	3	3
Displacement	104.7 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	37 hp
PTO Power	29.5 hp	28 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry paper, dual element
Fuel System	Not Published	Electronic CRS (Common Rail System)
Alternator	50 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Not Published	Tandem pump - gear type
Implement Flow	8.2 gpm	8.1 gpm
Steering Flow	4.4 gpm	4.7 gpm
Total Hydraulic Flow	12.6 gpm	12.8 gpm
Overall Hydraulic Pump Flow	12.6 gpm	12.8 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	None standard (up to 3 optional)
No. of Optional Remote Valves	Up to 2	Optional, up to 3 (double-acting valve or float detent valve options, any position)
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	13.5 gal
Coolant Capacity	1.32 gal	7.9 qt
Crankcase Capacity	1.14 gal	7.1 qt
Transmission / Hydraulic System Capacity	9.77 gal	11.1 gal
Front Axle Fluid Capacity	1.69 gal	6.9 qt
▶PTO & Hitch
PTO Type	Independent	Live independent (hydraulic clutch)
PTO Rear	540 rpm	540 rpm @ 2476 engine rpm
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category 1	SAE Category 1
Hitch Lift Capacity	3,306.9 lb	3,750 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2646 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Hydrostatic
No. of Speeds	3 range (HST)	3-Range, 6 speeds (H-DS), infinitely variable in each
Max Travel Speed (Forward)	18.21 mph	16.5 mph
Max Travel Speed (Reverse)	18.21 mph	15.8 mph
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Rear differential lock, standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet disc type, mechanically activated
Seat Suspension & Adjustability	Heated leather seat (cab)	Deluxe suspension seat with swivel (standard); Air-Ride seat (optional)
Front Axle Type	Selectable 4WD	4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,433 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	115.0 in (without 3-point hitch)
Overall Width	56.3 in	59.8 in
Wheelbase	65.7 in	71.1 in
Ground Clearance	13.19 in	13.5 in
Min. Turn Radius without Brakes	Not Published	8.9 ft (with brake applied)
Height to Top of ROPS	Not Published	97.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	3494 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	7-16	7.0-16
R1 Agricultural - Rear	11.2-24	12.4-24
R3 Turf - Front	Not Published	27x10.50-15
R3 Turf - Rear	Not Published	41x18LL-16.1
R4 Industrial - Front	28x8.50-15	10-16.5
R4 Industrial - Rear	43x16.00-20	420/70-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Model	BBL400	LA555 or LA805
Loader Lift Height	104 in	LA555: 96.4 in; LA805: 104.7 in
Loader Lift Capacity (Full Height)	2,200 lb	LA555: 1190 lb; LA805: 1715 lb
Loader Breakout Force	3,660 lb	LA555: 2030 lb; LA805: 2549 lb (19.7 in forward of pivot pin)
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 4035 Cab vs Kubota L3560GST: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Kubota L3560GST?

The Kubota L3560GST leads on engine hp at 37 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Kubota L3560GST?

The Bad Boy Tractors 4035 Cab leads on pto hp at 29.5 hp hp, compared to 28 hp hp for the Kubota L3560GST.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Kubota L3560GST?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 3,494 lb lb for the Kubota L3560GST.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Kubota L3560GST?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,715 lb lb for the Kubota L3560GST.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Kubota L3560GST?

The Kubota L3560GST leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035 Cab.
