Kubota L3560LE vs Kubota L3902

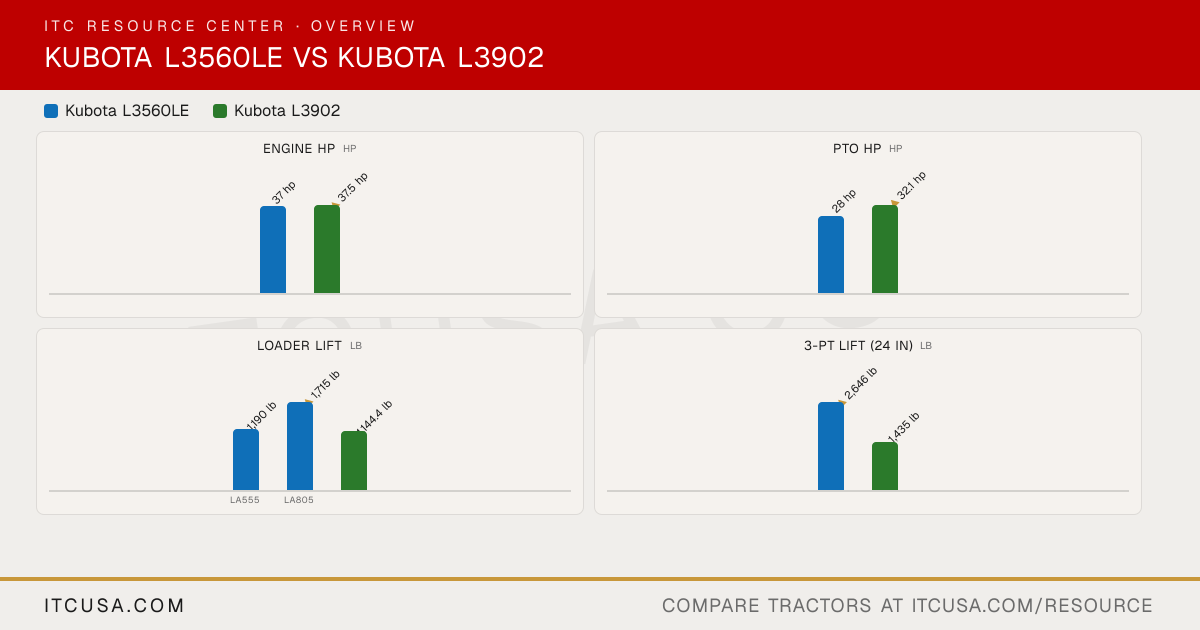

Across 8 measurable specs, the Kubota L3560LE leads 6 categories to 2. Machine pages: Kubota L3560LE and Kubota L3902.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3560LE	KubotaL3902

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	D1803-CR-E4-GL2	D1803-CR-E5
Engine Type	Naturally aspirated, multi-valve, liquid-cooled diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2600 rpm	2700 rpm
Engine Power (Gross)	37 hp	37.5 hp
PTO Power	28 hp	30.3 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Dry paper, dual element	Dry type, single element
Fuel System	Electronic CRS (Common Rail System)	Direct injection
Alternator	ROPS: 40 A, 12 V; Cab: 60 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Tandem pump - gear type	Not Published
Implement Flow	8.1 gpm	6.3 gpm
Steering Flow	4.7 gpm	3.8 gpm
Total Hydraulic Flow	12.8 gpm	10.1 gpm (6.3 + 3.8, computed)
Overall Hydraulic Pump Flow	12.8 gpm	10.1 gpm (6.3 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None standard (up to 3 optional)	Not Published
No. of Optional Remote Valves	Optional, up to 3	Not Published
▶Fluid Capacity
Fuel Tank Capacity	13.5 gal	11.1 gal
Coolant Capacity	7.9 qt	6.3 qt
Crankcase Capacity	7.1 qt	7.1 qt
Transmission / Hydraulic System Capacity	11.1 gal	6.9 gal
Front Axle Fluid Capacity	6.9 qt	4.8 qt
▶PTO & Hitch
PTO Type	Independent	Live independent PTO with hydraulic clutch
PTO Rear	1 speed: 540 rpm	540 rpm
Mid-PTO Availability	Optional	Not Published
Category, 3-Point Hitch	Category I	SAE Category I
Hitch Lift Capacity	3,748 lb	1,998 lb
Hitch Lift Capacity (at 24”)	2,646 lb	1,435 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST Plus)	Hydrostatic transmission (3-range)
No. of Speeds	3 ranges	3-range
Max Travel Speed (Forward)	16.5 mph	14.1 mph
Max Travel Speed (Reverse)	14.9 mph	12.7 mph
Clutch	N/A	Not Applicable
Differential Lock & Limited Slip Options	Rear differential lock, standard	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Integral type power steering
Brakes	Wet disc type	Mechanical, wet disc type
Seat Suspension & Adjustability	Deluxe suspension seat (standard); Air-Ride seat (optional)	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	Cast-iron front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,433 lb	730 lb
▶Dimensions & Maneuverability
Overall Width	59.8 in	55.1 in
Wheelbase	71.1 in	63.4 in
Ground Clearance	13.5 in	13.4 in
Min. Turn Radius without Brakes	8.9 ft (with brake applied)	8.2 ft (with brake applied)
Height to Top of ROPS	97.2 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	90.6 in (HSTC-LE cab)	Not Published
Overall Length	115.0 in (without 3-point hitch)	108.7 in (without 3-point hitch)
▶Weight
Tractor Weight (Base)	3,649 lb	2,778 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Agricultural, Turf or Industrial tires (options)	Agricultural; Turf; Industrial (R4)
R1 Agricultural - Front	7.0-16	7.2-16
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	27x10.50-15	25X8.50-14
R3 Turf - Rear	41x18LL-16.1	13.6-16
R4 Industrial - Front	10-16.5	27X8.50-15
R4 Industrial - Rear	420/70-24	15-19.5
▶Loader & Attachments
Quick Attach Loader System	LA555: 2-lever mechanical quick coupler (standard); LA805: 2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional)	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model	LA555 or LA805	LA526
Loader Lift Height	LA555: 96.4 in; LA805: 104.7 in	94.8 in (at pivot pin)
Loader Lift Capacity (Full Height)	LA555: 1,190 lb; LA805: 1,715 lb (at pivot pin)	1,144 lb (at pivot pin, max. height)
Loader Breakout Force	LA555: 2,030 lb; LA805: 2,549 lb	Not Published
▶Warranty
Warranty Length & Coverage	Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours	Basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: powertrain 36 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00

Find a Kubota dealer near you→

Kubota L3560LE vs Kubota L3902: Quick Answers

Which has more horsepower, the Kubota L3560LE or the Kubota L3902?

The Kubota L3902 leads on engine hp at 37.5 hp hp, compared to 37 hp hp for the Kubota L3560LE.

Which has more PTO horsepower, the Kubota L3560LE or the Kubota L3902?

The Kubota L3902 leads on pto hp at 30.3 hp hp, compared to 28 hp hp for the Kubota L3560LE.

Which is heavier, the Kubota L3560LE or the Kubota L3902?

The Kubota L3560LE leads on weight at 3,649 lb lb, compared to 2,778 lb lb for the Kubota L3902.

Which has more loader lift capacity, the Kubota L3560LE or the Kubota L3902?

The Kubota L3560LE leads on loader lift at 1,715 lb lb, compared to 1,144 lb lb for the Kubota L3902.

Which has more three-point hitch lift capacity, the Kubota L3560LE or the Kubota L3902?

The Kubota L3560LE leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,435 lb lb for the Kubota L3902.
