Which has more horsepower, the Kubota L3560LE or the Kubota L4060LE?

The Kubota L4060LE leads on engine hp at 42 hp hp, compared to 37 hp hp for the Kubota L3560LE.

Which has more PTO horsepower, the Kubota L3560LE or the Kubota L4060LE?

The Kubota L4060LE leads on pto hp at 32.5 hp hp, compared to 28 hp hp for the Kubota L3560LE.

Which has more loader lift capacity, the Kubota L3560LE or the Kubota L4060LE?

They are effectively tied: both machines are rated at 1,715 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Kubota L3560LE or the Kubota L4060LE?

The Kubota L4060LE leads on 3-pt lift (24 in) at 2,760 lb lb, compared to 2,646 lb lb for the Kubota L3560LE.

Kubota L3560LE vs Kubota L4060LE

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kubota L4060LE leads 5 categories to 0 (3 tied). Machine pages: Kubota L3560LE and Kubota L4060LE.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota L3560LE	Kubota L4060LE
Engine HP (hp)	37 hp	▲ 42 hp
PTO HP (hp)	28 hp	▲ 32.5 hp
Loader Lift (lb)	1,715 lb	1,715 lb
3-Pt Lift (24 in) (lb)	2,646 lb	▲ 2,760 lb
Lift Height (in)	104.7 in	104.7 in
Breakout Force (lbf)	2,549 lbf	2,549 lbf
Hydraulic Flow (gpm)	12.8 gpm	▲ 14.1 gpm
Travel Speed (mph)	16.5 mph	▲ 16.8 mph

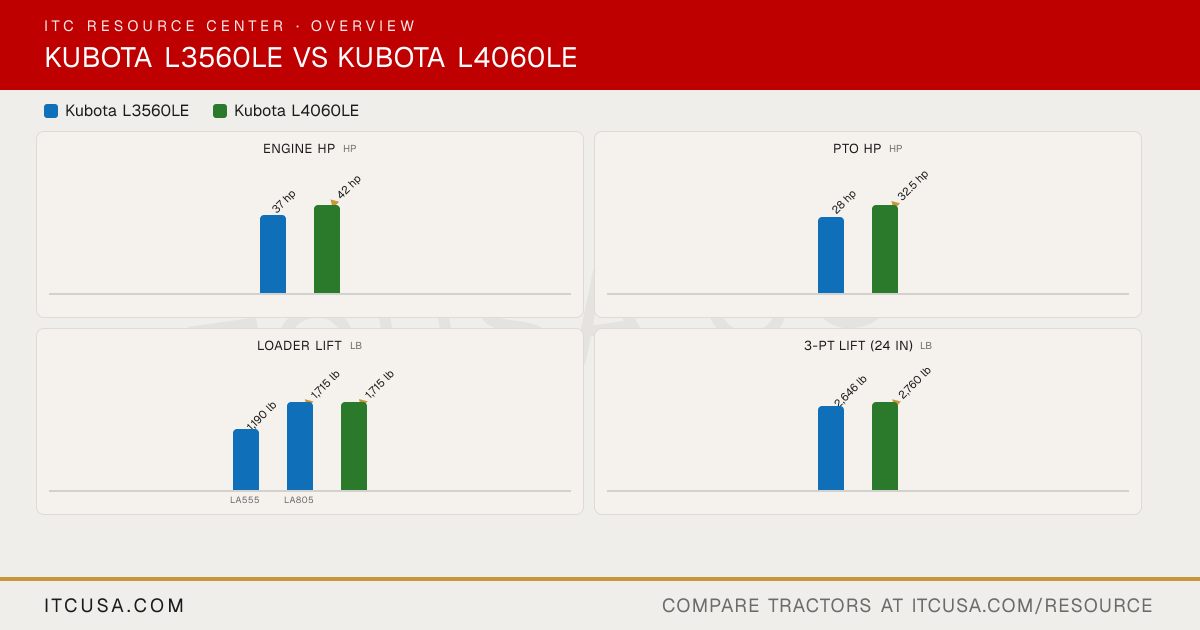

The headline numbers at a glance.

Kubota L3560LEKubota L4060LE

Engine HPhp

37 hp

▲42 hp

PTO HPhp

28 hp

▲32.5 hp

Weightlb

—

Loader Liftlb

1,190 lb

▲1,715 lb

LA555LA805

3-Pt Lift (24 in)lb

2,646 lb

▲2,760 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3560LE	KubotaL4060LE


PTO Power	28 hp	32.5 hp
Alternator	40 A, 12 V	40 A, 12 V
Air Cleaner	Dry paper, dual element	Dry paper, dual element
Engine Type	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
Fuel System	Electronic CRS (Common Rail System)	Electronic CRS (Common Rail System)
Displacement	111.4 in³	148.5 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Liquid-cooled	Liquid-cooled
Engine Manufacturer	Kubota	Kubota
Engine Power (Gross)	37 hp	42 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Not Published	Not Published
Steering Flow	4.7 gpm	4.7 gpm
Implement Flow	8.1 gpm	9.4 gpm
Total Hydraulic Flow	12.8 gpm	14.1 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.8 gpm	14.1 gpm
No. of Optional Remote Valves	Optional, up to 3	Optional, up to 3
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	1 speed: 540 rpm	1 speed: 540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	Not Published	Not Published
Mid-PTO Availability	Optional	Optional
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	2,646 lb	2,760 lb

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Agricultural, Turf or Industrial tires (options)	Agricultural, Turf or Industrial tires (options)
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	12.4-24	12.4-24
R1 Agricultural - Front	7.0-16	7.0-16

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	13.5 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	LA555: 96.4 in; LA805: 104.7 in	104.7 in
Loader Breakout Force	LA555: 2030 lb (9029 N); LA805: 2549 lb (11341 N)	2549 lb (11341 N)
Quick Attach Loader System	LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)	LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)	LA555: 1190 lb; LA805: 1715 lb	1715 lb

Clutch	N/A	N/A
No. of Speeds	3 ranges	3 ranges
Transmission Type	Hydrostatic (HST Plus)	Hydrostatic (HST Plus)
Max Travel Speed (Forward)	16.5 mph	16.8 mph
Max Travel Speed (Reverse)	14.9 mph	15.1 mph
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Wet disc type	Wet disc type
Steering	Hydrostatic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	71.1 in	74.6 in
Overall Width	59.8 in	66.5 in
Ground Clearance	13.5 in	14.2 in
Height to Top of ROPS	HST-LE (4WD, ROPS): 97.2 in; HSTC-LE (4WD, CAB): Not Applicable	HST-LE (4WD, ROPS): 97.6 in; HSTC-LE (4WD, CAB): Not Applicable
Height to Top of Cab Model	HST-LE (4WD, ROPS): Not Applicable; HSTC-LE (4WD, CAB): Not Published	HST-LE (4WD, ROPS): Not Applicable; HSTC-LE (4WD, CAB): Not Published
Height to Top of ROPS (folded)	HST-LE (4WD, ROPS): 90.6 in; HSTC-LE (4WD, CAB): Not Applicable	HST-LE (4WD, ROPS): 91.1 in; HSTC-LE (4WD, CAB): Not Applicable
Min. Turn Radius without Brakes	8.9 ft (2.7 m)	8.9 ft (2.7 m)
Overall Length with 3-Point Hitch	Not Published	Not Published

Kubota L3560LE vs Kubota L4060LE: Quick Answers

Which has more horsepower, the Kubota L3560LE or the Kubota L4060LE?: The Kubota L4060LE leads on engine hp at 42 hp hp, compared to 37 hp hp for the Kubota L3560LE.
Which has more PTO horsepower, the Kubota L3560LE or the Kubota L4060LE?: The Kubota L4060LE leads on pto hp at 32.5 hp hp, compared to 28 hp hp for the Kubota L3560LE.
Which has more loader lift capacity, the Kubota L3560LE or the Kubota L4060LE?: They are effectively tied: both machines are rated at 1,715 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Kubota L3560LE or the Kubota L4060LE?: The Kubota L4060LE leads on 3-pt lift (24 in) at 2,760 lb lb, compared to 2,646 lb lb for the Kubota L3560LE.
