Bad Boy Tractors 4035 vs Kubota L4060LE

Across 8 measurable specs, the Kubota L4060LE leads 5 categories to 3. Machine pages: Bad Boy Tractors 4035 and Kubota L4060LE.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

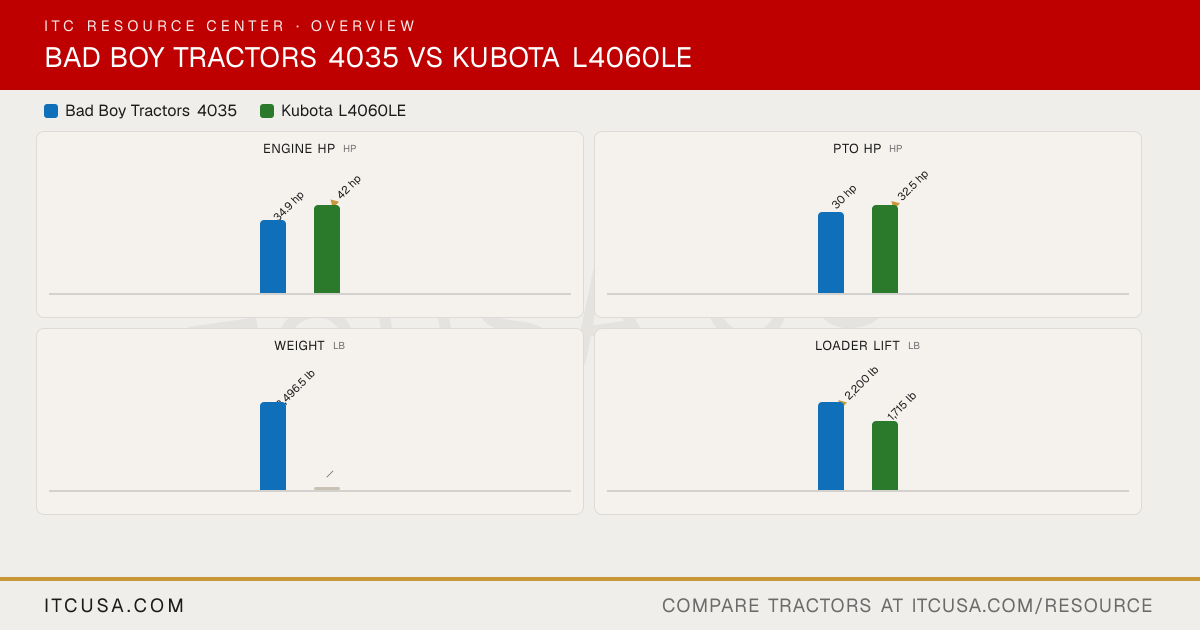

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	KubotaL4060LE

▶Engine
PTO Power	30 hp	32.5 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Not Published	Dry paper, dual element
Engine Type	3 Cylinder, Water-Cooled, Diesel	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
Fuel System	Diesel fuel	Electronic CRS (Common Rail System)
Displacement	104.7 in³	148.5 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water cooled	Liquid-cooled
Engine Manufacturer	A1700N4-BUTC_4	Kubota
Engine Power (Gross)	34.9 hp	42 hp
Engine Emissions Constraints	EPA Final Tier4	Tier 4
▶Weight
Tractor Weight (Base)	3,496.5 lb (3,497 lbs) for ROPS MODEL; 3,728 lb (3,728 lbs) for CABIN MODEL	—
Weight with ROPS and Loader	3163 lbs	Not Published
Weight with Cab and Loader	3,728 lbs	Not Published
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶Hydraulics
Pump Type	Not Published	Not Published
Steering Flow	4.4 gpm	4.7 gpm
Implement Flow	8.2 gpm	9.4 gpm
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	14.1 gpm
Hydraulic System Type	Open Center	Not Published
System Operating Pressure	180 - 407.9 lbf/cm² for control valve	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	14.1 gpm
No. of Optional Remote Valves	Optional (up to 2)	Optional, up to 3
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 RPM	1 speed: 540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position Control	Position control
Hitch Lift Capacity	3,306.9 lb	Not Published
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Cat 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	2,760 lb
▶Tire Options
R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Std (manual): 8.0-16 / 12.4-24; IND (website): 28X8.50-15 / 43X16.00-20	Agricultural, Turf or Industrial tires (options)
R4 Industrial - Rear	43X16.00-20	Not Published
R4 Industrial - Front	28X8.50-15	Not Published
R1 Agricultural - Rear	12.4-24 6PR	12.4-24
R1 Agricultural - Front	8.0-16 4PR	7.0-16
▶Fluid Capacity
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Fuel Tank Capacity	7.13 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	9.77 u.s. gal (37 ℓ) HST	Not Published
▶Loader & Attachments
Loader Lift Height	104 in	104.7 in
Loader Breakout Force	3,660 lb	2549 lb (11341 N)
Quick Attach Loader System	SSQA	LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	1715 lb
▶Transmission & Drivetrain
Clutch	None (HST)	N/A
No. of Speeds	3 Range	3 ranges
Transmission Type	HST (3-range)	Hydrostatic (HST Plus)
Max Travel Speed (Forward)	19.08 mph (range C)	16.8 mph
Max Travel Speed (Reverse)	19.08 mph (range C)	15.1 mph
Differential Lock & Limited Slip Options	Differential lock	Not Published
▶Chassis, Steering & Controls
Brakes	Wet multi-disc	Wet disc type
Steering	Fully hydraulic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Cast Iron	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	65.7 in	74.6 in
Overall Width	56.7 in	66.5 in
Overall Length	134.88 in.	—
Ground Clearance	15 in	14.2 in
Height to Top of ROPS	96.85 in	HST-LE (4WD, ROPS): 97.6 in; HSTC-LE (4WD, CAB): Not Applicable
Height to Top of Cab Model	Not Applicable	HST-LE (4WD, ROPS): Not Applicable; HSTC-LE (4WD, CAB): Not Published
Height to Top of ROPS (folded)	Not Published	HST-LE (4WD, ROPS): 91.1 in; HSTC-LE (4WD, CAB): Not Applicable
Min. Turn Radius without Brakes	Not Published	8.9 ft (2.7 m)
Overall Length with 3-Point Hitch	134.88 in	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Bad Boy Tractors 4035 vs Kubota L4060LE: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the Kubota L4060LE?

The Kubota L4060LE leads on engine hp at 42 hp hp, compared to 34.9 hp hp for the Bad Boy Tractors 4035.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Kubota L4060LE?

The Kubota L4060LE leads on pto hp at 32.5 hp hp, compared to 30 hp hp for the Bad Boy Tractors 4035.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Kubota L4060LE?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,715 lb lb for the Kubota L4060LE.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Kubota L4060LE?

The Kubota L4060LE leads on 3-pt lift (24 in) at 2,760 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035.
