Kubota L3902 vs Kubota LX3520HSDC
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the Kubota L3902 leads 6 categories to 2. Machine pages: Kubota L3902 and Kubota LX3520HSDC.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

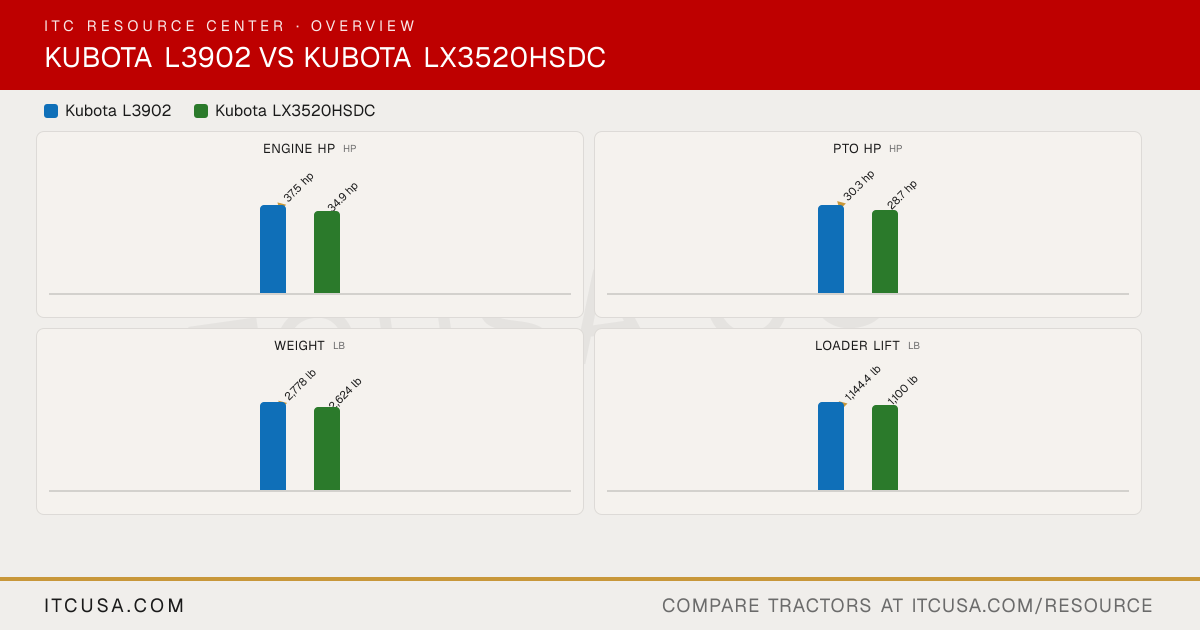

Category Verdict
| Spec | Kubota L3902 | Kubota LX3520HSDC |
|---|---|---|
| Engine HP (hp) | ▲ 37.5 hp | 34.9 hp |
| PTO HP (hp) | ▲ 30.3 hp | 28.7 hp |
| Weight (lb) | ▲ 2,778 lb | 2,624 lb |
| Loader Lift (lb) | ▲ 1,144.4 lb | 1,100 lb |
| 3-Pt Lift (24 in) (lb) | 1,435 lb | ▲ 1,962 lb |
| Lift Height (in) | ▲ 94.8 in | 87.6 in |
| Hydraulic Flow (gpm) | ▲ 10.1 gpm | 9.5 gpm |
| Travel Speed (mph) | 14.1 mph | ▲ 17 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaL3902 | KubotaLX3520HSDC |
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|---|---|
| Engine Model | D1803-CR-E5 | V1505-CR-TE5-D40Q4 |
| Engine Type | Direct injection, vertical, water-cooled 4-cycle, diesel | Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger |
| No. of Cylinders | 3 | 4 |
| Displacement | 111.4 in³ | 91.4 in³ |
| Rated Engine Speed | 2700 rpm | 2700 rpm |
| Engine Power (Gross) | 37.5 hp | 34.9 hp |
| PTO Power | 30.3 hp | 28.7 hp |
| Engine Emissions Constraints | Not Published | Not Published |
| Cooling System Type | Water-cooled | Pressurized radiator |
| Air Cleaner | Dry type, single element | 6 in paper filter (with dual element) |
| Fuel System | Direct injection | Direct injection |
| Alternator | 45 A, 12 V | Not Published |
Kubota L3902 vs Kubota LX3520HSDC: Quick Answers
- Which has more horsepower, the Kubota L3902 or the Kubota LX3520HSDC?
- The Kubota L3902 leads on engine hp at 37.5 hp hp, compared to 34.9 hp hp for the Kubota LX3520HSDC.
- Which has more PTO horsepower, the Kubota L3902 or the Kubota LX3520HSDC?
- The Kubota L3902 leads on pto hp at 30.3 hp hp, compared to 28.7 hp hp for the Kubota LX3520HSDC.
- Which is heavier, the Kubota L3902 or the Kubota LX3520HSDC?
- The Kubota L3902 leads on weight at 2,778 lb lb, compared to 2,624 lb lb for the Kubota LX3520HSDC.
- Which has more loader lift capacity, the Kubota L3902 or the Kubota LX3520HSDC?
- The Kubota L3902 leads on loader lift at 1,144.4 lb lb, compared to 1,100 lb lb for the Kubota LX3520HSDC.
- Which has more three-point hitch lift capacity, the Kubota L3902 or the Kubota LX3520HSDC?
- The Kubota LX3520HSDC leads on 3-pt lift (24 in) at 1,962 lb lb, compared to 1,435 lb lb for the Kubota L3902.
