Kubota L4060DT vs Kubota L4802

Across 8 measurable specs, the Kubota L4060DT leads 5 categories to 3. Machine pages: Kubota L4060DT and Kubota L4802.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

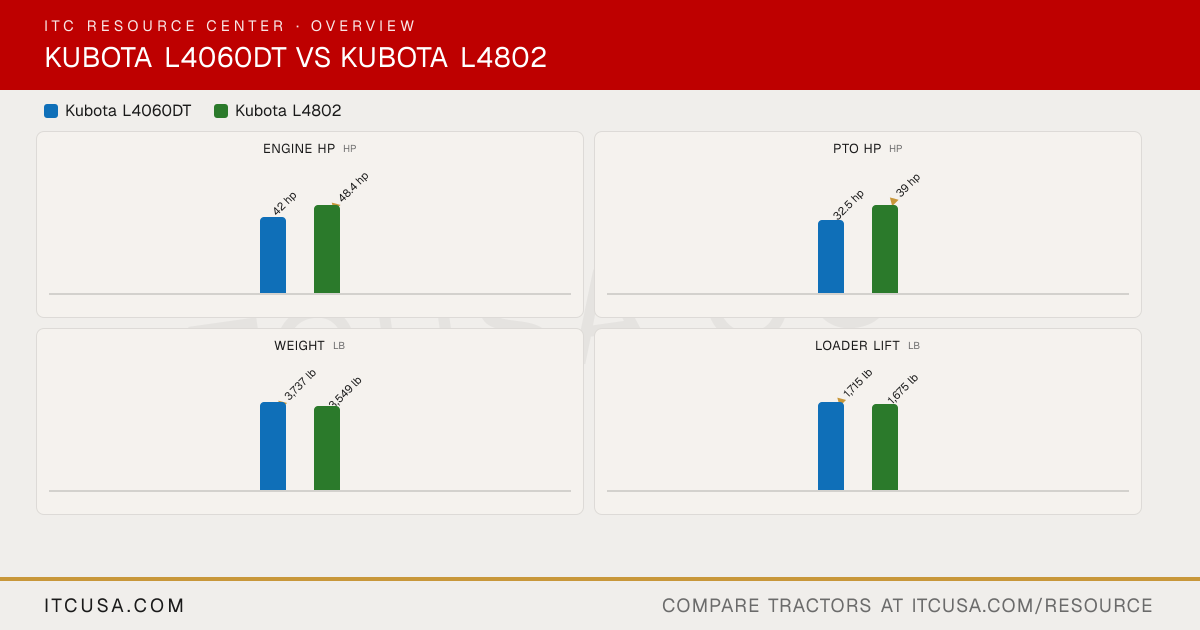

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4060DT	KubotaL4802

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V2403-CR-E4-GL2	V2403-CR-E5
Engine Type	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	4	4
Displacement	148.5 in³	148.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	42 hp	48.4 hp
PTO Power	32.5 hp	39 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Dry paper, dual element	Dry type, primary and secondary element
Fuel System	Electronic CRS (Common Rail System)	Direct injection
Alternator	40 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Tandem pump - gear type	Not Published
Implement Flow	9.4 gpm	7.8 gpm
Steering Flow	4.7 gpm	4.7 gpm
Total Hydraulic Flow	14.1 gpm	12.5 gpm (7.8 + 4.7, computed)
Overall Hydraulic Pump Flow	14.1 gpm	12.5 gpm (7.8 + 4.7, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None standard (up to 3 optional)	Not Published
No. of Optional Remote Valves	Optional, up to 3 (double-acting valve or float detent valve options, any position)	Optional: double acting valve, or double acting valve with float position (float valve as second segment only)
▶Fluid Capacity
Fuel Tank Capacity	13.5 gal	13.5 gal
Coolant Capacity	7.9 qt	6.9 qt
Crankcase Capacity	8.7 qt	8.7 qt
Transmission / Hydraulic System Capacity	11.4 gal	10.6 gal
Front Axle Fluid Capacity	6.9 qt	6.9 qt
▶PTO & Hitch
PTO Type	Live independent (hydraulic clutch)	Live independent PTO with hydraulic clutch
PTO Rear	540 rpm @ 2476 engine rpm	540 rpm
Mid-PTO Availability	Optional	Not Published
Category, 3-Point Hitch	SAE Category 1	SAE Category I
Hitch Lift Capacity	3,858 lb	2870 lb
Hitch Lift Capacity (at 24”)	2,756 lb	2320 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic	Hydrostatic transmission (3-range)
No. of Speeds	3-Range, 6 speeds (H-DS), infinitely variable in each	3-range
Max Travel Speed (Forward)	16.8 mph	15.8 mph
Max Travel Speed (Reverse)	15.1 mph	14.2 mph
Clutch	Not Published	Not Applicable
Differential Lock & Limited Slip Options	Rear differential lock, standard	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc type, mechanically activated	Mechanical, wet disc type
Seat Suspension & Adjustability	Deluxe suspension seat with swivel (standard); Air-Ride seat (optional)	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	Cast-iron front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,433 lb	1430 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	129.5 in	120.3 in (without 3-point hitch)
Overall Width	66.5 in	62.2 in
Wheelbase	74.6 in	72.6 in
Ground Clearance	14.2 in	15.2 in
Min. Turn Radius without Brakes	8.9 ft (with brake applied)	8.5 ft (with brake applied)
Height to Top of ROPS	97.6 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
▶Weight
Tractor Weight (Base)	3737 lb	3549 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	8.3-16	8.3-16
R1 Agricultural - Rear	14.9-24	14.9-24
R3 Turf - Front	27X10.50LL-15	27X10.5-15
R3 Turf - Rear	41X18LL-16.1	44X18-20
R4 Industrial - Front	10-16.5	10.0-16.5
R4 Industrial - Rear	17.5L-24	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)	LA766 2-Lever Quick Coupler
Loader Model	LA805	LA766
Loader Lift Height	104.7 in	105.2 in
Loader Lift Capacity (Full Height)	1715 lb	1675 lb
Loader Breakout Force	2549 lb (19.7 in forward of pivot pin)	Not Published
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00 With LA766 loader

Find a Kubota dealer near you→

Kubota L4060DT vs Kubota L4802: Quick Answers

Which has more horsepower, the Kubota L4060DT or the Kubota L4802?

The Kubota L4802 leads on engine hp at 48.4 hp hp, compared to 42 hp hp for the Kubota L4060DT.

Which has more PTO horsepower, the Kubota L4060DT or the Kubota L4802?

The Kubota L4802 leads on pto hp at 39 hp hp, compared to 32.5 hp hp for the Kubota L4060DT.

Which is heavier, the Kubota L4060DT or the Kubota L4802?

The Kubota L4060DT leads on weight at 3,737 lb lb, compared to 3,549 lb lb for the Kubota L4802.

Which has more loader lift capacity, the Kubota L4060DT or the Kubota L4802?

The Kubota L4060DT leads on loader lift at 1,715 lb lb, compared to 1,675 lb lb for the Kubota L4802.

Which has more three-point hitch lift capacity, the Kubota L4060DT or the Kubota L4802?

The Kubota L4060DT leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,320 lb lb for the Kubota L4802.
