Bad Boy Tractors 5045 Cab vs Kubota L4060DT

Across 9 measurable specs, the Bad Boy Tractors 5045 Cab leads 8 categories to 1. Machine pages: Bad Boy Tractors 5045 Cab and Kubota L4060DT.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

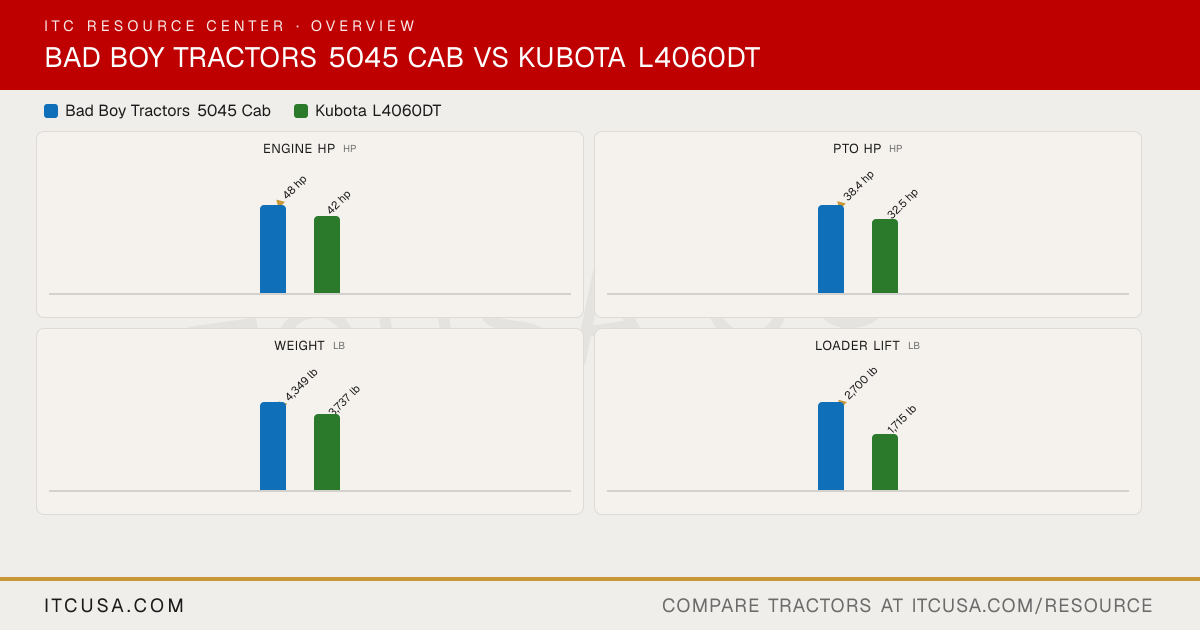

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	KubotaL4060DT

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A2300N3	V2403-CR-E4-GL2
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
No. of Cylinders	4	4
Displacement	139.5 in³	148.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48 hp	42 hp
PTO Power	38.4 hp	32.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dry paper, dual element
Fuel System	Not Published	Electronic CRS (Common Rail System)
Alternator	70 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Not Published	Tandem pump - gear type
Implement Flow	10.7 gpm	9.4 gpm
Steering Flow	5 gpm	4.7 gpm
Total Hydraulic Flow	15.7 gpm	14.1 gpm
Overall Hydraulic Pump Flow	15.7 gpm	14.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	4 ports	None standard (up to 3 optional)
No. of Optional Remote Valves	Not Published	Optional, up to 3 (double-acting valve or float detent valve options, any position)
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	13.5 gal
Coolant Capacity	1.56 gal	7.9 qt
Crankcase Capacity	1.20 gal	8.7 qt
Transmission / Hydraulic System Capacity	10.04 gal	11.4 gal
Front Axle Fluid Capacity	1.90 gal	6.9 qt
▶PTO & Hitch
PTO Type	Independent	Live independent (hydraulic clutch)
PTO Rear	540 / 540E rpm	540 rpm @ 2476 engine rpm
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category 1	SAE Category 1
Hitch Lift Capacity	3,306 lb	3,858 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,756 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	Hydrostatic
No. of Speeds	4 range (HST)	3-Range, 6 speeds (H-DS), infinitely variable in each
Max Travel Speed (Forward)	19.5 mph	16.8 mph
Max Travel Speed (Reverse)	19.5 mph	15.1 mph
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock, standard
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet disc type, mechanically activated
Seat Suspension & Adjustability	Heated leather seat (cab)	Deluxe suspension seat with swivel (standard); Air-Ride seat (optional)
Front Axle Type	Selectable 4WD	4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,433 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	129.5 in
Overall Width	64.9 in	66.5 in
Wheelbase	71.1 in	74.6 in
Ground Clearance	15.5 in	14.2 in
Min. Turn Radius without Brakes	110.2 in (with brake applied)	8.9 ft (with brake applied)
Height to Top of ROPS	Not Published	97.6 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	Not Applicable
▶Weight
Tractor Weight (Base)	4,349 lb	3737 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	9.5-16	8.3-16
R1 Agricultural - Rear	13.6-26	14.9-24
R3 Turf - Front	Not Published	27X10.50LL-15
R3 Turf - Rear	Not Published	41X18LL-16.1
R4 Industrial - Front	Not Published	10-16.5
R4 Industrial - Rear	Not Published	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Model	BBL500	LA805
Loader Lift Height	106.6 in	104.7 in
Loader Lift Capacity (Full Height)	2,700 lb	1715 lb
Loader Breakout Force	3,660 lb	2549 lb (19.7 in forward of pivot pin)
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 5045 Cab vs Kubota L4060DT: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the Kubota L4060DT?

The Bad Boy Tractors 5045 Cab leads on engine hp at 48 hp hp, compared to 42 hp hp for the Kubota L4060DT.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the Kubota L4060DT?

The Bad Boy Tractors 5045 Cab leads on pto hp at 38.4 hp hp, compared to 32.5 hp hp for the Kubota L4060DT.

Which is heavier, the Bad Boy Tractors 5045 Cab or the Kubota L4060DT?

The Bad Boy Tractors 5045 Cab leads on weight at 4,349 lb lb, compared to 3,737 lb lb for the Kubota L4060DT.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the Kubota L4060DT?

The Bad Boy Tractors 5045 Cab leads on loader lift at 2,700 lb lb, compared to 1,715 lb lb for the Kubota L4060DT.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the Kubota L4060DT?

The Kubota L4060DT leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045 Cab.
