Kubota L4060LE vs Kubota L5060

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kubota L5060 leads 7 categories to 1. Machine pages: Kubota L4060LE and Kubota L5060.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota L4060LE	Kubota L5060
Engine HP (hp)	42 hp	▲ 52 hp
PTO HP (hp)	32.5 hp	▲ 44 hp
Loader Lift (lb)	1,715 lb	▲ 2,361 lb
3-Pt Lift (24 in) (lb)	2,760 lb	▲ 2,976 lb
Lift Height (in)	104.7 in	▲ 112.7 in
Breakout Force (lbf)	2,549 lbf	▲ 3,171 lbf
Hydraulic Flow (gpm)	14.1 gpm	▲ 14.7 gpm
Travel Speed (mph)	▲ 16.8 mph	16.5 mph

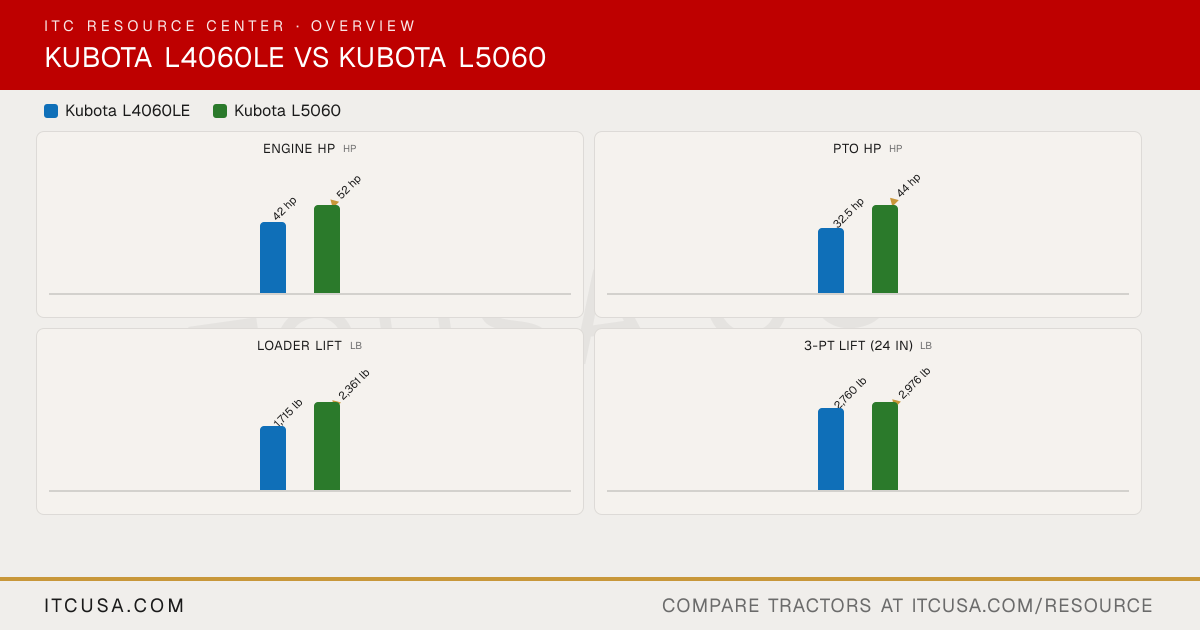

The headline numbers at a glance.

Kubota L4060LEKubota L5060

Engine HPhp

42 hp

▲52 hp

PTO HPhp

32.5 hp

▲44 hp

Weightlb

n/a

Loader Liftlb

1,715 lb

▲2,361 lb

3-Pt Lift (24 in)lb

2,760 lb

▲2,976 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4060LE	KubotaL5060


PTO Power	32.5 hp	44 hp
Alternator	40 A, 12 V	45 A, 12 V
Air Cleaner	Dry paper, dual element	Dry paper, dual element
Engine Type	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged
Fuel System	Electronic CRS (Common Rail System)	Electronic Common Rail System (CRS)
Displacement	148.5 in³	148.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2700 rpm
Cooling System Type	Liquid-cooled	Liquid-cooled
Engine Manufacturer	Kubota	Kubota
Engine Power (Gross)	42 hp	52 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Not Published	Tandem pump - gear type
Steering Flow	4.7 gpm	4.9 gpm
Implement Flow	9.4 gpm	9.8 gpm
Total Hydraulic Flow	14.1 gpm	14.7 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.1 gpm	14.7 gpm
No. of Optional Remote Valves	Optional, up to 3	Optional, up to 3 (double-acting valve or float detent valve options, any position)
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	1 speed: 540 rpm	540 rpm @ 2550 engine rpm
PTO Type	Independent	Live independent (hydraulic clutch)
Lift Control Type	Position control	Position control
Hitch Lift Capacity	Not Published	3,858 lb
Mid-PTO Availability	Optional	Optional
Category, 3-Point Hitch	Category I	SAE Category 1 & 2
Hitch Lift Capacity (at 24”)	2,760 lb	2,976 lb

R3 Turf - Rear	Not Published	44X18-20
R3 Turf - Front	Not Published	29X12.50-15
Tire Size & Options	Agricultural, Turf or Industrial tires (options)	Standard R1; Option 1 R4; Option 2 R3; LSW option (R3)
R4 Industrial - Rear	Not Published	4.6 gal-24
R4 Industrial - Front	Not Published	10-16.5
R1 Agricultural - Rear	12.4-24	14.9-26; 13.6-28
R1 Agricultural - Front	7.0-16	9.5-16

Coolant Capacity	Not Published	8.7 qt
Crankcase Capacity	Not Published	9.9 qt
Fuel Tank Capacity	13.5 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	11.9 gal

Loader Lift Height	104.7 in	112.7 in
Loader Breakout Force	2549 lb (11341 N)	3171 lb (14107 N)
Quick Attach Loader System	LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)	1715 lb	2361 lb

Clutch	N/A	Dry type single stage
No. of Speeds	3 ranges	12Fx8R
Transmission Type	Hydrostatic (HST Plus)	Glide Shift
Max Travel Speed (Forward)	16.8 mph	16.5 mph
Max Travel Speed (Reverse)	15.1 mph	15.8 mph
Differential Lock & Limited Slip Options	Not Published	Rear differential lock, standard

Brakes	Wet disc type	Wet disc type, mechanically activated
Steering	Hydrostatic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	Not Published	1,433 lbs.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	74.6 in	75.4 in
Overall Width	66.5 in	67.3 in
Ground Clearance	14.2 in	15.4 in
Height to Top of ROPS	HST-LE (4WD, ROPS): 97.6 in; HSTC-LE (4WD, CAB): Not Applicable	98.0 in
Height to Top of Cab Model	HST-LE (4WD, ROPS): Not Applicable; HSTC-LE (4WD, CAB): Not Published	Not Applicable
Height to Top of ROPS (folded)	HST-LE (4WD, ROPS): 91.1 in; HSTC-LE (4WD, CAB): Not Applicable	Not Published
Min. Turn Radius without Brakes	8.9 ft (2.7 m)	9.2 ft (2.8 m)
Overall Length with 3-Point Hitch	Not Published	135.0 in

Find a Kubota dealer near you

Kubota L4060LE vs Kubota L5060: Quick Answers

Which has more horsepower, the Kubota L4060LE or the Kubota L5060?: The Kubota L5060 leads on engine hp at 52 hp hp, compared to 42 hp hp for the Kubota L4060LE.
Which has more PTO horsepower, the Kubota L4060LE or the Kubota L5060?: The Kubota L5060 leads on pto hp at 44 hp hp, compared to 32.5 hp hp for the Kubota L4060LE.
Which has more loader lift capacity, the Kubota L4060LE or the Kubota L5060?: The Kubota L5060 leads on loader lift at 2,361 lb lb, compared to 1,715 lb lb for the Kubota L4060LE.
Which has more three-point hitch lift capacity, the Kubota L4060LE or the Kubota L5060?: The Kubota L5060 leads on 3-pt lift (24 in) at 2,976 lb lb, compared to 2,760 lb lb for the Kubota L4060LE.

More Head-to-Heads

Category Verdict

Spec	Kubota L4060LE	Kubota L5060
Engine HP (hp)	42 hp	▲ 52 hp
PTO HP (hp)	32.5 hp	▲ 44 hp
Loader Lift (lb)	1,715 lb	▲ 2,361 lb
3-Pt Lift (24 in) (lb)	2,760 lb	▲ 2,976 lb
Lift Height (in)	104.7 in	▲ 112.7 in
Breakout Force (lbf)	2,549 lbf	▲ 3,171 lbf
Hydraulic Flow (gpm)	14.1 gpm	▲ 14.7 gpm
Travel Speed (mph)	▲ 16.8 mph	16.5 mph

The headline numbers at a glance.

Kubota L4060LEKubota L5060

Engine HPhp

42 hp

▲52 hp

PTO HPhp

32.5 hp

▲44 hp

Weightlb

n/a

Loader Liftlb

1,715 lb

▲2,361 lb

3-Pt Lift (24 in)lb

2,760 lb

▲2,976 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4060LE	KubotaL5060


PTO Power	32.5 hp	44 hp
Alternator	40 A, 12 V	45 A, 12 V
Air Cleaner	Dry paper, dual element	Dry paper, dual element
Engine Type	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged
Fuel System	Electronic CRS (Common Rail System)	Electronic Common Rail System (CRS)
Displacement	148.5 in³	148.5 in³
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2700 rpm
Cooling System Type	Liquid-cooled	Liquid-cooled
Engine Manufacturer	Kubota	Kubota
Engine Power (Gross)	42 hp	52 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Not Published	Tandem pump - gear type
Steering Flow	4.7 gpm	4.9 gpm
Implement Flow	9.4 gpm	9.8 gpm
Total Hydraulic Flow	14.1 gpm	14.7 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	14.1 gpm	14.7 gpm
No. of Optional Remote Valves	Optional, up to 3	Optional, up to 3 (double-acting valve or float detent valve options, any position)
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	1 speed: 540 rpm	540 rpm @ 2550 engine rpm
PTO Type	Independent	Live independent (hydraulic clutch)
Lift Control Type	Position control	Position control
Hitch Lift Capacity	Not Published	3,858 lb
Mid-PTO Availability	Optional	Optional
Category, 3-Point Hitch	Category I	SAE Category 1 & 2
Hitch Lift Capacity (at 24”)	2,760 lb	2,976 lb

R3 Turf - Rear	Not Published	44X18-20
R3 Turf - Front	Not Published	29X12.50-15
Tire Size & Options	Agricultural, Turf or Industrial tires (options)	Standard R1; Option 1 R4; Option 2 R3; LSW option (R3)
R4 Industrial - Rear	Not Published	4.6 gal-24
R4 Industrial - Front	Not Published	10-16.5
R1 Agricultural - Rear	12.4-24	14.9-26; 13.6-28
R1 Agricultural - Front	7.0-16	9.5-16

Coolant Capacity	Not Published	8.7 qt
Crankcase Capacity	Not Published	9.9 qt
Fuel Tank Capacity	13.5 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	11.9 gal

Loader Lift Height	104.7 in	112.7 in
Loader Breakout Force	2549 lb (11341 N)	3171 lb (14107 N)
Quick Attach Loader System	LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)	1715 lb	2361 lb

Clutch	N/A	Dry type single stage
No. of Speeds	3 ranges	12Fx8R
Transmission Type	Hydrostatic (HST Plus)	Glide Shift
Max Travel Speed (Forward)	16.8 mph	16.5 mph
Max Travel Speed (Reverse)	15.1 mph	15.8 mph
Differential Lock & Limited Slip Options	Not Published	Rear differential lock, standard

Brakes	Wet disc type	Wet disc type, mechanically activated
Steering	Hydrostatic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	Not Published	1,433 lbs.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	74.6 in	75.4 in
Overall Width	66.5 in	67.3 in
Ground Clearance	14.2 in	15.4 in
Height to Top of ROPS	HST-LE (4WD, ROPS): 97.6 in; HSTC-LE (4WD, CAB): Not Applicable	98.0 in
Height to Top of Cab Model	HST-LE (4WD, ROPS): Not Applicable; HSTC-LE (4WD, CAB): Not Published	Not Applicable
Height to Top of ROPS (folded)	HST-LE (4WD, ROPS): 91.1 in; HSTC-LE (4WD, CAB): Not Applicable	Not Published
Min. Turn Radius without Brakes	8.9 ft (2.7 m)	9.2 ft (2.8 m)
Overall Length with 3-Point Hitch	Not Published	135.0 in

Find a Kubota dealer near you

Kubota L4060LE vs Kubota L5060: Quick Answers

Which has more horsepower, the Kubota L4060LE or the Kubota L5060?

The Kubota L5060 leads on engine hp at 52 hp hp, compared to 42 hp hp for the Kubota L4060LE.

Which has more PTO horsepower, the Kubota L4060LE or the Kubota L5060?

The Kubota L5060 leads on pto hp at 44 hp hp, compared to 32.5 hp hp for the Kubota L4060LE.

Which has more loader lift capacity, the Kubota L4060LE or the Kubota L5060?

The Kubota L5060 leads on loader lift at 2,361 lb lb, compared to 1,715 lb lb for the Kubota L4060LE.

Which has more three-point hitch lift capacity, the Kubota L4060LE or the Kubota L5060?

The Kubota L5060 leads on 3-pt lift (24 in) at 2,976 lb lb, compared to 2,760 lb lb for the Kubota L4060LE.
