Kubota L4701 vs Kubota L4802F

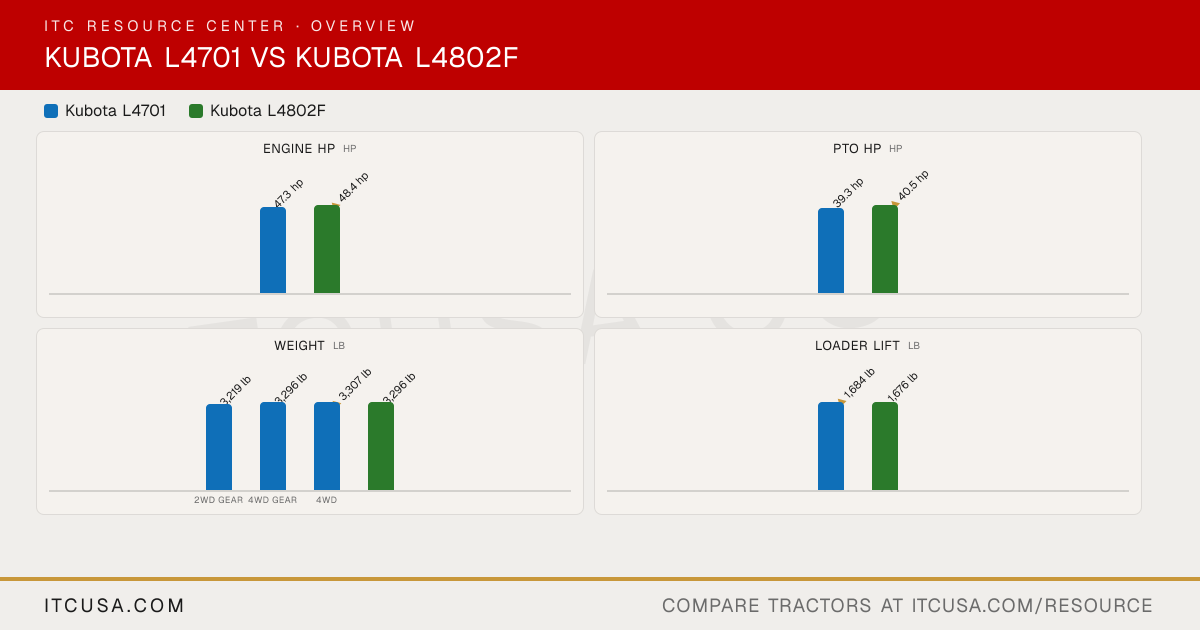

Across 8 measurable specs, the Kubota L4802F leads 3 categories to 2 (3 tied). Machine pages: Kubota L4701 and Kubota L4802F.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4701	KubotaL4802F

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V2403-CR-E4-LB1	V2403-CR-E5
Engine Type	4-cylinder, multi-valve, naturally aspirated, common-rail, liquid-cooled diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	4	4
Displacement	148.5 in³	148.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	47.3 hp	48.4 hp
PTO Power	F (2WD gear), DT (4WD gear): 39.3 hp; HST (4WD): 37.8 hp	40.5 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled, water with pressurized radiator	Water-cooled
Air Cleaner	Dry paper dual element	Dry type, primary and secondary element
Fuel System	Common-rail, direct injection, electronic control	Direct injection
Alternator	40 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Open center tandem pump, gear type	Not Published
Implement Flow	7.8 gpm	7.8 gpm
Steering Flow	4.7 gpm	4.7 gpm
Total Hydraulic Flow	12.5 gpm	12.5 gpm (7.8 + 4.7, computed)
Overall Hydraulic Pump Flow	12.5 gpm	12.5 gpm (7.8 + 4.7, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 3: self-canceling detent valve or float detent valve	Optional: double-acting valve, or double-acting valve with float position (float valve as second segment only)
▶Fluid Capacity
Fuel Tank Capacity	13.5 gal	13.5 gal
Coolant Capacity	6.9 qt	6.9 qt
Crankcase Capacity	8.7 qt	8.7 qt
Transmission / Hydraulic System Capacity	10.6 gal	10.6 gal
Front Axle Fluid Capacity	6.9 qt	Not Published
▶PTO & Hitch
PTO Type	Live independent PTO with hydraulic clutch	Live independent PTO with hydraulic clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	No mid-PTO offered	Not Published
Category, 3-Point Hitch	Category I	SAE Category I
Hitch Lift Capacity	2,870 lb	2,870 lb
Hitch Lift Capacity (at 24”)	2,310 lb	2,320 lb
Lift Control Type	Position control (draft control optional)	Position control
▶Transmission & Drivetrain
Transmission Type	F (2WD gear), DT (4WD gear): synchronized shuttle, 8F/8R; HST (4WD): hydrostatic, 3-range	Constant mesh with synchronized shuttle
No. of Speeds	F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range	8 forward, 8 reverse
Max Travel Speed (Forward)	F (2WD gear), DT (4WD gear): 14.9 mph; HST (4WD): 15.8 mph	14.9 mph
Max Travel Speed (Reverse)	F (2WD gear), DT (4WD gear): 14.3 mph; HST (4WD): 14.2 mph	14.3 mph
Clutch	F (2WD gear), DT (4WD gear): dry type, single plate; HST (4WD): no transmission clutch	Dry type single stage
Differential Lock & Limited Slip Options	Rear differential lock standard	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Two-post foldable ROPS (factory certified) with retractable seat belt	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Mechanical wet disc type, pedals can be locked together	Mechanical, wet disc type
Seat Suspension & Adjustability	Not Published	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	F (2WD gear): tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): bevel-gear front axle, non-adjustable tread spacing	Cast-iron front axle
Front Axle Rating	F (2WD gear): 3,300 lb (at 50.4 in tread); DT (4WD gear), HST (4WD): 3,300 lb (at 45.5 in tread)	Not Published
Drawbar Capacity	1,430 lb	1,430 lb
▶Dimensions & Maneuverability
Overall Width	62.4 in	62.2 in
Wheelbase	F (2WD gear): 72.8 in; DT (4WD gear), HST (4WD): 72.6 in	72.6 in
Ground Clearance	15.2 in	15.2 in
Min. Turn Radius without Brakes	F (2WD gear): 10.2 ft; DT (4WD gear), HST (4WD): 11.5 ft	8.9 ft (with brake applied)
Height to Top of ROPS	91.7 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	F (2WD gear): 130.3 in; DT (4WD gear), HST (4WD): 127.4 in (with 3-point hitch)	122.8 in (without 3-point hitch)
▶Weight
Tractor Weight (Base)	F (2WD gear): 3,219 lb; DT (4WD gear): 3,296 lb; HST (4WD): 3,307 lb	3,296 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD)	Agricultural; Turf
R1 Agricultural - Front	F (2WD gear): 7.5L-15, 6-16; DT (4WD gear), HST (4WD): 8.3-16	7.5L-15
R1 Agricultural - Rear	14.9-24	14.9-24
R3 Turf - Front	27x8.5-15 (2WD and 4WD); 27x10.5-15 (4WD)	27X8.50-15
R3 Turf - Rear	44x18-20	44X18-20
R4 Industrial - Front	10-16.5 (4WD)	Not Published
R4 Industrial - Rear	17.5L-24 (4WD)	Not Published
▶Loader & Attachments
Quick Attach Loader System	2-lever quick coupler, tool-free attach and detach	LA766 2-Lever Quick Coupler
Loader Model	LA765	LA766
Loader Lift Height	LA765: 105.2 in	105.2 in (at pivot pin)
Loader Lift Capacity (Full Height)	LA765: 1,684 lb	1,676 lb (at pivot pin, max. height)
Loader Breakout Force	LA765: 3,153 lbf	Not Published
▶Warranty
Warranty Length & Coverage	Not Published	Basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: powertrain 36 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00 With LA766 loader

Find a Kubota dealer near you→

Kubota L4701 vs Kubota L4802F: Quick Answers

Which has more horsepower, the Kubota L4701 or the Kubota L4802F?

The Kubota L4802F leads on engine hp at 48.4 hp hp, compared to 47.3 hp hp for the Kubota L4701.

Which has more PTO horsepower, the Kubota L4701 or the Kubota L4802F?

The Kubota L4802F leads on pto hp at 40.5 hp hp, compared to 39.3 hp hp for the Kubota L4701.

Which is heavier, the Kubota L4701 or the Kubota L4802F?

The Kubota L4701 leads on weight at 3,307 lb lb, compared to 3,296 lb lb for the Kubota L4802F.

Which has more loader lift capacity, the Kubota L4701 or the Kubota L4802F?

The Kubota L4701 leads on loader lift at 1,684 lb lb, compared to 1,676 lb lb for the Kubota L4802F.

Which has more three-point hitch lift capacity, the Kubota L4701 or the Kubota L4802F?

The Kubota L4802F leads on 3-pt lift (24 in) at 2,320 lb lb, compared to 2,310 lb lb for the Kubota L4701.
