Bad Boy Tractors 5045 Cab vs Kubota L4802F

Across 8 measurable specs, the Bad Boy Tractors 5045 Cab leads 6 categories to 2. Machine pages: Bad Boy Tractors 5045 Cab and Kubota L4802F.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

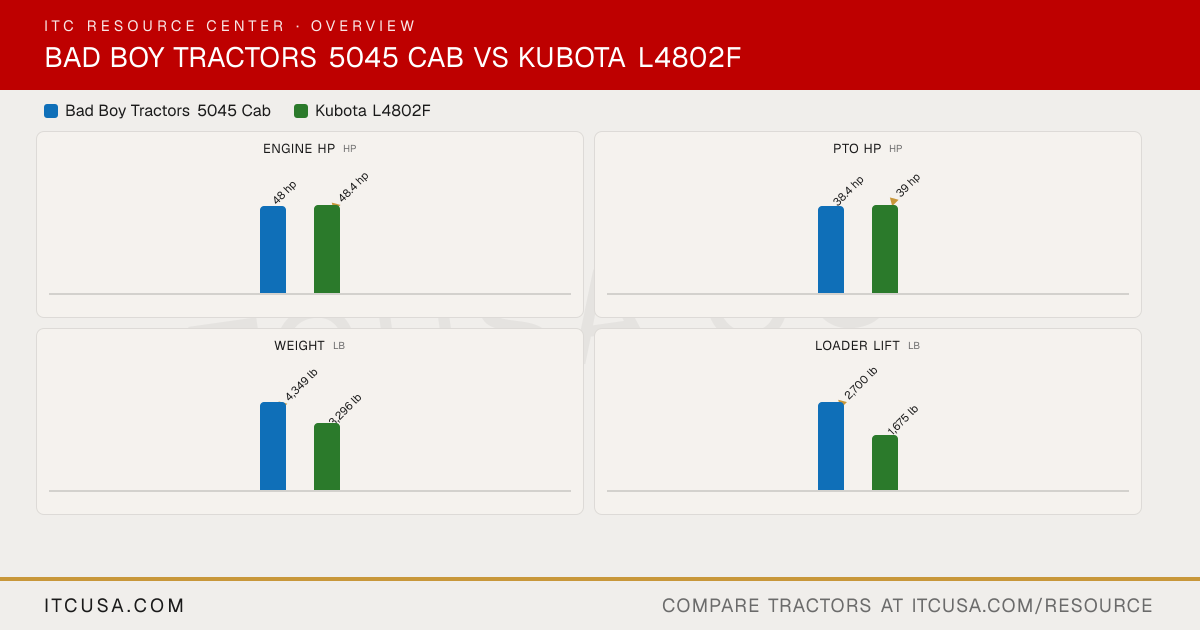

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	KubotaL4802F

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A2300N3	V2403-CR-E5
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	4	4
Displacement	139.5 in³	148.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48 hp	48.4 hp
PTO Power	38.4 hp	39 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry element	Dry type, primary and secondary element
Fuel System	Not Published	Direct injection
Alternator	70 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	10.7 gpm	7.8 gpm
Steering Flow	5 gpm	4.7 gpm
Total Hydraulic Flow	15.7 gpm	12.5 gpm (7.8 + 4.7, computed)
Overall Hydraulic Pump Flow	15.7 gpm	12.5 gpm (7.8 + 4.7, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	4 ports	Not Published
No. of Optional Remote Valves	Not Published	Optional: double acting valve, or double acting valve with float position (float valve as second segment only)
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	13.5 gal
Coolant Capacity	1.56 gal	6.9 qt
Crankcase Capacity	1.20 gal	8.7 qt
Transmission / Hydraulic System Capacity	10.04 gal	10.6 gal
Front Axle Fluid Capacity	1.90 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Live independent PTO with hydraulic clutch
PTO Rear	540 / 540E rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category 1	SAE Category I
Hitch Lift Capacity	3,306 lb	2870 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2320 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	Constant mesh with synchronized shuttle
No. of Speeds	4 range (HST)	8 forward, 8 reverse
Max Travel Speed (Forward)	19.5 mph	14.9 mph
Max Travel Speed (Reverse)	19.5 mph	14.3 mph
Clutch	None (HST)	Dry type single stage
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Mechanical, wet disc type
Seat Suspension & Adjustability	Heated leather seat (cab)	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	Selectable 4WD	Cast-iron front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1430 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	122.8 in (without 3-point hitch)
Overall Width	64.9 in	62.2 in
Wheelbase	71.1 in	72.8 in
Ground Clearance	15.5 in	15.2 in
Min. Turn Radius without Brakes	110.2 in (with brake applied)	8.9 ft (with brake applied)
Height to Top of ROPS	Not Published	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	Not Published
▶Weight
Tractor Weight (Base)	4,349 lb	3296 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	R1 Agricultural; R3 Turf
R1 Agricultural - Front	9.5-16	7.5L-15
R1 Agricultural - Rear	13.6-26	14.9-24
R3 Turf - Front	Not Published	27X8.50-15
R3 Turf - Rear	Not Published	44X18-20
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
▶Loader & Attachments
Quick Attach Loader System	SSQA	LA766 2-Lever Quick Coupler
Loader Model	BBL500	LA766
Loader Lift Height	106.6 in	105.2 in
Loader Lift Capacity (Full Height)	2,700 lb	1675 lb
Loader Breakout Force	3,660 lb	Not Published
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00 With LA766 loader

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 5045 Cab vs Kubota L4802F: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the Kubota L4802F?

The Kubota L4802F leads on engine hp at 48.4 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5045 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the Kubota L4802F?

The Kubota L4802F leads on pto hp at 39 hp hp, compared to 38.4 hp hp for the Bad Boy Tractors 5045 Cab.

Which is heavier, the Bad Boy Tractors 5045 Cab or the Kubota L4802F?

The Bad Boy Tractors 5045 Cab leads on weight at 4,349 lb lb, compared to 3,296 lb lb for the Kubota L4802F.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the Kubota L4802F?

The Bad Boy Tractors 5045 Cab leads on loader lift at 2,700 lb lb, compared to 1,675 lb lb for the Kubota L4802F.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the Kubota L4802F?

The Bad Boy Tractors 5045 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,320 lb lb for the Kubota L4802F.
