Which has more horsepower, the Kubota L4760 or the Kubota MX5400?

The Kubota MX5400 leads on engine hp at 55.5 hp hp, compared to 49 hp hp for the Kubota L4760.

Which has more PTO horsepower, the Kubota L4760 or the Kubota MX5400?

The Kubota MX5400 leads on pto hp at 46.5 hp hp, compared to 41 hp hp for the Kubota L4760.

Which has more loader lift capacity, the Kubota L4760 or the Kubota MX5400?

The Kubota L4760 leads on loader lift at 2,361 lb lb, compared to 2,275 lb lb for the Kubota MX5400.

Which has more three-point hitch lift capacity, the Kubota L4760 or the Kubota MX5400?

The Kubota L4760 leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,310 lb lb for the Kubota MX5400.

Kubota L4760 vs Kubota MX5400

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kubota L4760 leads 5 categories to 3. Machine pages: Kubota L4760 and Kubota MX5400.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota L4760	Kubota MX5400
Engine HP (hp)	49 hp	▲ 55.5 hp
PTO HP (hp)	41 hp	▲ 46.5 hp
Loader Lift (lb)	▲ 2,361 lb	2,275 lb
3-Pt Lift (24 in) (lb)	▲ 2,756 lb	2,310 lb
Lift Height (in)	▲ 112.7 in	111.2 in
Breakout Force (lbf)	▲ 3,171 lbf	3,102 lbf
Hydraulic Flow (gpm)	▲ 14.7 gpm	14.4 gpm
Travel Speed (mph)	16 mph	▲ 17.7 mph

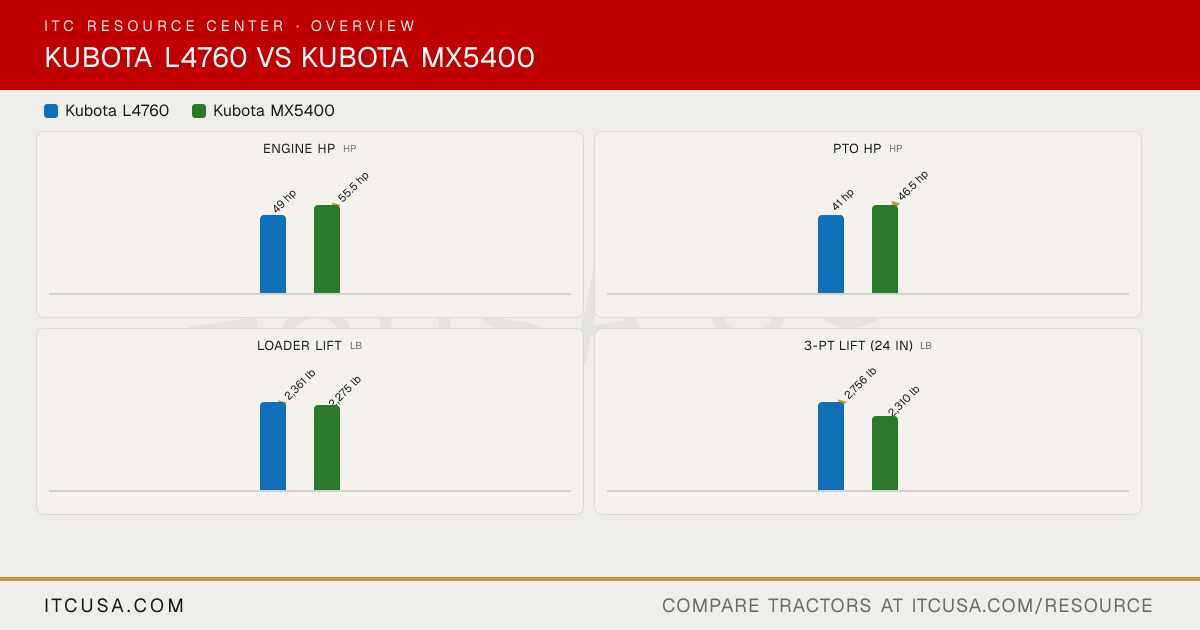

The headline numbers at a glance.

Kubota L4760Kubota MX5400

Engine HPhp

49 hp

▲55.5 hp

PTO HPhp

41 hp

▲46.5 hp

Weightlb

—

Loader Liftlb

▲2,361 lb

2,275 lb

3-Pt Lift (24 in)lb

▲2,756 lb

2,310 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4760	KubotaMX5400


PTO Power	41 hp	46.5 hp
Alternator	40 A, 12 V	45 A, 12 V
Air Cleaner	Dry paper, dual element	Dry-dual element
Engine Type	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated	Liquid-cooled, diesel, 4-cylinder, Turbocharged
Fuel System	Electronic CRS (Common Rail System)	Not Published
Displacement	148.5 in³	148.6 (2434)
No. of Cylinders	4	4
Rated Engine Speed	2700 rpm	2700 rpm
Cooling System Type	Liquid-cooled	Liquid-cooled
Engine Manufacturer	Kubota	Kubota
Engine Power (Gross)	49 hp	55.5 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Tandem pump - gear type	Gear
Steering Flow	GST (4WD): 4.9 gpm; HST (4WD), HSTC (4WD, CAB): 4.7 gpm	4.9 gpm
Implement Flow	GST (4WD): 9.8 gpm; HST (4WD), HSTC (4WD, CAB): 9.4 gpm	9.5 gpm
Total Hydraulic Flow	GST (4WD): 14.7 gpm; HST (4WD), HSTC (4WD, CAB): 14.1 gpm	14.4 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	GST (4WD): 14.7 gpm; HST (4WD), HSTC (4WD, CAB): 14.1 gpm	14.4 gpm
No. of Optional Remote Valves	Optional, up to 3 (double-acting valve or float detent valve options, any position)	Maximum 3 (opt)
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	GST (4WD): 540 rpm @ 2550 engine rpm; HST (4WD), HSTC (4WD, CAB): 540 rpm @ 2475 engine rpm	540 rpm
PTO Type	Live independent (hydraulic clutch)	Live independent, hydraulic PTO with PTO brake, wet clutch
Lift Control Type	Position control	Position (std), Draft (opt)
Hitch Lift Capacity	3,858 lb	Not Published
Mid-PTO Availability	Optional	Not Published
Category, 3-Point Hitch	SAE Category 1	I & II
Hitch Lift Capacity (at 24”)	2,756 lb	2310 lbs

R3 Turf - Rear	44X18-20	Not Published
R3 Turf - Front	29X12.50-15	Not Published
Tire Size & Options	Standard R1; Option 1 R4; Option 2 R3; LSW option (R3)	Standard tire size
R4 Industrial - Rear	4.6 gal-24	Not Published
R4 Industrial - Front	10-16.5	Not Published
R1 Agricultural - Rear	14.9-24	14.9-26
R1 Agricultural - Front	8.3-16	DT (2WD): 2 gal-15; DT (4WD), HST (4WD): 9.5-16

Coolant Capacity	8.7 qt	Not Published
Crankcase Capacity	8.7 qt	Not Published
Fuel Tank Capacity	13.5 gal	ROPS: 13.5 gal; CAB: 11.9 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	11.4 gal	Not Published

Loader Lift Height	112.7 in	111.2 in
Loader Breakout Force	3171 lb (14107 N)	3102 lb (13798 N)
Quick Attach Loader System	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)	1065A: 2-Lever Quick Coupler for Loader Attachment
Loader Lift Capacity (Full Height)	2361 lb	2275 lb

Clutch	GST (4WD): Dry type single stage; HST (4WD), HSTC (4WD, CAB): N/A	DT (2WD/4WD): Dry single plate; HST (4WD): No clutch
No. of Speeds	GST (4WD): 12Fx8R; HST (4WD), HSTC (4WD, CAB): 3-range, 6 speeds (H-DS), infinitely variable in each	DT (2WD/4WD): 8F/8R; HST (4WD): 3-range
Transmission Type	GST (4WD): Glide Shift; HST (4WD), HSTC (4WD, CAB): Hydrostatic	DT (2WD/4WD): 8-speed gear-drive (synchronized shuttle); HST (4WD): 3-range hydrostatic (HST)
Max Travel Speed (Forward)	GST (4WD): 16.0 mph; HST (4WD), HSTC (4WD, CAB): 16.8 mph	DT (2WD/4WD): 17.3 mph; HST (4WD): 17.7 mph
Max Travel Speed (Reverse)	GST (4WD): 15.2 mph; HST (4WD), HSTC (4WD, CAB): 15.1 mph	DT (2WD/4WD): 15.9 mph; HST (4WD): 16.0 mph
Differential Lock & Limited Slip Options	Rear differential lock, standard	Rear differential lock standard (mechanical)

Brakes	Wet disc type, mechanically activated	Mechanical wet disc
Steering	Hydrostatic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	Not Published
Drawbar Capacity	1,433 lbs.	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	High-back suspension seat (optional arm rests)

Wheelbase	74.6 in	74.6 in
Overall Width	66.5 in	69.7 in
Ground Clearance	14.4 in	15.2 in
Height to Top of ROPS	GST (4WD), HST (4WD): 97.6 in; HSTC (4WD, CAB): Not Applicable	95.7 in
Height to Top of Cab Model	GST (4WD), HST (4WD): Not Applicable; HSTC (4WD, CAB): 91.9 in	92.7 in
Height to Top of ROPS (folded)	GST (4WD), HST (4WD): 91.1 in; HSTC (4WD, CAB): Not Applicable	Not Published
Min. Turn Radius without Brakes	8.9 ft (2.7 m)	Not Published
Overall Length with 3-Point Hitch	129.5 in	Not Published

Kubota L4760 vs Kubota MX5400: Quick Answers

Which has more horsepower, the Kubota L4760 or the Kubota MX5400?: The Kubota MX5400 leads on engine hp at 55.5 hp hp, compared to 49 hp hp for the Kubota L4760.
Which has more PTO horsepower, the Kubota L4760 or the Kubota MX5400?: The Kubota MX5400 leads on pto hp at 46.5 hp hp, compared to 41 hp hp for the Kubota L4760.
Which has more loader lift capacity, the Kubota L4760 or the Kubota MX5400?: The Kubota L4760 leads on loader lift at 2,361 lb lb, compared to 2,275 lb lb for the Kubota MX5400.
Which has more three-point hitch lift capacity, the Kubota L4760 or the Kubota MX5400?: The Kubota L4760 leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,310 lb lb for the Kubota MX5400.
