Kubota L4802 vs Kubota L4802F

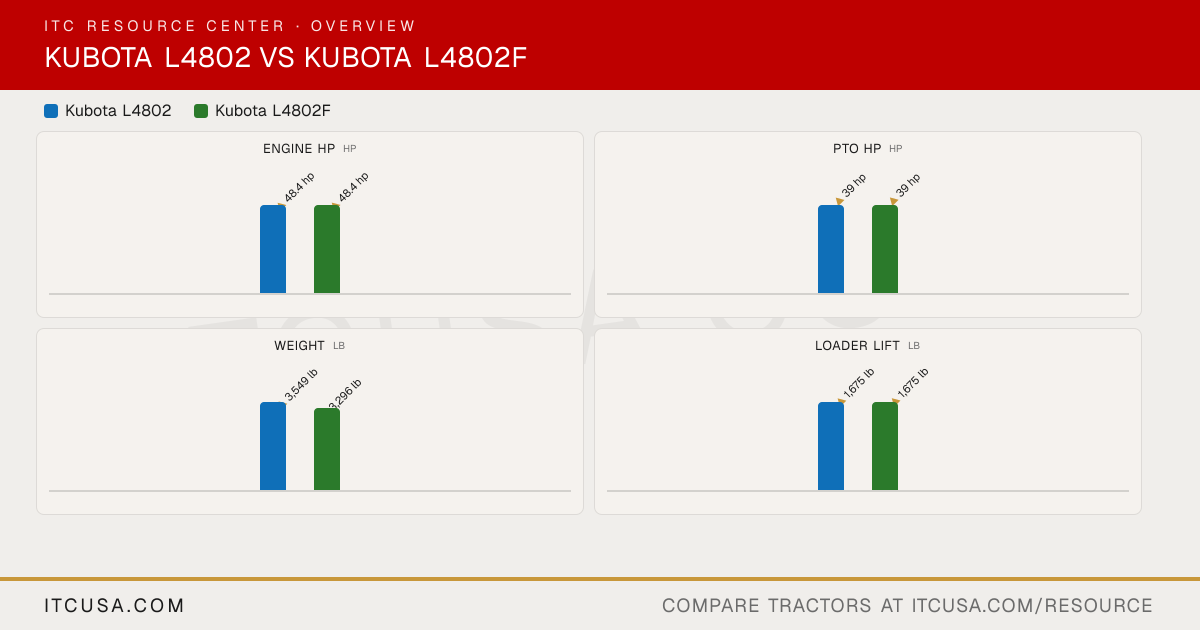

Across 8 measurable specs, the Kubota L4802 leads 2 categories to 0 (6 tied). Machine pages: Kubota L4802 and Kubota L4802F.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4802	KubotaL4802F

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V2403-CR-E5	V2403-CR-E5
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	4	4
Displacement	148.5 in³	148.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48.4 hp	48.4 hp
PTO Power	39 hp	39 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry type, primary and secondary element	Dry type, primary and secondary element
Fuel System	Direct injection	Direct injection
Alternator	45 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	7.8 gpm	7.8 gpm
Steering Flow	4.7 gpm	4.7 gpm
Total Hydraulic Flow	12.5 gpm (7.8 + 4.7, computed)	12.5 gpm (7.8 + 4.7, computed)
Overall Hydraulic Pump Flow	12.5 gpm (7.8 + 4.7, computed)	12.5 gpm (7.8 + 4.7, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Optional: double acting valve, or double acting valve with float position (float valve as second segment only)	Optional: double acting valve, or double acting valve with float position (float valve as second segment only)
▶Fluid Capacity
Fuel Tank Capacity	13.5 gal	13.5 gal
Coolant Capacity	6.9 qt	6.9 qt
Crankcase Capacity	8.7 qt	8.7 qt
Transmission / Hydraulic System Capacity	10.6 gal	10.6 gal
Front Axle Fluid Capacity	6.9 qt	Not Published
▶PTO & Hitch
PTO Type	Live independent PTO with hydraulic clutch	Live independent PTO with hydraulic clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	SAE Category I	SAE Category I
Hitch Lift Capacity	2870 lb	2870 lb
Hitch Lift Capacity (at 24”)	2320 lb	2320 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission (3-range)	Constant mesh with synchronized shuttle
No. of Speeds	3-range	8 forward, 8 reverse
Max Travel Speed (Forward)	15.8 mph	14.9 mph
Max Travel Speed (Reverse)	14.2 mph	14.3 mph
Clutch	Not Applicable	Dry type single stage
Differential Lock & Limited Slip Options	Rear differential lock, pedal operated	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Mechanical, wet disc type	Mechanical, wet disc type
Seat Suspension & Adjustability	Suspension seat with fore/aft travel adjustment and suspension tension adjustment	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	Cast-iron front axle	Cast-iron front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1430 lb	1430 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	120.3 in (without 3-point hitch)	122.8 in (without 3-point hitch)
Overall Width	62.2 in	62.2 in
Wheelbase	72.6 in	72.8 in
Ground Clearance	15.2 in	15.2 in
Min. Turn Radius without Brakes	8.5 ft (with brake applied)	8.9 ft (with brake applied)
Height to Top of ROPS	91.7 in	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	3549 lb	3296 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural; R3 Turf
R1 Agricultural - Front	8.3-16	7.5L-15
R1 Agricultural - Rear	14.9-24	14.9-24
R3 Turf - Front	27X10.5-15	27X8.50-15
R3 Turf - Rear	44X18-20	44X18-20
R4 Industrial - Front	10.0-16.5	Not Published
R4 Industrial - Rear	17.5L-24	Not Published
▶Loader & Attachments
Quick Attach Loader System	LA766 2-Lever Quick Coupler	LA766 2-Lever Quick Coupler
Loader Model	LA766	LA766
Loader Lift Height	105.2 in	105.2 in
Loader Lift Capacity (Full Height)	1675 lb	1675 lb
Loader Breakout Force	Not Published	Not Published
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00 With LA766 loader	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00 With LA766 loader

Find a Kubota dealer near you→

Kubota L4802 vs Kubota L4802F: Quick Answers

Which has more horsepower, the Kubota L4802 or the Kubota L4802F?

They are effectively tied: both machines are rated at 48.4 hp hp for engine hp.

Which has more PTO horsepower, the Kubota L4802 or the Kubota L4802F?

They are effectively tied: both machines are rated at 39 hp hp for pto hp.

Which is heavier, the Kubota L4802 or the Kubota L4802F?

The Kubota L4802 leads on weight at 3,549 lb lb, compared to 3,296 lb lb for the Kubota L4802F.

Which has more loader lift capacity, the Kubota L4802 or the Kubota L4802F?

They are effectively tied: both machines are rated at 1,675 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Kubota L4802 or the Kubota L4802F?

They are effectively tied: both machines are rated at 2,320 lb lb for 3-pt lift (24 in).
