Kubota L4802 vs Kubota MX5200
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the Kubota MX5200 leads 7 categories to 1. Machine pages: Kubota L4802 and Kubota MX5200.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

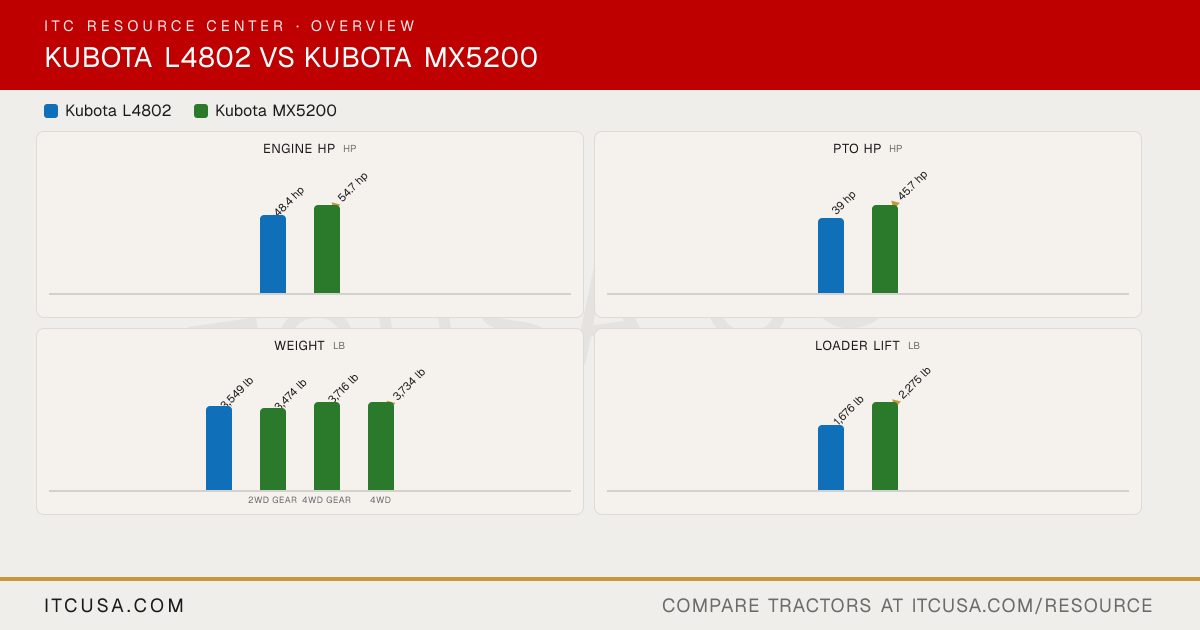

Category Verdict
| Spec | Kubota L4802 | Kubota MX5200 |
|---|---|---|
| Engine HP (hp) | 48.4 hp | ▲ 54.7 hp |
| PTO HP (hp) | 39 hp | ▲ 45.7 hp |
| Weight (lb) | 3,549 lb | ▲ 3,734 lb |
| Loader Lift (lb) | 1,676 lb | ▲ 2,275 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 2,320 lb | 2,310 lb |
| Lift Height (in) | 105.2 in | ▲ 111.2 in |
| Hydraulic Flow (gpm) | 12.5 gpm | ▲ 14.4 gpm |
| Travel Speed (mph) | 15.8 mph | ▲ 16 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaL4802 | KubotaMX5200 |
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|---|---|
| Engine Model | V2403-CR-E5 | V2403-CR-TE4 |
| Engine Type | Direct injection, vertical, water-cooled 4-cycle, diesel | 4-cylinder, turbocharged, common-rail, liquid-cooled diesel |
| No. of Cylinders | 4 | 4 |
| Displacement | 148.5 in³ | 148.6 in³ |
| Rated Engine Speed | 2600 rpm | 2700 rpm |
| Engine Power (Gross) | 48.4 hp | 54.7 hp |
| PTO Power | 39 hp | F (2WD gear), DT (4WD gear): 45.7 hp; HST (4WD): 44.2 hp |
| Engine Emissions Constraints | Not Published | Tier 4 |
| Cooling System Type | Water-cooled | Liquid-cooled |
| Air Cleaner | Dry type, primary and secondary element | Dry, dual element |
| Fuel System | Direct injection | Common rail direct injection |
| Alternator | 45 A, 12 V | 45 A |
Kubota L4802 vs Kubota MX5200: Quick Answers
- Which has more horsepower, the Kubota L4802 or the Kubota MX5200?
- The Kubota MX5200 leads on engine hp at 54.7 hp hp, compared to 48.4 hp hp for the Kubota L4802.
- Which has more PTO horsepower, the Kubota L4802 or the Kubota MX5200?
- The Kubota MX5200 leads on pto hp at 45.7 hp hp, compared to 39 hp hp for the Kubota L4802.
- Which is heavier, the Kubota L4802 or the Kubota MX5200?
- The Kubota MX5200 leads on weight at 3,734 lb lb, compared to 3,549 lb lb for the Kubota L4802.
- Which has more loader lift capacity, the Kubota L4802 or the Kubota MX5200?
- The Kubota MX5200 leads on loader lift at 2,275 lb lb, compared to 1,676 lb lb for the Kubota L4802.
- Which has more three-point hitch lift capacity, the Kubota L4802 or the Kubota MX5200?
- The Kubota L4802 leads on 3-pt lift (24 in) at 2,320 lb lb, compared to 2,310 lb lb for the Kubota MX5200.
