Kubota L4802 vs Massey Ferguson 2705E

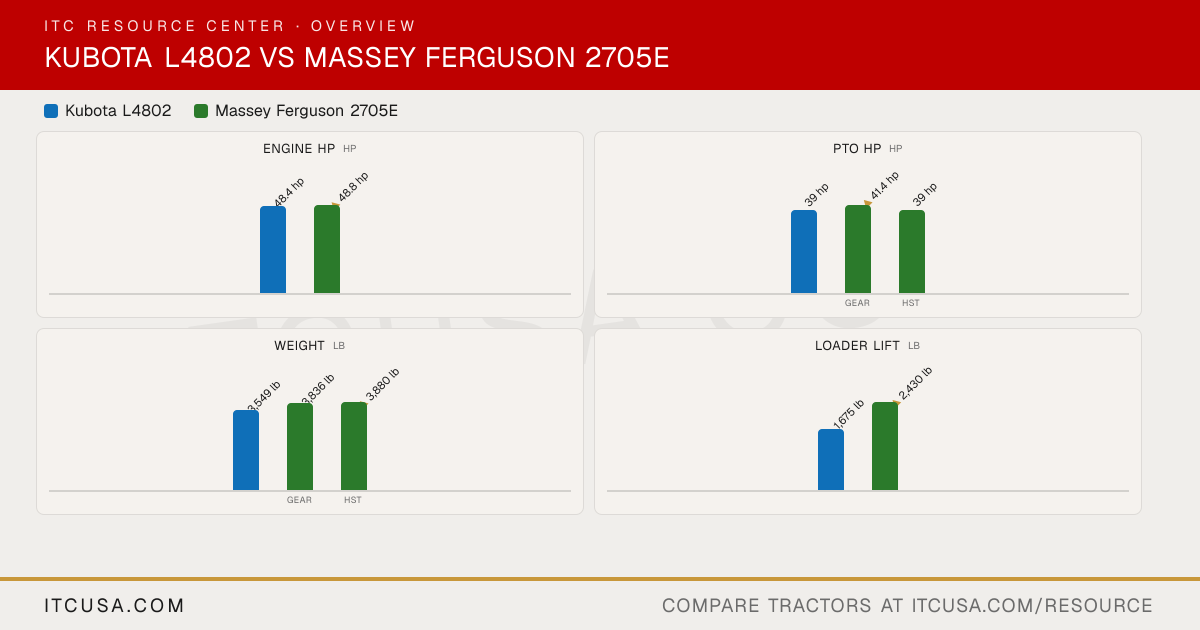

Across 7 measurable specs, the Massey Ferguson 2705E leads 6 categories to 1. Machine pages: Kubota L4802 and Massey Ferguson 2705E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4802	Massey Ferguson2705E

▶Engine
Engine Manufacturer	Kubota	Shibaura
Engine Model	V2403-CR-E5	N4LDI-T
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	4-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	4	4
Displacement	148.5 in³	135.2 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48.4 hp	48.8 hp
PTO Power	39 hp	Gear: 41.4 hp; HST: 39 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry type, primary and secondary element	Primary and secondary elements
Fuel System	Direct injection	Electronically controlled high-pressure common rail
Alternator	45 A, 12 V	90 A
▶Hydraulics
Pump Type	Not Published	Gear-type single pump
Implement Flow	7.8 gpm	Not Published
Steering Flow	4.7 gpm	Not Published
Total Hydraulic Flow	12.5 gpm (7.8 + 4.7, computed)	12.4 gpm
Overall Hydraulic Pump Flow	12.5 gpm (7.8 + 4.7, computed)	12.4 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Optional: double acting valve, or double acting valve with float position (float valve as second segment only)	1 factory-installed; up to 3 field-installed
▶Fluid Capacity
Fuel Tank Capacity	13.5 gal	14 gal
Coolant Capacity	6.9 qt	1.66 gal
Crankcase Capacity	8.7 qt	1.53 gal
Transmission / Hydraulic System Capacity	10.6 gal	10.04 gal
Front Axle Fluid Capacity	6.9 qt	2.21 gal
▶PTO & Hitch
PTO Type	Live independent PTO with hydraulic clutch	Independent, electro-hydraulically engaged
PTO Rear	540 rpm	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	No mid-PTO
Category, 3-Point Hitch	SAE Category I	Category I and II
Hitch Lift Capacity	2870 lb	Not Published
Hitch Lift Capacity (at 24”)	2320 lb	2,425 lb
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission (3-range)	Gear: 8 x 8 (4-speed x 2 sub-range) Syncro-Shuttle; HST: 3-range mechanical HST
No. of Speeds	3-range	Gear: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range)
Max Travel Speed (Forward)	15.8 mph	Not Published
Max Travel Speed (Reverse)	14.2 mph	Not Published
Clutch	Not Applicable	Dry single-disc
Differential Lock & Limited Slip Options	Rear differential lock, pedal operated	Mechanical engagement (Gear: right side heel pedal; HST: left side heel pedal)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Mechanical, wet disc type	Internal wet disc, 2 pedals (Gear: right hand; HST: left hand)
Seat Suspension & Adjustability	Suspension seat with fore/aft travel adjustment and suspension tension adjustment	Suspended vinyl seat with retractable seatbelt
Front Axle Type	Cast-iron front axle	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1430 lb	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	120.3 in (without 3-point hitch)	133 in
Overall Width	62.2 in	74 in
Wheelbase	72.6 in	78 in
Ground Clearance	15.2 in	Not Published
Min. Turn Radius without Brakes	8.5 ft (with brake applied)	Not Published
Height to Top of ROPS	91.7 in	104 in
Height to Top of ROPS (folded)	Not Published	80 in
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	3549 lb	Gear: 3,836 lb; HST: 3,880 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 ag: 9.5x16 front, 13.6x28 or 16.9x24 rear; R3 turf: 27x10.50-15 front, 44x18.00-20 rear; R4 industrial: 10-16.5 front, 17.5L-24 rear
R1 Agricultural - Front	8.3-16	9.5x16
R1 Agricultural - Rear	14.9-24	13.6x28; 16.9x24
R3 Turf - Front	27X10.5-15	27x10.50-15
R3 Turf - Rear	44X18-20	44x18.00-20
R4 Industrial - Front	10.0-16.5	10-16.5
R4 Industrial - Rear	17.5L-24	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	LA766 2-Lever Quick Coupler	L135E: optional skid steer tool carrier
Loader Model	LA766	L135E
Loader Lift Height	105.2 in	L135E: 110.2 in
Loader Lift Capacity (Full Height)	1675 lb	L135E: 2,430 lb
Loader Breakout Force	Not Published	L135E: 2,870 lb
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	5-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00 With LA766 loader	None tagged yet

Find a Kubota dealer near you→Find a dealer near you→

Kubota L4802 vs Massey Ferguson 2705E: Quick Answers

Which has more horsepower, the Kubota L4802 or the Massey Ferguson 2705E?

The Massey Ferguson 2705E leads on engine hp at 48.8 hp hp, compared to 48.4 hp hp for the Kubota L4802.

Which has more PTO horsepower, the Kubota L4802 or the Massey Ferguson 2705E?

The Massey Ferguson 2705E leads on pto hp at 41.4 hp hp, compared to 39 hp hp for the Kubota L4802.

Which is heavier, the Kubota L4802 or the Massey Ferguson 2705E?

The Massey Ferguson 2705E leads on weight at 3,880 lb lb, compared to 3,549 lb lb for the Kubota L4802.

Which has more loader lift capacity, the Kubota L4802 or the Massey Ferguson 2705E?

The Massey Ferguson 2705E leads on loader lift at 2,430 lb lb, compared to 1,675 lb lb for the Kubota L4802.

Which has more three-point hitch lift capacity, the Kubota L4802 or the Massey Ferguson 2705E?

The Massey Ferguson 2705E leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,320 lb lb for the Kubota L4802.
