Bad Boy Tractors 5045 Cab vs Massey Ferguson 2705E

Across 8 measurable specs, the Bad Boy Tractors 5045 Cab leads 4 categories to 3 (1 tied). Machine pages: Bad Boy Tractors 5045 Cab and Massey Ferguson 2705E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	Massey Ferguson2705E

▶Engine
Engine Manufacturer	TYM	Shibaura
Engine Model	A2300N3	N4LDI-T
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	4-cylinder, turbocharged, liquid-cooled diesel
No. of Cylinders	4	4
Displacement	139.5 in³	135.2 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48 hp	48.8 hp
PTO Power	38.4 hp	Gear: 41.4 hp; HST: 39 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Primary and secondary elements
Fuel System	Not Published	Electronically controlled high-pressure common rail
Alternator	70 A, 12 V	90 A
▶Hydraulics
Pump Type	Not Published	Gear-type single pump
Implement Flow	10.7 gpm	Not Published
Steering Flow	5 gpm	Not Published
Total Hydraulic Flow	15.7 gpm	12.4 gpm
Overall Hydraulic Pump Flow	15.7 gpm	12.4 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	4 ports	0
No. of Optional Remote Valves	Not Published	1 factory-installed; up to 3 field-installed
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	14 gal
Coolant Capacity	1.56 gal	1.66 gal
Crankcase Capacity	1.20 gal	1.53 gal
Transmission / Hydraulic System Capacity	10.04 gal	10.04 gal
Front Axle Fluid Capacity	1.90 gal	2.21 gal
▶PTO & Hitch
PTO Type	Independent	Independent, electro-hydraulically engaged
PTO Rear	540 / 540E rpm	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Not Published	No mid-PTO
Category, 3-Point Hitch	Category 1	Category I and II
Hitch Lift Capacity	3,306 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	Gear: 8 x 8 (4-speed x 2 sub-range) Syncro-Shuttle; HST: 3-range mechanical HST
No. of Speeds	4 range (HST)	Gear: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range)
Max Travel Speed (Forward)	19.5 mph	Not Published
Max Travel Speed (Reverse)	19.5 mph	Not Published
Clutch	None (HST)	Dry single-disc
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical engagement (Gear: right side heel pedal; HST: left side heel pedal)
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Internal wet disc, 2 pedals (Gear: right hand; HST: left hand)
Seat Suspension & Adjustability	Heated leather seat (cab)	Suspended vinyl seat with retractable seatbelt
Front Axle Type	Selectable 4WD	Cast steel 4WD front axle with center drive line and bevel-gear final drives
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	133 in
Overall Width	64.9 in	74 in
Wheelbase	71.1 in	78 in
Ground Clearance	15.5 in	Not Published
Min. Turn Radius without Brakes	110.2 in (with brake applied)	Not Published
Height to Top of ROPS	Not Published	104 in
Height to Top of ROPS (folded)	Not Published	80 in
Height to Top of Cab Model	97.0 in	Not Published
▶Weight
Tractor Weight (Base)	4,349 lb	Gear: 3,836 lb; HST: 3,880 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	R1 ag: 9.5x16 front, 13.6x28 or 16.9x24 rear; R3 turf: 27x10.50-15 front, 44x18.00-20 rear; R4 industrial: 10-16.5 front, 17.5L-24 rear
R1 Agricultural - Front	9.5-16	9.5x16
R1 Agricultural - Rear	13.6-26	13.6x28; 16.9x24
R3 Turf - Front	Not Published	27x10.50-15
R3 Turf - Rear	Not Published	44x18.00-20
R4 Industrial - Front	Not Published	10-16.5
R4 Industrial - Rear	Not Published	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	L135E: optional skid steer tool carrier
Loader Model	BBL500	L135E
Loader Lift Height	106.6 in	L135E: 110.2 in
Loader Lift Capacity (Full Height)	2,700 lb	L135E: 2,430 lb
Loader Breakout Force	3,660 lb	L135E: 2,870 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	5-year powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a dealer near you→

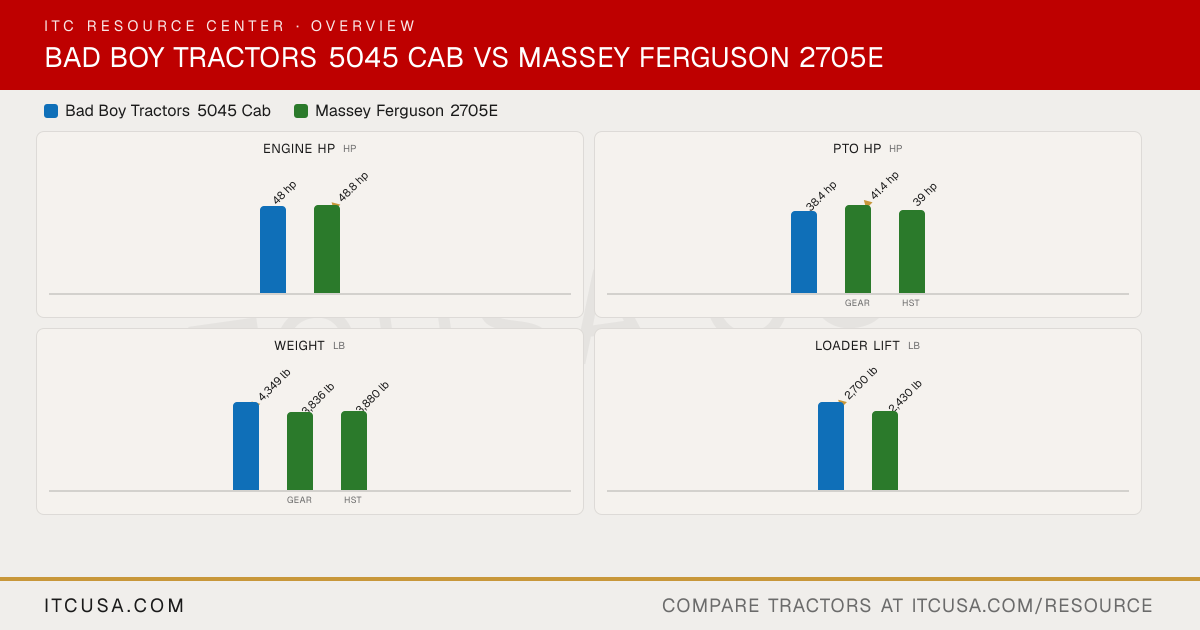

Bad Boy Tractors 5045 Cab vs Massey Ferguson 2705E: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the Massey Ferguson 2705E?

The Massey Ferguson 2705E leads on engine hp at 48.8 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5045 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the Massey Ferguson 2705E?

The Massey Ferguson 2705E leads on pto hp at 41.4 hp hp, compared to 38.4 hp hp for the Bad Boy Tractors 5045 Cab.

Which is heavier, the Bad Boy Tractors 5045 Cab or the Massey Ferguson 2705E?

The Bad Boy Tractors 5045 Cab leads on weight at 4,349 lb lb, compared to 3,880 lb lb for the Massey Ferguson 2705E.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the Massey Ferguson 2705E?

The Bad Boy Tractors 5045 Cab leads on loader lift at 2,700 lb lb, compared to 2,430 lb lb for the Massey Ferguson 2705E.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the Massey Ferguson 2705E?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).
