Kubota L4802F vs Kubota L5460

Across 8 measurable specs, the Kubota L5460 leads 8 categories to 0. Machine pages: Kubota L4802F and Kubota L5460.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

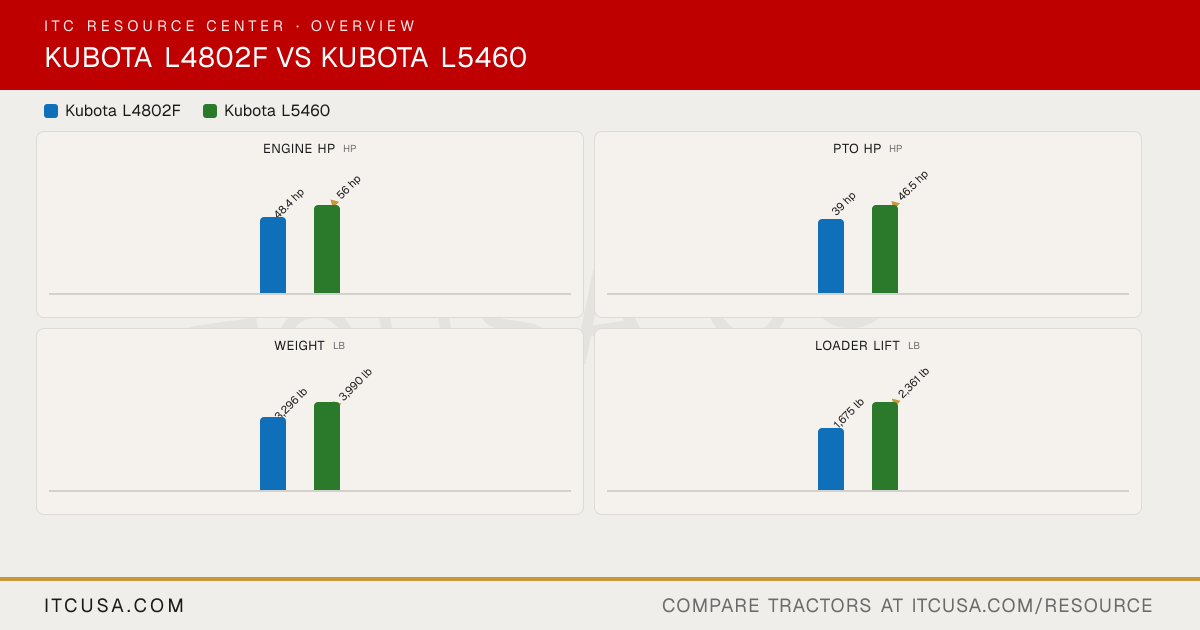

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4802F	KubotaL5460

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V2403-CR-E5	V2403-CR-TE4-GL2
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged
No. of Cylinders	4	4
Displacement	148.5 in³	148.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48.4 hp	56 hp
PTO Power	39 hp	46.5 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry type, primary and secondary element	Dry paper, dual element
Fuel System	Direct injection	Electronic Common Rail System (CRS)
Alternator	45 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Not Published	Tandem pump - gear type
Implement Flow	7.8 gpm	9.4 gpm
Steering Flow	4.7 gpm	4.7 gpm
Total Hydraulic Flow	12.5 gpm (7.8 + 4.7, computed)	14.1 gpm
Overall Hydraulic Pump Flow	12.5 gpm (7.8 + 4.7, computed)	14.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Optional: double acting valve, or double acting valve with float position (float valve as second segment only)	Optional, up to 3 (double-acting valve or float detent valve options, any position)
▶Fluid Capacity
Fuel Tank Capacity	13.5 gal	13.5 gal
Coolant Capacity	6.9 qt	8.7 qt
Crankcase Capacity	8.7 qt	9.9 qt
Transmission / Hydraulic System Capacity	10.6 gal	11.9 gal
Front Axle Fluid Capacity	Not Published	8.9 qt
▶PTO & Hitch
PTO Type	Live independent PTO with hydraulic clutch	Live independent (hydraulic clutch)
PTO Rear	540 rpm	540 rpm @ 2400 engine rpm
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	SAE Category I	SAE Category 1 & 2
Hitch Lift Capacity	2870 lb	3,858 lb
Hitch Lift Capacity (at 24”)	2320 lb	2,976 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Constant mesh with synchronized shuttle	Hydrostatic transmission
No. of Speeds	8 forward, 8 reverse	3-range, 6 speeds (H-DS), infinitely variable in each
Max Travel Speed (Forward)	14.9 mph	16.8 mph
Max Travel Speed (Reverse)	14.3 mph	15.2 mph
Clutch	Dry type single stage	Not Published
Differential Lock & Limited Slip Options	Rear differential lock, pedal operated	Rear differential lock, standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Mechanical, wet disc type	Wet disc type, mechanically activated
Seat Suspension & Adjustability	Suspension seat with fore/aft travel adjustment and suspension tension adjustment	Suspension seat with fore/aft travel adjustment, suspension adjust knob, backrest tilt adjustment, swivel and arm rest
Front Axle Type	Cast-iron front axle	4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1430 lb	1,433 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	122.8 in (without 3-point hitch)	135.0 in
Overall Width	62.2 in	67.3 in
Wheelbase	72.8 in	75.4 in
Ground Clearance	15.2 in	15.4 in
Min. Turn Radius without Brakes	8.9 ft (with brake applied)	9.2 ft (with brake applied)
Height to Top of ROPS	91.7 in	98.0 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Applicable
▶Weight
Tractor Weight (Base)	3296 lb	3,990 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf	Standard R1 (9.5-16 / 14.9-26); options: R1 (9.5-16 / 13.6-28), R4 (10-16.5 / 17.5L-24), R3 (29x12.50-15 / 44x18-20), LSW R3 (LSW305R343 / LSW610R470)
R1 Agricultural - Front	7.5L-15	9.5-16
R1 Agricultural - Rear	14.9-24	14.9-26; 13.6-28
R3 Turf - Front	27X8.50-15	29X12.50-15
R3 Turf - Rear	44X18-20	44X18-20
R4 Industrial - Front	Not Published	10-16.5
R4 Industrial - Rear	Not Published	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	LA766 2-Lever Quick Coupler	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Model	LA766	LA1055
Loader Lift Height	105.2 in	112.7 in
Loader Lift Capacity (Full Height)	1675 lb	2361 lb
Loader Breakout Force	Not Published	3171 lbf (19.7 in forward of pivot pin)
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00 With LA766 loader	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00

Find a Kubota dealer near you→

Kubota L4802F vs Kubota L5460: Quick Answers

Which has more horsepower, the Kubota L4802F or the Kubota L5460?

The Kubota L5460 leads on engine hp at 56 hp hp, compared to 48.4 hp hp for the Kubota L4802F.

Which has more PTO horsepower, the Kubota L4802F or the Kubota L5460?

The Kubota L5460 leads on pto hp at 46.5 hp hp, compared to 39 hp hp for the Kubota L4802F.

Which is heavier, the Kubota L4802F or the Kubota L5460?

The Kubota L5460 leads on weight at 3,990 lb lb, compared to 3,296 lb lb for the Kubota L4802F.

Which has more loader lift capacity, the Kubota L4802F or the Kubota L5460?

The Kubota L5460 leads on loader lift at 2,361 lb lb, compared to 1,675 lb lb for the Kubota L4802F.

Which has more three-point hitch lift capacity, the Kubota L4802F or the Kubota L5460?

The Kubota L5460 leads on 3-pt lift (24 in) at 2,976 lb lb, compared to 2,320 lb lb for the Kubota L4802F.
