Kubota L4802F vs Kubota M4900
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 7 measurable specs, the Kubota M4900 leads 7 categories to 0. Machine pages: Kubota L4802F and Kubota M4900.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

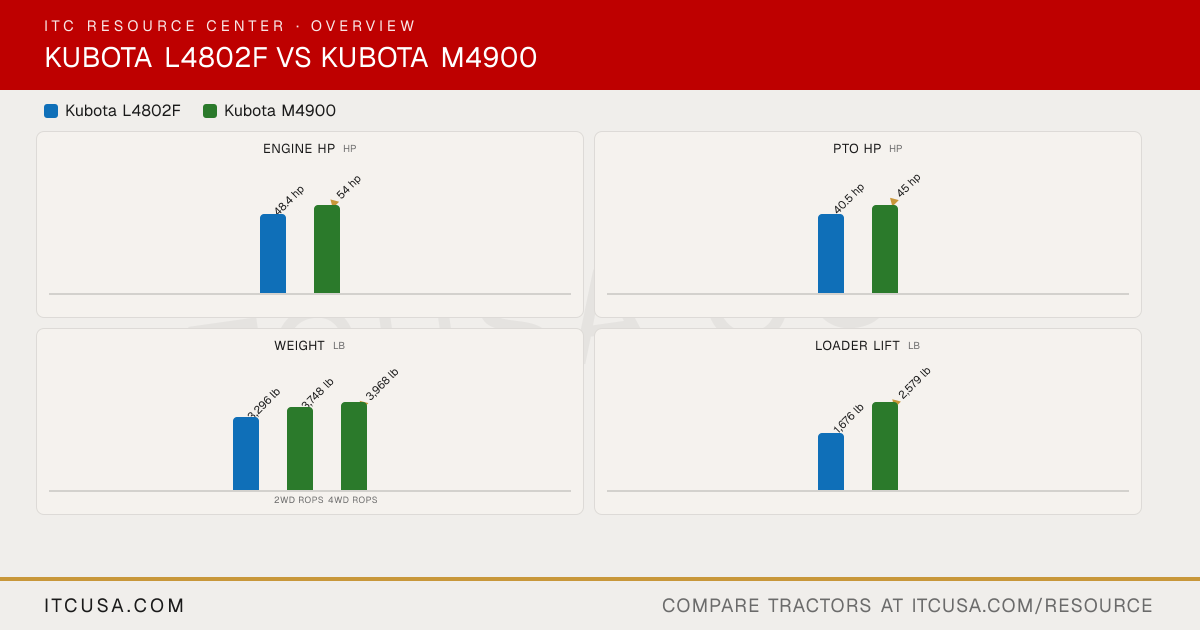

Category Verdict
| Spec | Kubota L4802F | Kubota M4900 |
|---|---|---|
| Engine HP (hp) | 48.4 hp | ▲ 54 hp |
| PTO HP (hp) | 40.5 hp | ▲ 45 hp |
| Weight (lb) | 3,296 lb | ▲ 3,968 lb |
| Loader Lift (lb) | 1,676 lb | ▲ 2,579 lb |
| 3-Pt Lift (24 in) (lb) | 2,320 lb | ▲ 3,307 lb |
| Lift Height (in) | 105.2 in | ▲ 115.6 in |
| Breakout Force (lbf) | n/a | 3,330 lbf |
| Hydraulic Flow (gpm) | 12.5 gpm | ▲ 17.1 gpm |
| Travel Speed (mph) | 14.9 mph | n/a |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KubotaL4802F | KubotaM4900 |
|---|
| Engine Manufacturer | Kubota | Kubota |
|---|---|---|
| Engine Model | V2403-CR-E5 | F2803-ELA |
| Engine Type | Direct injection, vertical, water-cooled 4-cycle, diesel | Vertical, water-cooled, 4-cycle diesel, 5-cylinder |
| No. of Cylinders | 4 | 5 |
| Displacement | 148.5 in³ | 167.6 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 48.4 hp | 54 hp |
| PTO Power | 40.5 hp | 45 hp |
| Engine Emissions Constraints | Not Published | Not Published |
| Cooling System Type | Water-cooled | Water-cooled |
| Air Cleaner | Dry type, primary and secondary element | Dual dry elements |
| Fuel System | Direct injection | Not Published |
| Alternator | 45 A, 12 V | Not Published |
Kubota L4802F vs Kubota M4900: Quick Answers
- Which has more horsepower, the Kubota L4802F or the Kubota M4900?
- The Kubota M4900 leads on engine hp at 54 hp hp, compared to 48.4 hp hp for the Kubota L4802F.
- Which has more PTO horsepower, the Kubota L4802F or the Kubota M4900?
- The Kubota M4900 leads on pto hp at 45 hp hp, compared to 40.5 hp hp for the Kubota L4802F.
- Which is heavier, the Kubota L4802F or the Kubota M4900?
- The Kubota M4900 leads on weight at 3,968 lb lb, compared to 3,296 lb lb for the Kubota L4802F.
- Which has more loader lift capacity, the Kubota L4802F or the Kubota M4900?
- The Kubota M4900 leads on loader lift at 2,579 lb lb, compared to 1,676 lb lb for the Kubota L4802F.
- Which has more three-point hitch lift capacity, the Kubota L4802F or the Kubota M4900?
- The Kubota M4900 leads on 3-pt lift (24 in) at 3,307 lb lb, compared to 2,320 lb lb for the Kubota L4802F.
