Kubota L5460 vs Kubota L6060HSTC

Across 9 measurable specs, the Kubota L6060HSTC leads 3 categories to 0 (6 tied). Machine pages: Kubota L5460 and Kubota L6060HSTC.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL5460	KubotaL6060HSTC

▶Engine
Engine Manufacturer	Kubota	Kubota
Engine Model	V2403-CR-TE4-GL2	V2403-CR-E4-GL6
Engine Type	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged
No. of Cylinders	4	4
Displacement	148.5 in³	148.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	56 hp	62 hp
PTO Power	46.5 hp	53 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry paper, dual element	Dry paper, dual element
Fuel System	Electronic Common Rail System (CRS)	Electronic Common Rail System (CRS)
Alternator	45 A, 12 V	60 A, 12 V
▶Hydraulics
Pump Type	Tandem pump - gear type	Tandem pump - gear type
Implement Flow	9.4 gpm	9.4 gpm
Steering Flow	4.7 gpm	4.7 gpm
Total Hydraulic Flow	14.1 gpm	14.1 gpm
Overall Hydraulic Pump Flow	14.1 gpm	14.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Optional, up to 3 (double-acting valve or float detent valve options, any position)	Optional, up to 3 (double-acting valve or float detent valve options, any position)
▶Fluid Capacity
Fuel Tank Capacity	13.5 gal	13.5 gal
Coolant Capacity	8.7 qt	8.7 qt
Crankcase Capacity	9.9 qt	9.9 qt
Transmission / Hydraulic System Capacity	11.9 gal	11.9 gal
Front Axle Fluid Capacity	8.9 qt	8.9 qt
▶PTO & Hitch
PTO Type	Live independent (hydraulic clutch)	Live independent (hydraulic clutch)
PTO Rear	540 rpm @ 2400 engine rpm	540 rpm @ 2400 engine rpm
Mid-PTO Availability	Optional	Optional
Category, 3-Point Hitch	SAE Category 1 & 2	SAE Category 1 & 2
Hitch Lift Capacity	3,858 lb	3,858 lb
Hitch Lift Capacity (at 24”)	2,976 lb	2,976 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic transmission	Hydrostatic transmission
No. of Speeds	3-range, 6 speeds (H-DS), infinitely variable in each	3-range, 6 speeds (H-DS), infinitely variable in each
Max Travel Speed (Forward)	16.8 mph	16.8 mph
Max Travel Speed (Reverse)	15.2 mph	15.2 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Rear differential lock, standard	Rear differential lock, standard
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc type, mechanically activated	Wet disc type, mechanically activated
Seat Suspension & Adjustability	Suspension seat with fore/aft travel adjustment, suspension adjust knob, backrest tilt adjustment, swivel and arm rest	Suspension seat with fore/aft travel adjustment, suspension adjust knob, backrest tilt adjustment, swivel and arm rest
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1,433 lb	1,433 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	135.0 in	135.0 in
Overall Width	67.3 in	67.3 in
Wheelbase	75.4 in	75.4 in
Ground Clearance	15.4 in	15.4 in
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	9.2 ft (with brake applied)
Height to Top of ROPS	98.0 in	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Applicable	92.5 in
▶Weight
Tractor Weight (Base)	3,990 lb	4,365 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	Standard R1 (9.5-16 / 14.9-26); options: R1 (9.5-16 / 13.6-28), R4 (10-16.5 / 17.5L-24), R3 (29x12.50-15 / 44x18-20), LSW R3 (LSW305R343 / LSW610R470)	Standard R1 (9.5-16 / 14.9-26); options: R1 (9.5-16 / 13.6-28), R4 (10-16.5 / 17.5L-24), R3 (29x12.50-15 / 44x18-20), LSW R3 (LSW305R343 / LSW610R470)
R1 Agricultural - Front	9.5-16	9.5-16
R1 Agricultural - Rear	14.9-26; 13.6-28	14.9-26; 13.6-28
R3 Turf - Front	29X12.50-15	29X12.50-15
R3 Turf - Rear	44X18-20	44X18-20
R4 Industrial - Front	10-16.5	10-16.5
R4 Industrial - Rear	17.5L-24	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Model	LA1055	LA1055
Loader Lift Height	112.7 in	112.7 in
Loader Lift Capacity (Full Height)	2361 lb	2361 lb
Loader Breakout Force	3171 lbf (19.7 in forward of pivot pin)	3171 lbf (19.7 in forward of pivot pin)
▶Warranty
Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00	Kubota Grand L60 Series Brush Guard Insert (L3560-L6060) $289.00

Find a Kubota dealer near you→

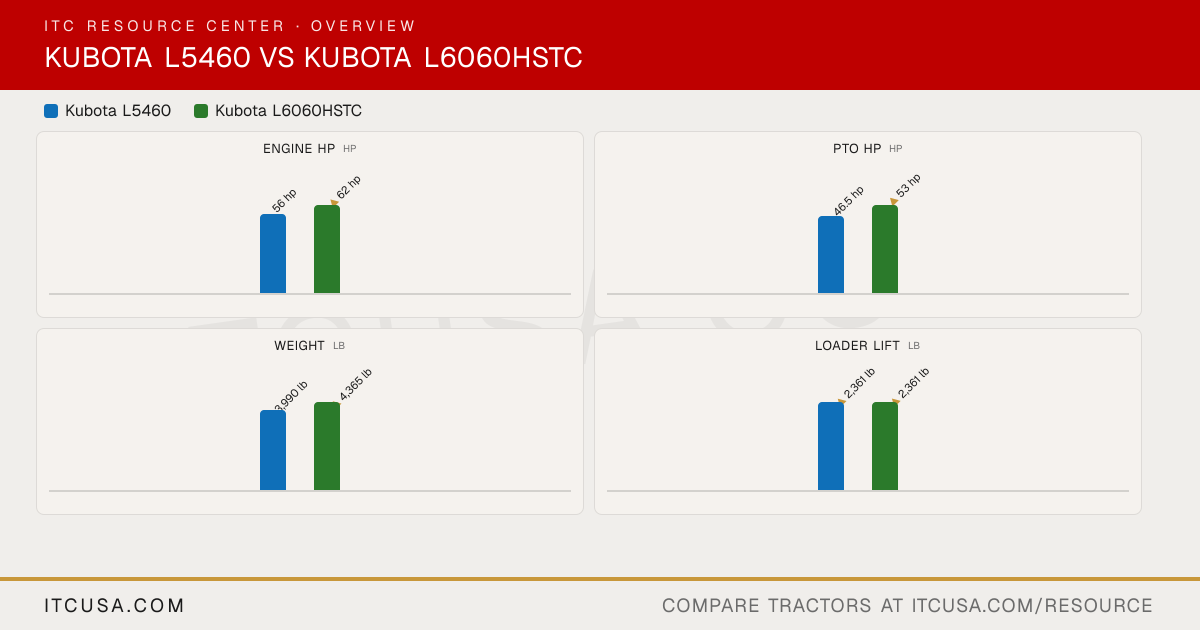

Kubota L5460 vs Kubota L6060HSTC: Quick Answers

Which has more horsepower, the Kubota L5460 or the Kubota L6060HSTC?

The Kubota L6060HSTC leads on engine hp at 62 hp hp, compared to 56 hp hp for the Kubota L5460.

Which has more PTO horsepower, the Kubota L5460 or the Kubota L6060HSTC?

The Kubota L6060HSTC leads on pto hp at 53 hp hp, compared to 46.5 hp hp for the Kubota L5460.

Which is heavier, the Kubota L5460 or the Kubota L6060HSTC?

The Kubota L6060HSTC leads on weight at 4,365 lb lb, compared to 3,990 lb lb for the Kubota L5460.

Which has more loader lift capacity, the Kubota L5460 or the Kubota L6060HSTC?

They are effectively tied: both machines are rated at 2,361 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Kubota L5460 or the Kubota L6060HSTC?

They are effectively tied: both machines are rated at 2,976 lb lb for 3-pt lift (24 in).
