Kubota LX3520 vs Mahindra 1123 HST Cab

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 3 measurable specs, the Kubota LX3520 leads 3 categories to 0. Machine pages: Kubota LX3520 and Mahindra 1123 HST Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota LX3520	Mahindra 1123 HST Cab
Engine HP (hp)	▲ 23.3 hp	22.9 hp
PTO HP (hp)	—	16.8 hp
Weight (lb)	▲ 2,624 lb	2,368 lb
Loader Lift (lb)	—	794 lb
3-Pt Lift (24 in) (lb)	▲ 1,962 lb	771 lb
Lift Height (in)	—	68 in
Breakout Force (lbf)	—	1,433 lbf
Hydraulic Flow (gpm)	—	11.4 gpm
Travel Speed (mph)	—	7.3 mph

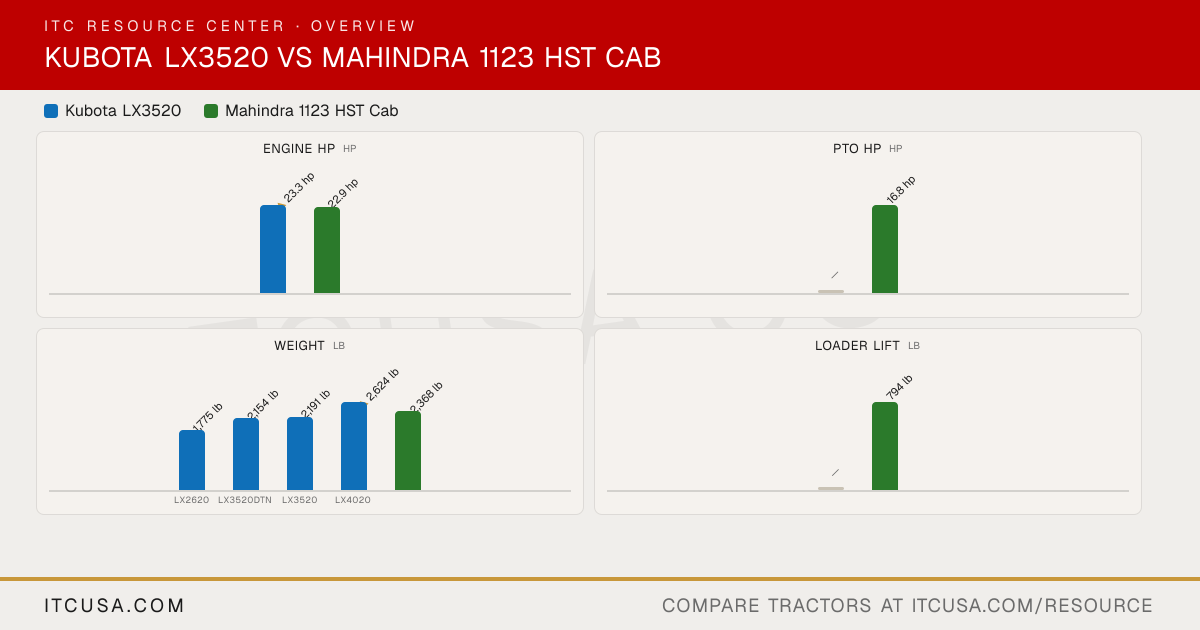

The headline numbers at a glance.

Kubota LX3520Mahindra 1123 HST Cab

Engine HPhp

▲23.3 hp

22.9 hp

PTO HPhp

—

16.8 hp

Weightlb

1,775 lb

2,154 lb

2,191 lb

▲2,624 lb

2,368 lb

LX2620LX3520DTNLX3520LX4020

Loader Liftlb

—

794 lb

3-Pt Lift (24 in)lb

1,819 lb

▲1,962 lb

771 lb

LX2620LX3520/LX4020

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaLX3520	Mahindra1123 HST Cab


PTO Power	28.7 (21.4) HP (kW)	16.8 hp
Air Cleaner	LX2620: 4.5 inch paper filter (with dual filter); LX3520/LX4020: 6 inch paper filter (with dual element)	Not Published
Engine Type	Indirect injection, vertical, water-cooled, 4-cycle diesel and Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger	Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine
Fuel System	Common Rail (CRS) diesel	Indirect Injection
Displacement	77 in³	67.2 in³
No. of Cylinders	4	3
Rated Engine Speed	2500 rpm	3000 rpm
Cooling System Type	Pressurized radiator with radial air flow fan	Water-Cooled
Engine Manufacturer	Kubota	Mitsubishi
Engine Power (Gross)	23.3 hp	22.9 hp
Alternator	—	55 A, 12 V
Engine Emissions Constraints	—	No DPF

Tractor Weight (Base)	LX2620: 1,775 lbs; LX3520DTN: 2,154 lbs; LX3520: 2,191 lbs; LX4020: 2,624 lbs	—
Weight with ROPS and Loader	—	Not Applicable
Weight with Cab and Loader	—	2368 lb

Warranty Length & Coverage	Full warranty: 2 years / 2,000 hours \| Powertrain warranty: 6 years / 2,000 hours	7-Year Limited Powertrain Warranty

Pump Type	Dual pump	Not Published
Total Hydraulic Flow	9.1 (34.5) gpm (l/min.)	11.4 gpm
Hydraulic System Type	Open center	Open Center, full-live hydraulic with position control
System Operating Pressure	Open center system	—
Overall Hydraulic Pump Flow	9.1 (34.5) gpm (l/min.)	11.4 gpm
Steering Flow	—	3.8 gpm
Implement Flow	—	7.6 gpm
Rear Remote Hydraulic Flow	—	Not Published
No. of Optional Remote Valves	—	Single or dual
No. of Standard Remote Valves	—	Not Published

PTO Rear	540 rpm	540 rpm @ 2837 rpm
PTO Type	Independent	Independent Wet Clutch
Lift Control Type	Position control valve	Position Control
Hitch Lift Capacity	2348 (1065) lbs. (kg)	Not Published
Mid-PTO Availability	2460 RPM	Optional; 2500 rpm @ 2837 rpm
Category, 3-Point Hitch	Category I	CAT I with check chains
Hitch Lift Capacity (at 24”)	LX2620: 1,819 lbs; LX3520/LX4020: 1,962 lbs	771 lb

R3 Turf - Rear	16.6-16	26X12-12
R3 Turf - Front	24x8.5-14	18X8.5-10
Tire Size & Options	Front R1: 7-12; R4: 23×8.50-12; R4 large: 25×8.50-14; R14: 23×8.50-12; R14 large: 25×8.50-14; TURF: 24×8.50-14; Rear R1: 12.4-16; R4: 14-17.5; R14: 14-17.5; TURF: 13.6-16; R4 large: 15-19.5; R14 large: 15-19.5	R3 Turf, R4 Industrial
R4 Industrial - Rear	14-17.5 or 15-19.5	26X12-12
R4 Industrial - Front	23x8.5-12 or 25x8.5-14	18X8.5-10
R1 Agricultural - Rear	320/85D16	Not Published
R1 Agricultural - Front	180/85D12	Not Published

Coolant Capacity	LX2620: 4.5 qts (4.3 ℓ); LX3520/LX4020: 5.7 qts (5.4 ℓ)	Not Published
Crankcase Capacity	LX2620: 4.2 qts (4.0 ℓ); LX3520/LX4020: 5.0 qts (4.7 ℓ)	Not Published
Fuel Tank Capacity	LX2620: 7.1 gal (27 ℓ); LX3520/LX4020: 8.5 gal (32 ℓ)	6.6 gal
Transmission / Hydraulic System Capacity	5.5 (21.0) gal (ℓ)	Not Published
Front Axle Fluid Capacity	—	Not Published

Loader Lift Height	87.6 (2226) in. (mm)	68 in
Quick Attach Loader System	2-Lever Quick Coupler (Standard); Swift-Tach (Optional)	L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups.
Loader Lift Capacity (Full Height)	1100 (499) lbs. (kg)	794 lb
Loader Breakout Force	—	1433 lb

Clutch	N/A	Not Applicable
No. of Speeds	HST (3 range)	Infinite / 2 ranges
Transmission Type	HST (3 ranges)	HST
Max Travel Speed (Forward)	17.0 (0-27.4) mph (km/h)	7.3 mph
Max Travel Speed (Reverse)	13.0 (0-20.8) mph (km/h)	Not Published
Differential Lock & Limited Slip Options	Standard	Not Published

Brakes	Multi-plate wet disk	Single Pedal
Steering	Hydrostatic power steering	Hydrostatic Power Steering
Seat Suspension & Adjustability	Deluxe suspension seat (high back, designed to absorb shock)	Not Published
Frame Type	—	Not Published
Front Axle Type	—	Not Published
Drawbar Capacity	—	Not Published
Front Axle Rating	—	Not Published

Wheelbase	66.7 (1695) in. (mm)	55.1 in
Overall Width	53.7 (1365) in. (mm)	46.3 in
Overall Length	LX2620: 101.8 in.; LX3520DTN: 98.2 in.; LX3520/LX4020: 101.6-103.9 in. (2580-103.9 in)	—
Ground Clearance	12.8 (325) in. (mm)	6.7 in
Height to Top of ROPS	LX3520 Narrow: 56.7 in. (folded)	Not Applicable
Height to Top of ROPS (folded)	56.7 (1440) in. (mm)	Not Published
Min. Turn Radius without Brakes	7.5 (2.3) feet (m) Front drive disengaged	Not Published
Overall Length with 3-Point Hitch	101.8 (2586) in. (mm)	100.4 in
Height to Top of Cab Model	—	80.5 in
