Kubota LX3520 vs Mahindra 2123

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 3 measurable specs, the Kubota LX3520 leads 3 categories to 0. Machine pages: Kubota LX3520 and Mahindra 2123.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota LX3520	Mahindra 2123
Engine HP (hp)	▲ 23.3 hp	22.9 hp
PTO HP (hp)	—	16.8 hp
Weight (lb)	▲ 2,624 lb	2,557 lb
Loader Lift (lb)	—	1,477 lb
3-Pt Lift (24 in) (lb)	▲ 1,962 lb	1,760 lb
Lift Height (in)	—	77 in
Breakout Force (lbf)	—	2,160 lbf
Hydraulic Flow (gpm)	—	11.3 gpm
Travel Speed (mph)	—	11.2 mph

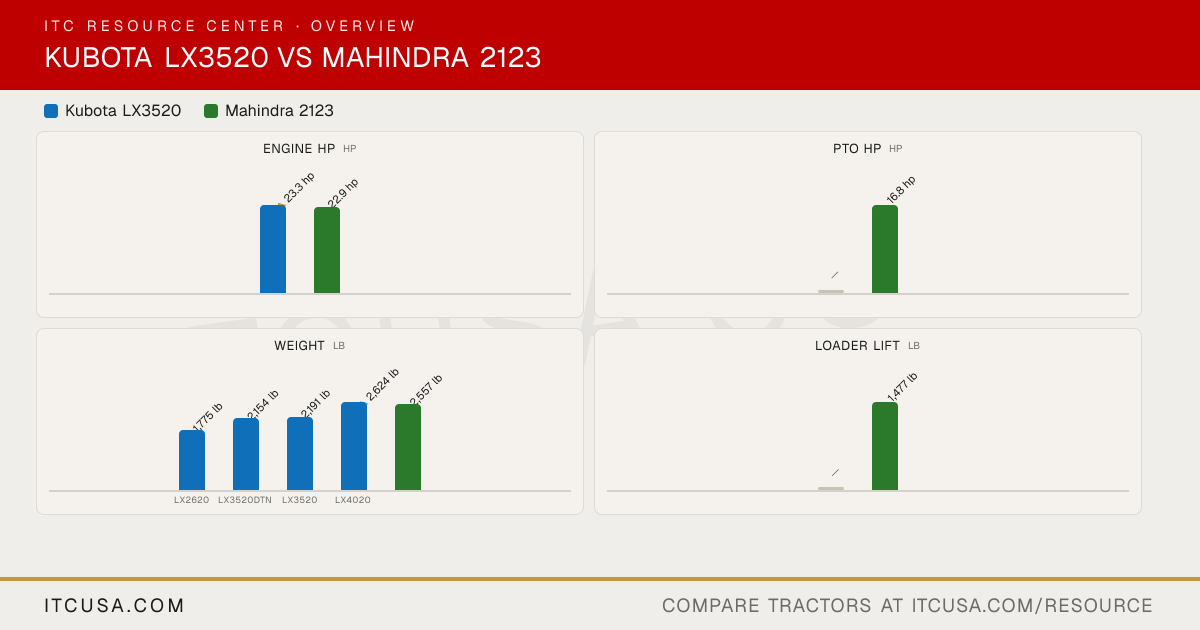

The headline numbers at a glance.

Kubota LX3520Mahindra 2123

Engine HPhp

▲23.3 hp

22.9 hp

PTO HPhp

—

16.8 hp

Weightlb

1,775 lb

2,154 lb

2,191 lb

▲2,624 lb

2,557 lb

LX2620LX3520DTNLX3520LX4020

Loader Liftlb

—

1,477 lb

3-Pt Lift (24 in)lb

1,819 lb

▲1,962 lb

1,760 lb

LX2620LX3520/LX4020

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaLX3520	Mahindra2123


PTO Power	28.7 (21.4) HP (kW)	16.8 hp
Air Cleaner	LX2620: 4.5 inch paper filter (with dual filter); LX3520/LX4020: 6 inch paper filter (with dual element)	Not Published
Engine Type	Indirect injection, vertical, water-cooled, 4-cycle diesel and Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger	Diesel, Indirect Injection, Water-cooled
Fuel System	Common Rail (CRS) diesel	Indirect Injection
Displacement	77 in³	80.4 in³
No. of Cylinders	4	3
Rated Engine Speed	2500 rpm	2500 rpm
Cooling System Type	Pressurized radiator with radial air flow fan	Water-cooled
Engine Manufacturer	Kubota	Mitsubishi
Engine Power (Gross)	23.3 hp	22.9 hp @ 500 rpm
Alternator	—	55 A, 12 V
Engine Emissions Constraints	—	No DPF

Tractor Weight (Base)	LX2620: 1,775 lbs; LX3520DTN: 2,154 lbs; LX3520: 2,191 lbs; LX4020: 2,624 lbs	—
Weight with ROPS and Loader	—	2557 lb
Weight with Cab and Loader	—	3063 lb

Warranty Length & Coverage	Full warranty: 2 years / 2,000 hours \| Powertrain warranty: 6 years / 2,000 hours	7-Year Limited Powertrain Warranty

Pump Type	Dual pump	Not Published
Total Hydraulic Flow	9.1 (34.5) gpm (l/min.)	11.3 gpm
Hydraulic System Type	Open center	Open Center with Position Control
System Operating Pressure	Open center system	—
Overall Hydraulic Pump Flow	9.1 (34.5) gpm (l/min.)	11.3 gpm
Steering Flow	—	5.0 gpm
Implement Flow	—	6.3 gpm
Rear Remote Hydraulic Flow	—	Not Published
No. of Optional Remote Valves	—	Not Published
No. of Standard Remote Valves	—	Not Published

PTO Rear	540 rpm	540 rpm @ 2376 rpm
PTO Type	Independent	Live
Lift Control Type	Position control valve	Position Control
Hitch Lift Capacity	2348 (1065) lbs. (kg)	Not Published
Mid-PTO Availability	2460 RPM	Available; 2500 @ 2500
Category, 3-Point Hitch	Category I	CAT I with Telescoping stabilizers
Hitch Lift Capacity (at 24”)	LX2620: 1,819 lbs; LX3520/LX4020: 1,962 lbs	1760 lb

R3 Turf - Rear	16.6-16	13.5-16
R3 Turf - Front	24x8.5-14	8.5X14
Tire Size & Options	Front R1: 7-12; R4: 23×8.50-12; R4 large: 25×8.50-14; R14: 23×8.50-12; R14 large: 25×8.50-14; TURF: 24×8.50-14; Rear R1: 12.4-16; R4: 14-17.5; R14: 14-17.5; TURF: 13.6-16; R4 large: 15-19.5; R14 large: 15-19.5	R3 Turf, R4 Industrial
R4 Industrial - Rear	14-17.5 or 15-19.5	12.4-16
R4 Industrial - Front	23x8.5-12 or 25x8.5-14	8.5X14
R1 Agricultural - Rear	320/85D16	Not Applicable
R1 Agricultural - Front	180/85D12	Not Applicable

Coolant Capacity	LX2620: 4.5 qts (4.3 ℓ); LX3520/LX4020: 5.7 qts (5.4 ℓ)	Not Published
Crankcase Capacity	LX2620: 4.2 qts (4.0 ℓ); LX3520/LX4020: 5.0 qts (4.7 ℓ)	Not Published
Fuel Tank Capacity	LX2620: 7.1 gal (27 ℓ); LX3520/LX4020: 8.5 gal (32 ℓ)	5.8 gal
Transmission / Hydraulic System Capacity	5.5 (21.0) gal (ℓ)	Not Published
Front Axle Fluid Capacity	—	Not Published

Loader Lift Height	87.6 (2226) in. (mm)	77 in
Quick Attach Loader System	2-Lever Quick Coupler (Standard); Swift-Tach (Optional)	L21: Skid-steer couplers (skid-steer style quick attach) for superfast hookups.
Loader Lift Capacity (Full Height)	1100 (499) lbs. (kg)	1477 lb
Loader Breakout Force	—	2160 lb

Clutch	N/A	Not Applicable
No. of Speeds	HST (3 range)	Infinite / 3 Ranges
Transmission Type	HST (3 ranges)	HST
Max Travel Speed (Forward)	17.0 (0-27.4) mph (km/h)	11.2 mph
Max Travel Speed (Reverse)	13.0 (0-20.8) mph (km/h)	Not Published
Differential Lock & Limited Slip Options	Standard	Not Published

Brakes	Multi-plate wet disk	Two Pedal
Steering	Hydrostatic power steering	Hydrostatic Power Steering
Seat Suspension & Adjustability	Deluxe suspension seat (high back, designed to absorb shock)	Not Published
Frame Type	—	Not Published
Front Axle Type	—	Not Published
Drawbar Capacity	—	Not Published
Front Axle Rating	—	2425 lb

Wheelbase	66.7 (1695) in. (mm)	61.4 in
Overall Width	53.7 (1365) in. (mm)	54.4 in
Overall Length	LX2620: 101.8 in.; LX3520DTN: 98.2 in.; LX3520/LX4020: 101.6-103.9 in. (2580-103.9 in)	—
Ground Clearance	12.8 (325) in. (mm)	13.4 in
Height to Top of ROPS	LX3520 Narrow: 56.7 in. (folded)	93.6 in
Height to Top of ROPS (folded)	56.7 (1440) in. (mm)	Not Published
Min. Turn Radius without Brakes	7.5 (2.3) feet (m) Front drive disengaged	Not Published
Overall Length with 3-Point Hitch	101.8 (2586) in. (mm)	112.7 in
Height to Top of Cab Model	—	84.4 in
