| Engine Manufacturer | Kubota | Simpson |
|---|
| Engine Model | V3307-DI | SJV326 |
|---|
| Engine Type | 4-cylinder inline, direct injected diesel | 3-cylinder, turbocharged, intercooled |
|---|
| No. of Cylinders | 4 | 3 |
|---|
| Displacement | 203 in³ | 157.9 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2000 rpm |
|---|

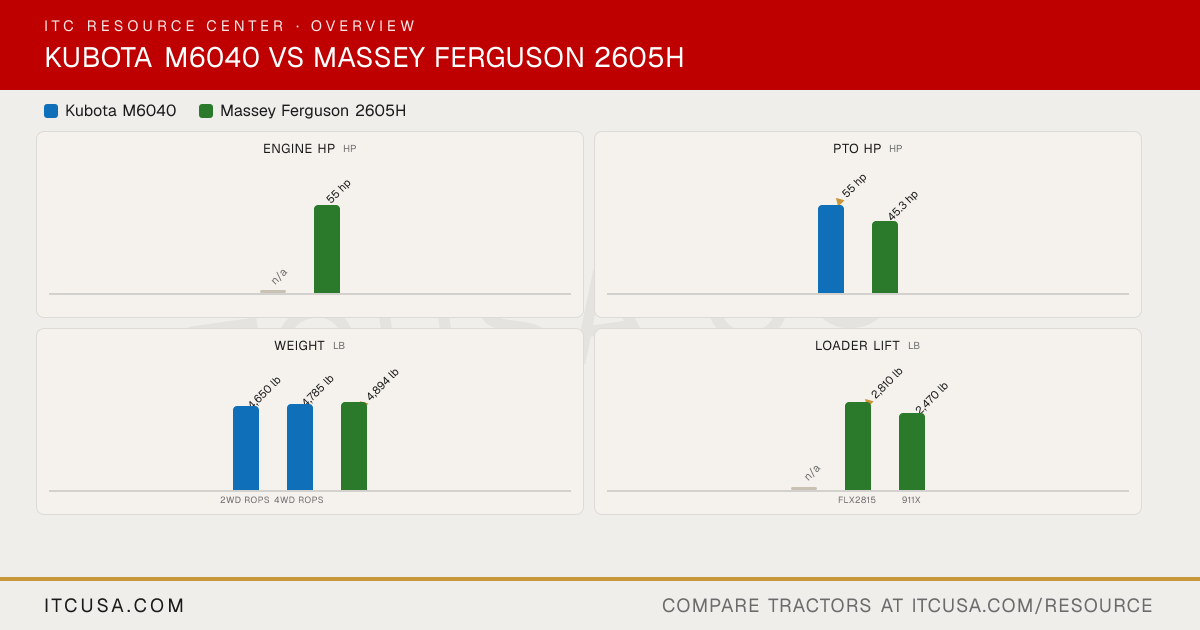

| Engine Power (Gross) | Not Published | 55 hp |
|---|
| PTO Power | 55 hp | 45.3 hp |
|---|
| Engine Emissions Constraints | Tier 2 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Liquid cooled |
|---|
| Air Cleaner | 8 in dry, dual element | Not Published |
|---|
| Fuel System | Direct injection | Electronically controlled high-pressure common rail |
|---|
| Alternator | ROPS: 45 A, 12 V; Cab: 60 A, 12 V | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Mark 1A scotch yoke piston pump |
|---|
| Implement Flow | 11.0 gpm | Not Published |
|---|
| Steering Flow | 6.1 gpm | Not Published |
|---|
| Total Hydraulic Flow | 17.1 gpm (11.0 + 6.1, computed) | 15.7 gpm |
|---|
| Overall Hydraulic Pump Flow | 17.1 gpm (11.0 + 6.1, computed) | 15.7 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | 11.0 gpm | 10.6 gpm |
|---|
| No. of Standard Remote Valves | 1 | One |
|---|
| No. of Optional Remote Valves | 2nd and 3rd optional | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | ROPS: 18.5 gal; Cab: 29.1 gal | 14.5 gal |
|---|
| Coolant Capacity | 8.5 qt | 4 gal |
|---|
| Crankcase Capacity | 11.6 qt | 2.5 gal |
|---|
| Transmission / Hydraulic System Capacity | 59.2 qt | 10.5 gal |
|---|
| Front Axle Fluid Capacity | Front differential case: 5.8 qt; front axle gear case: 3.7 qt each side | Not Published |
|---|
|
|---|
| PTO Type | Live, independent PTO, hydraulically operated wet clutch with PTO brake | Live |
|---|
| PTO Rear | 540 rpm | 540 rpm, 6-spline |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I and II | Category I and II |
|---|
| Hitch Lift Capacity | 4,189 lb | 4,519 lb |
|---|
| Hitch Lift Capacity (at 24”) | 3,307 lb | 2,755 lb |
|---|
| Lift Control Type | Position, draft (top link sensing) and mix control | Draft, position and response control |
|---|
|
|---|
| Transmission Type | Synchro shuttle, 8F/8R (4-speed synchronized main, 2-speed Hi/Lo range); hydraulic shuttle optional on cab models | 8F x 2R SideShift sliding gear |
|---|
| No. of Speeds | 8F/8R (12F/12R with optional creep) | 8 forward and 2 reverse |
|---|
| Max Travel Speed (Forward) | 17.8 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | 18.0 mph | Not Published |
|---|
| Clutch | Dry single plate (synchro shuttle); multiple wet discs (hydraulic shuttle) | Not Published |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock (bevel gears) | Mechanical engagement via right-side heel pedal |
|---|
|
|---|
| Frame Type | Two-post foldable ROPS (canopy optional); Ultra Grand Cab optional | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic steering with separate reservoir |
|---|
| Brakes | Multiple wet disc, mechanical | Oil-immersed wet disc |
|---|
| Seat Suspension & Adjustability | Reclining, fully adjustable seat (height, weight, fore-aft, armrests) with retractable seat belt; optional air-suspension seat (cab) | ReverseRise adjustable seat with fixed steering column |
|---|
| Front Axle Type | 4WD: bevel-gear type, on-the-go engagement | Straight adjustable (2WD) |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | 2,200 lb | Not Published |
|---|
|
|---|
| Overall Width | 73.2 in | 66.5 in |
|---|
| Wheelbase | 2WD ROPS: 82.1 in; 2WD cab: 84.4 in; 4WD ROPS: 80.7 in; 4WD cab: 83.1 in | 80.7 in |
|---|
| Ground Clearance | 15.4 in | Not Published |
|---|
| Min. Turn Radius without Brakes | 2WD: 11.2 ft; 4WD: 11.8 ft | Not Published |
|---|
| Height to Top of ROPS | 96.9 in | 91.3 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 99.8 in | Not Published |
|---|
| Overall Length | 2WD: 140.4 in; 4WD: 135.6 in | 138 in |
|---|
|
|---|
| Tractor Weight (Base) | 2WD ROPS: 4,650 lb; 4WD ROPS: 4,785 lb | 4,894 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Standard: 7.50-16 (2WD) or 9.5-24 (4WD) front, 16.9-28 rear | Standard (ag): 6.00x16 front, 13.6x28 rear; optional (ag): 7.5x16 front, 16.6x28 rear |
|---|
| R1 Agricultural - Front | 2WD: 7.5-16; 4WD: 9.5-24 | 6.00x16 (7.5x16 optional) |
|---|
| R1 Agricultural - Rear | 16.9-28 | 13.6x28 (16.6x28 optional) |
|---|
| R3 Turf - Front | 2WD: 29x12.5-15 or 27x9.5-15 | Not Published |
|---|
| R3 Turf - Rear | 2WD: 21.5L-16.1 or 16.9-24 | Not Published |
|---|
| R4 Industrial - Front | 12.5/80-18 (4WD) | Not Published |
|---|
| R4 Industrial - Rear | 16.9-24 (4WD) | Not Published |
|---|
|
|---|
| Quick Attach Loader System | LA1153: two-lever quick coupler | Skid steer style coupling |
|---|
| Loader Model | LA1153 | FLx2815 |
|---|
| Loader Lift Height | LA1153 height position: 132.7 in; LA1153 power position: 117.2 in | FLx2815: 111 in; 911X: 114 in |
|---|
| Loader Lift Capacity (Full Height) | Not Published | FLx2815: 2,810 lb (at pivot pin); 911X: 2,470 lb (at pivot pins) |
|---|
| Loader Breakout Force | Not Published | FLx2815: 4,240 lb (at pivot pin) |
|---|
|
|---|
| Warranty Length & Coverage | Not Published | 5-year powertrain warranty |
|---|
