LS Tractor MT122 vs Mahindra eMax 22L

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra eMax 22L leads 6 categories to 2. Machine pages: LS Tractor MT122 and Mahindra eMax 22L.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT122	Mahindra eMax 22L
Engine HP (hp)	21.5 hp	▲ 22 hp
PTO HP (hp)	▲ 15 hp	14.9 hp
Weight (lb)	1,433 lb	▲ 1,638 lb
Loader Lift (lb)	▲ 902 lb	900 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,323 lb
Lift Height (in)	72.6 in	▲ 75.3 in
Breakout Force (lbf)	1,836 lbf	▲ 2,000 lbf
Hydraulic Flow (gpm)	6.7 gpm	▲ 7.1 gpm
Travel Speed (mph)	8.7 mph	n/a

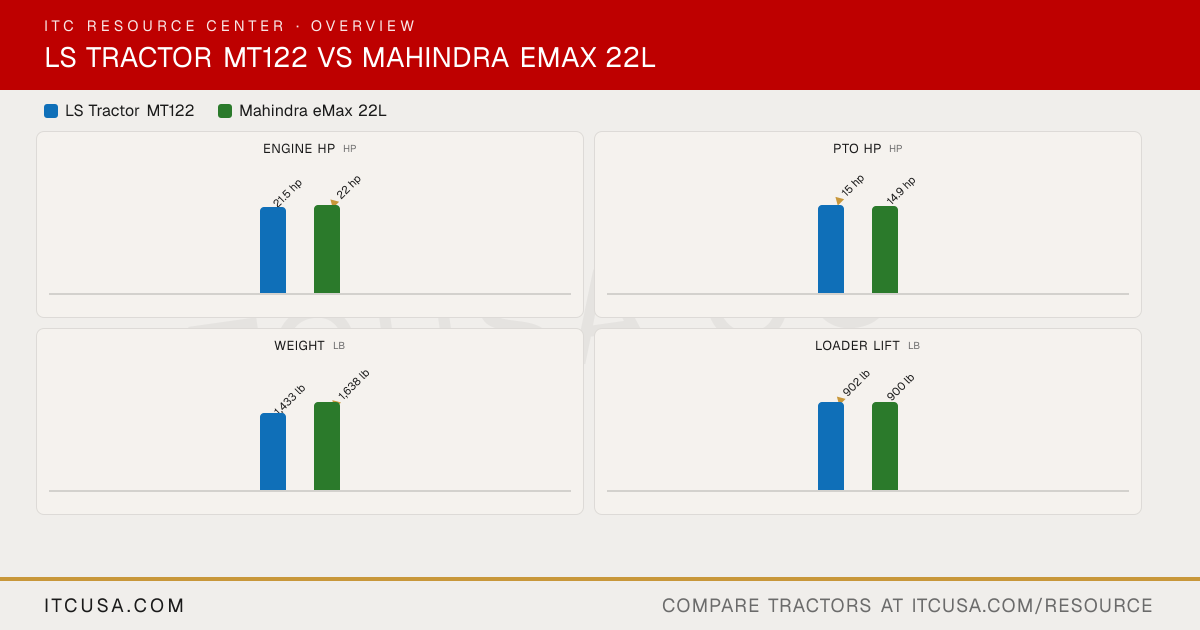

The headline numbers at a glance.

LS Tractor MT122Mahindra eMax 22L

Engine HPhp

21.5 hp

▲22 hp

PTO HPhp

▲15 hp

14.9 hp

Weightlb

1,433 lb

▲1,638 lb

Loader Liftlb

▲902 lb

900 lb

3-Pt Lift (24 in)lb

728 lb

▲1,323 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT122	MahindraeMax 22L


Engine Manufacturer	Yanmar	Kukje
Engine Model	3TNV76F	A1100N3
Engine Type	3-cylinder, indirect injection (swirl chamber), water-cooled	Four-stroke, naturally aspirated, indirect injection, water-cooled diesel
No. of Cylinders	3	3
Displacement	68.0 in³	71.7 in³
Rated Engine Speed	3000 rpm	2600 rpm
Engine Power (Gross)	21.5 hp	22 hp
PTO Power	15 hp	14.9 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry	Not Published
Fuel System	In-line injection pump	Indirect Injection
Alternator	40 A, 12 V	50 A, 12 V

Pump Type	Gear pump, transmission driven	Not Published
Implement Flow	4.6 gpm	4.5 gpm
Steering Flow	2.1 gpm	Not Published
Total Hydraulic Flow	6.7 gpm	7.1 gpm
Overall Hydraulic Pump Flow	6.7 gpm	7.1 gpm
Hydraulic System Type	Open center system, position control	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	Not Published
No. of Optional Remote Valves	1 set (2 quick couplers, optional)	Not Published

Fuel Tank Capacity	6.6 gal	5.8 gal
Coolant Capacity	0.9 gal	3.7 qt
Crankcase Capacity	0.8 gal	2.3 qt
Transmission / Hydraulic System Capacity	3.0 gal (3.4 gal with front-end loader; 4.7 gal with front-end loader and backhoe)	Not Published
Front Axle Fluid Capacity	0.5 gal	Not Published

PTO Type	Independent (electro-hydraulic)	Independent
PTO Rear	Standard (540 rpm)	540 @ 2550 rpm
Mid-PTO Availability	Standard (2,500 rpm)	Available; 2000 @ 2550 rpm
Category, 3-Point Hitch	Category I	CAT I with Check Chains
Hitch Lift Capacity	992 lb	1,323 lb
Hitch Lift Capacity (at 24”)	728 lb	Not Published
Lift Control Type	Position control	Not Published

Transmission Type	Hydrostatic Drive	HST - 2 range
No. of Speeds	2 ranges	Infinite
Max Travel Speed (Forward)	8.70 mph	Not Published
Max Travel Speed (Reverse)	5.22 mph	Not Published
Clutch	N/A	Dry-Single
Differential Lock & Limited Slip Options	Mechanical pedal type	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Wet Disc
Seat Suspension & Adjustability	High-back seat, folding armrest, retractable seat belt, fore-aft adjustment	Not Published
Front Axle Type	Front wheel mechanical assist (4WD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Hitch: 882 lb vertical, 3,527 lb horizontal; drawbar with clevis: 772 lb vertical, 3,527 lb horizontal	Not Published

Overall Width	47 in	45.8 in
Wheelbase	56 in	57.5 in
Ground Clearance	Not Published	9.4 in
Min. Turn Radius without Brakes	7.87 ft	7.2 ft
Height to Top of ROPS	87 in	91.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Applicable
Overall Length	97 in (bumper to link)	100.5 in

Tractor Weight (Base)	1,433 lb	1,638 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Front 18x8.50-10, rear 26x12.0-12; offered in industrial or turf	Not Published
R1 Agricultural - Front	Not Published	6x12
R1 Agricultural - Rear	Not Published	9.5x16
R3 Turf - Front	18x8.50-10	20x8-10
R3 Turf - Rear	26x12.0-12	29x12.5-15
R4 Industrial - Front	18x8.50-10	20x8-10
R4 Industrial - Rear	26x12.0-12	27x12.5-15

Quick Attach Loader System	LL1102: quick attachment (ISO 24410 attachments only), latch handle with latch pin	25LSK: Skid steer style quick coupler, standard
Loader Model	LL1102; LL1700; LL1001	25LSK
Loader Lift Height	LL1001: 72.6 in (at pivot pin)	25LSK: 75.3 in
Loader Lift Capacity (Full Height)	LL1001: 902 lb (at pivot pin, maximum height)	25LSK: 900 lb
Loader Breakout Force	LL1001: 1,836 lb (at pivot pin)	25LSK: 2,000 lb

Warranty Length & Coverage	6-year limited warranty	Not Published

Find a LS Tractor dealer near you Find a Mahindra dealer near you

LS Tractor MT122 vs Mahindra eMax 22L: Quick Answers

Which has more horsepower, the LS Tractor MT122 or the Mahindra eMax 22L?: The Mahindra eMax 22L leads on engine hp at 22 hp hp, compared to 21.5 hp hp for the LS Tractor MT122.
Which has more PTO horsepower, the LS Tractor MT122 or the Mahindra eMax 22L?: The LS Tractor MT122 leads on pto hp at 15 hp hp, compared to 14.9 hp hp for the Mahindra eMax 22L.
Which is heavier, the LS Tractor MT122 or the Mahindra eMax 22L?: The Mahindra eMax 22L leads on weight at 1,638 lb lb, compared to 1,433 lb lb for the LS Tractor MT122.
Which has more loader lift capacity, the LS Tractor MT122 or the Mahindra eMax 22L?: The LS Tractor MT122 leads on loader lift at 902 lb lb, compared to 900 lb lb for the Mahindra eMax 22L.
Which has more three-point hitch lift capacity, the LS Tractor MT122 or the Mahindra eMax 22L?: The Mahindra eMax 22L leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 728 lb lb for the LS Tractor MT122.

More Head-to-Heads

Category Verdict

Spec	LS Tractor MT122	Mahindra eMax 22L
Engine HP (hp)	21.5 hp	▲ 22 hp
PTO HP (hp)	▲ 15 hp	14.9 hp
Weight (lb)	1,433 lb	▲ 1,638 lb
Loader Lift (lb)	▲ 902 lb	900 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,323 lb
Lift Height (in)	72.6 in	▲ 75.3 in
Breakout Force (lbf)	1,836 lbf	▲ 2,000 lbf
Hydraulic Flow (gpm)	6.7 gpm	▲ 7.1 gpm
Travel Speed (mph)	8.7 mph	n/a

The headline numbers at a glance.

LS Tractor MT122Mahindra eMax 22L

Engine HPhp

21.5 hp

▲22 hp

PTO HPhp

▲15 hp

14.9 hp

Weightlb

1,433 lb

▲1,638 lb

Loader Liftlb

▲902 lb

900 lb

3-Pt Lift (24 in)lb

728 lb

▲1,323 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT122	MahindraeMax 22L


Engine Manufacturer	Yanmar	Kukje
Engine Model	3TNV76F	A1100N3
Engine Type	3-cylinder, indirect injection (swirl chamber), water-cooled	Four-stroke, naturally aspirated, indirect injection, water-cooled diesel
No. of Cylinders	3	3
Displacement	68.0 in³	71.7 in³
Rated Engine Speed	3000 rpm	2600 rpm
Engine Power (Gross)	21.5 hp	22 hp
PTO Power	15 hp	14.9 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry	Not Published
Fuel System	In-line injection pump	Indirect Injection
Alternator	40 A, 12 V	50 A, 12 V

Pump Type	Gear pump, transmission driven	Not Published
Implement Flow	4.6 gpm	4.5 gpm
Steering Flow	2.1 gpm	Not Published
Total Hydraulic Flow	6.7 gpm	7.1 gpm
Overall Hydraulic Pump Flow	6.7 gpm	7.1 gpm
Hydraulic System Type	Open center system, position control	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	Not Published
No. of Optional Remote Valves	1 set (2 quick couplers, optional)	Not Published

Fuel Tank Capacity	6.6 gal	5.8 gal
Coolant Capacity	0.9 gal	3.7 qt
Crankcase Capacity	0.8 gal	2.3 qt
Transmission / Hydraulic System Capacity	3.0 gal (3.4 gal with front-end loader; 4.7 gal with front-end loader and backhoe)	Not Published
Front Axle Fluid Capacity	0.5 gal	Not Published

PTO Type	Independent (electro-hydraulic)	Independent
PTO Rear	Standard (540 rpm)	540 @ 2550 rpm
Mid-PTO Availability	Standard (2,500 rpm)	Available; 2000 @ 2550 rpm
Category, 3-Point Hitch	Category I	CAT I with Check Chains
Hitch Lift Capacity	992 lb	1,323 lb
Hitch Lift Capacity (at 24”)	728 lb	Not Published
Lift Control Type	Position control	Not Published

Transmission Type	Hydrostatic Drive	HST - 2 range
No. of Speeds	2 ranges	Infinite
Max Travel Speed (Forward)	8.70 mph	Not Published
Max Travel Speed (Reverse)	5.22 mph	Not Published
Clutch	N/A	Dry-Single
Differential Lock & Limited Slip Options	Mechanical pedal type	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Wet Disc
Seat Suspension & Adjustability	High-back seat, folding armrest, retractable seat belt, fore-aft adjustment	Not Published
Front Axle Type	Front wheel mechanical assist (4WD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Hitch: 882 lb vertical, 3,527 lb horizontal; drawbar with clevis: 772 lb vertical, 3,527 lb horizontal	Not Published

Overall Width	47 in	45.8 in
Wheelbase	56 in	57.5 in
Ground Clearance	Not Published	9.4 in
Min. Turn Radius without Brakes	7.87 ft	7.2 ft
Height to Top of ROPS	87 in	91.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Applicable
Overall Length	97 in (bumper to link)	100.5 in

Tractor Weight (Base)	1,433 lb	1,638 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Front 18x8.50-10, rear 26x12.0-12; offered in industrial or turf	Not Published
R1 Agricultural - Front	Not Published	6x12
R1 Agricultural - Rear	Not Published	9.5x16
R3 Turf - Front	18x8.50-10	20x8-10
R3 Turf - Rear	26x12.0-12	29x12.5-15
R4 Industrial - Front	18x8.50-10	20x8-10
R4 Industrial - Rear	26x12.0-12	27x12.5-15

Quick Attach Loader System	LL1102: quick attachment (ISO 24410 attachments only), latch handle with latch pin	25LSK: Skid steer style quick coupler, standard
Loader Model	LL1102; LL1700; LL1001	25LSK
Loader Lift Height	LL1001: 72.6 in (at pivot pin)	25LSK: 75.3 in
Loader Lift Capacity (Full Height)	LL1001: 902 lb (at pivot pin, maximum height)	25LSK: 900 lb
Loader Breakout Force	LL1001: 1,836 lb (at pivot pin)	25LSK: 2,000 lb

Warranty Length & Coverage	6-year limited warranty	Not Published

Find a LS Tractor dealer near you Find a Mahindra dealer near you

LS Tractor MT122 vs Mahindra eMax 22L: Quick Answers

Which has more horsepower, the LS Tractor MT122 or the Mahindra eMax 22L?

The Mahindra eMax 22L leads on engine hp at 22 hp hp, compared to 21.5 hp hp for the LS Tractor MT122.

Which has more PTO horsepower, the LS Tractor MT122 or the Mahindra eMax 22L?

The LS Tractor MT122 leads on pto hp at 15 hp hp, compared to 14.9 hp hp for the Mahindra eMax 22L.

Which is heavier, the LS Tractor MT122 or the Mahindra eMax 22L?

The Mahindra eMax 22L leads on weight at 1,638 lb lb, compared to 1,433 lb lb for the LS Tractor MT122.

Which has more loader lift capacity, the LS Tractor MT122 or the Mahindra eMax 22L?

The LS Tractor MT122 leads on loader lift at 902 lb lb, compared to 900 lb lb for the Mahindra eMax 22L.

Which has more three-point hitch lift capacity, the LS Tractor MT122 or the Mahindra eMax 22L?

The Mahindra eMax 22L leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 728 lb lb for the LS Tractor MT122.
