Bad Boy Tractors 3026 vs Mahindra eMax 22L

Across 8 measurable specs, the Bad Boy Tractors 3026 leads 6 categories to 2. Machine pages: Bad Boy Tractors 3026 and Mahindra eMax 22L.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

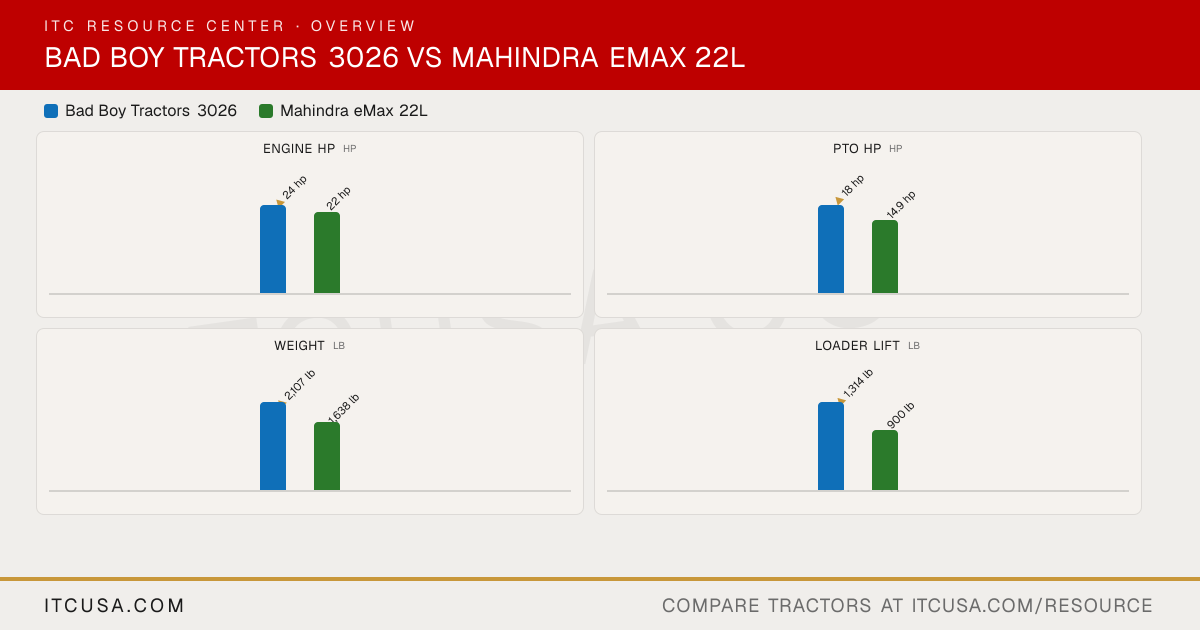

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	MahindraeMax 22L

▶Engine
Engine Manufacturer	TYM	Kukje
Engine Model	A1100N2	A1100N3
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine
No. of Cylinders	3	3
Displacement	70.7 in³	71.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	24 hp	22 hp
PTO Power	18 hp	14.9 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry element	Not Published
Fuel System	Indirect injection (swirl chamber)	Indirect Injection
Alternator	50 A, 12 V	50 A, 12 V
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Implement Flow	4.3 gpm	4.5 gpm
Steering Flow	3.1 gpm	Not Published
Total Hydraulic Flow	7.4 gpm	7.1 gpm
Overall Hydraulic Pump Flow	7.7 gpm	7.1 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	5.8 gal
Coolant Capacity	1.21 gal	3.7 qt
Crankcase Capacity	0.79 gal	2.3 qt
Transmission / Hydraulic System Capacity	2.90 gal	Not Published
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent
PTO Rear	540 / 960 rpm	540 @ 2550 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Available; 2000 @ 2550 rpm
Category, 3-Point Hitch	Category 1	CAT I with Check Chains
Hitch Lift Capacity	1,433 lb	1323 lb
Hitch Lift Capacity (at 24”)	974 lb	Not Published
Lift Control Type	Position control	Not Published
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	HST - 2 range
No. of Speeds	3 range (L/M/H)	Infinite
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	Dry-Single
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet Disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	100.5 in
Overall Width	53.9 in	45.8 in
Wheelbase	65.7 in	57.5 in
Ground Clearance	16.4 in	9.4 in
Min. Turn Radius without Brakes	Not Published	7.2 ft
Height to Top of ROPS	91.4 in	91.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,107 lb	1638 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	Not Published
R1 Agricultural - Front	7-16 6PR	6x12
R1 Agricultural - Rear	11.2-20	9.5x16
R3 Turf - Front	Not Published	20x8-10
R3 Turf - Rear	Not Published	29x12.5-15
R4 Industrial - Front	25x8.50-14	20x8-10
R4 Industrial - Rear	14-17.5	27x12.5-15
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	25LSK: Standard skid steer style loader couplers provide fast and easy front implement connection.
Loader Model	BBL300	25LSK
Loader Lift Height	87.5 in	25LSK: 75.3 in
Loader Lift Capacity (Full Height)	1,314 lb	25LSK: 900 lb
Loader Breakout Force	1,960 lbf	25LSK: 2000 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Two Year All Aggregate (bumper to bumper) plus Five-Year Limited Powertrain; extends to a total 7-year / 3000 Hrs Limited Powertrain on eligible non-commercial, residential purchases
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a Mahindra dealer near you→

Bad Boy Tractors 3026 vs Mahindra eMax 22L: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Mahindra eMax 22L?

The Bad Boy Tractors 3026 leads on engine hp at 24 hp hp, compared to 22 hp hp for the Mahindra eMax 22L.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Mahindra eMax 22L?

The Bad Boy Tractors 3026 leads on pto hp at 18 hp hp, compared to 14.9 hp hp for the Mahindra eMax 22L.

Which is heavier, the Bad Boy Tractors 3026 or the Mahindra eMax 22L?

The Bad Boy Tractors 3026 leads on weight at 2,107 lb lb, compared to 1,638 lb lb for the Mahindra eMax 22L.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Mahindra eMax 22L?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 900 lb lb for the Mahindra eMax 22L.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Mahindra eMax 22L?

The Mahindra eMax 22L leads on 3-pt lift (24 in) at 1,323 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
