Which has more horsepower, the LS Tractor MT225S or the LS Tractor MT226ED?

The LS Tractor MT225S leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the LS Tractor MT226ED.

Which has more PTO horsepower, the LS Tractor MT225S or the LS Tractor MT226ED?

The LS Tractor MT225S leads on pto hp at 19.3 hp hp, compared to 19.2 hp hp for the LS Tractor MT226ED.

Which has more loader lift capacity, the LS Tractor MT225S or the LS Tractor MT226ED?

The LS Tractor MT226ED leads on loader lift at 1,965 lb lb, compared to 1,067 lb lb for the LS Tractor MT225S.

Which has more three-point hitch lift capacity, the LS Tractor MT225S or the LS Tractor MT226ED?

The LS Tractor MT226ED leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,323 lb lb for the LS Tractor MT225S.

LS Tractor MT225S vs LS Tractor MT226ED

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the LS Tractor MT226ED leads 5 categories to 2. Machine pages: LS Tractor MT225S and LS Tractor MT226ED.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT225S	LS Tractor MT226ED
Engine HP (hp)	▲ 24.7 hp	24.6 hp
PTO HP (hp)	▲ 19.3 hp	19.2 hp
Loader Lift (lb)	1,067 lb	▲ 1,965 lb
3-Pt Lift (24 in) (lb)	1,323 lb	▲ 1,433 lb
Lift Height (in)	84.4 in	▲ 94.3 in
Breakout Force (lbf)	2,290 lbf	▲ 2,962 lbf
Hydraulic Flow (gpm)	9.3 gpm	▲ 12.5 gpm

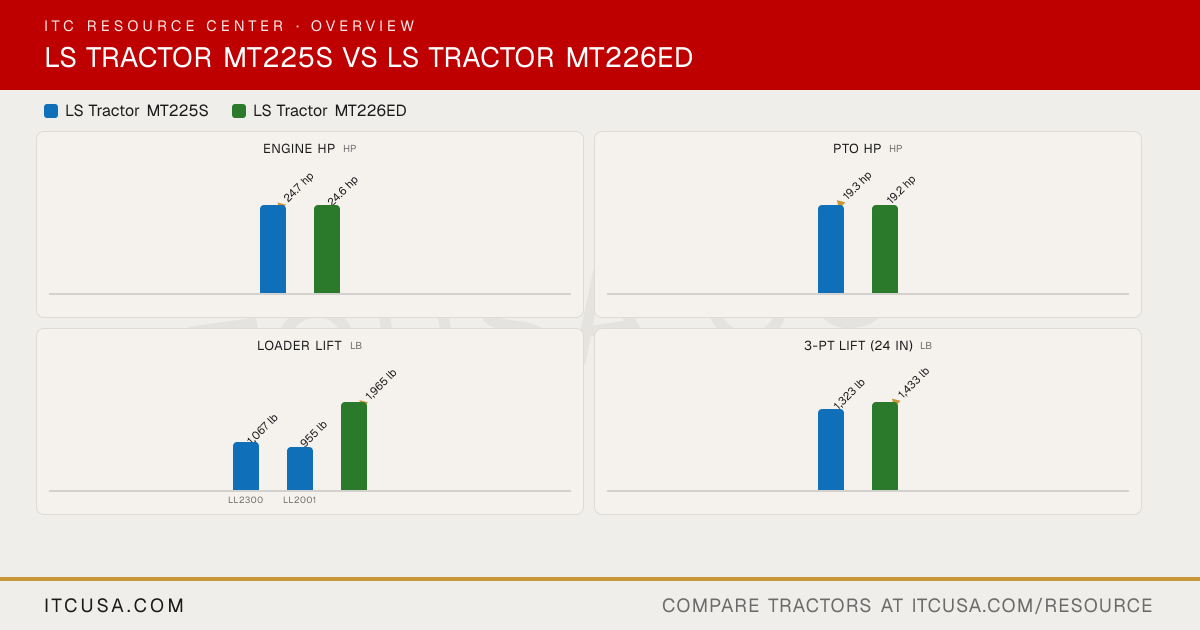

The headline numbers at a glance.

LS Tractor MT225SLS Tractor MT226ED

Engine HPhp

▲24.7 hp

24.6 hp

PTO HPhp

▲19.3 hp

19.2 hp

Weightlb

—

Loader Liftlb

1,067 lb

955 lb

▲1,965 lb

LL2300LL2001

3-Pt Lift (24 in)lb

1,323 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT225S	LS TractorMT226ED


PTO Power	19.3 hp	19.2 hp
Alternator	50 A, 12 V	50 A, 12 V
Air Cleaner	Dry	Dry
Engine Type	3-cylinder, Indirect Injection (IDI), Swirl chamber	3-cylinder, Liquid-cooled, Diesel, NA, IDI
Fuel System	In-line injection pump	IDI
Displacement	77.3 in³	80.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2800 rpm	2500 rpm
Cooling System Type	Not Published	Liquid-cooled
Engine Manufacturer	YANMAR	MHI
Engine Power (Gross)	24.7 hp	24.6 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Pump Type	Engine-driven	Gear pump
Steering Flow	3.7 gpm	4.6 gpm
Implement Flow	5.6 gpm	7.9 gpm
Total Hydraulic Flow	9.3 gpm	12.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	9.3 gpm	12.5 gpm
No. of Optional Remote Valves	1 pair (optional)	1
No. of Standard Remote Valves	Not Applicable	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	TM Driven
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1,896 lb	1433 lb
Mid-PTO Availability	Optional (2500 rpm)	Available (option)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1,323 lb	1433 lb

R3 Turf - Rear	31X15.50-15	41X14.00-20
R3 Turf - Front	22X8.50-12	25X8.50-14
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	12-16.5	43X16.00-20
R4 Industrial - Front	23X8.50-12	27X8.50-15
R1 Agricultural - Rear	11.2-16	11.2-24
R1 Agricultural - Front	7-12	7-14

Coolant Capacity	0.9 gal	Not Published
Crankcase Capacity	0.8 gal	Not Published
Fuel Tank Capacity	6.6 gal	10.6 gal
Front Axle Fluid Capacity	0.8 gal	Not Published
Transmission / Hydraulic System Capacity	4.5 gal	Not Published

Loader Lift Height	84.4 in	94.3 in
Loader Breakout Force	LL2300: 2,290 lb; LL2001: Not Published	2,962 lb
Quick Attach Loader System	LL2300: Bobcat-type (skid-steer style) quick attach bucket carrier; LL2001: Not Published	LL3001, LL3002: ISO 24410 Quick Attaching Coupler
Loader Lift Capacity (Full Height)	LL2300: 1,067 lb; LL2001: 955 lb	1,965 lb

Clutch	Not Applicable	Dry Single
No. of Speeds	3 ranges	F12 x R12
Transmission Type	Hydrostatic Drive	Synchro Shuttle
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical differential lock (pedal)

Brakes	Wet, multi-disc	Wet, Multi-disc
Steering	Hydrostatic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	63.4 in	66 in
Overall Width	48.7 in	66 in
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	86.4 in	95 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	11.5 ft (3.5 m)
Overall Length with 3-Point Hitch	111.9 in	119 in

LS Tractor MT225S vs LS Tractor MT226ED: Quick Answers

Which has more horsepower, the LS Tractor MT225S or the LS Tractor MT226ED?: The LS Tractor MT225S leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the LS Tractor MT226ED.
Which has more PTO horsepower, the LS Tractor MT225S or the LS Tractor MT226ED?: The LS Tractor MT225S leads on pto hp at 19.3 hp hp, compared to 19.2 hp hp for the LS Tractor MT226ED.
Which has more loader lift capacity, the LS Tractor MT225S or the LS Tractor MT226ED?: The LS Tractor MT226ED leads on loader lift at 1,965 lb lb, compared to 1,067 lb lb for the LS Tractor MT225S.
Which has more three-point hitch lift capacity, the LS Tractor MT225S or the LS Tractor MT226ED?: The LS Tractor MT226ED leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,323 lb lb for the LS Tractor MT225S.
