LS Tractor MT226E vs LS Tractor MT226ED

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor MT226E leads 1 categories to 0 (7 tied). Machine pages: LS Tractor MT226E and LS Tractor MT226ED.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT226E	LS Tractor MT226ED
Engine HP (hp)	24.6 hp	24.6 hp
PTO HP (hp)	19.2 hp	19.2 hp
Weight (lb)	▲ 2,985 lb	2,963 lb
Loader Lift (lb)	1,599 lb	1,599 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	94.3 in	94.3 in
Breakout Force (lbf)	2,962 lbf	2,962 lbf
Hydraulic Flow (gpm)	12.5 gpm	12.5 gpm

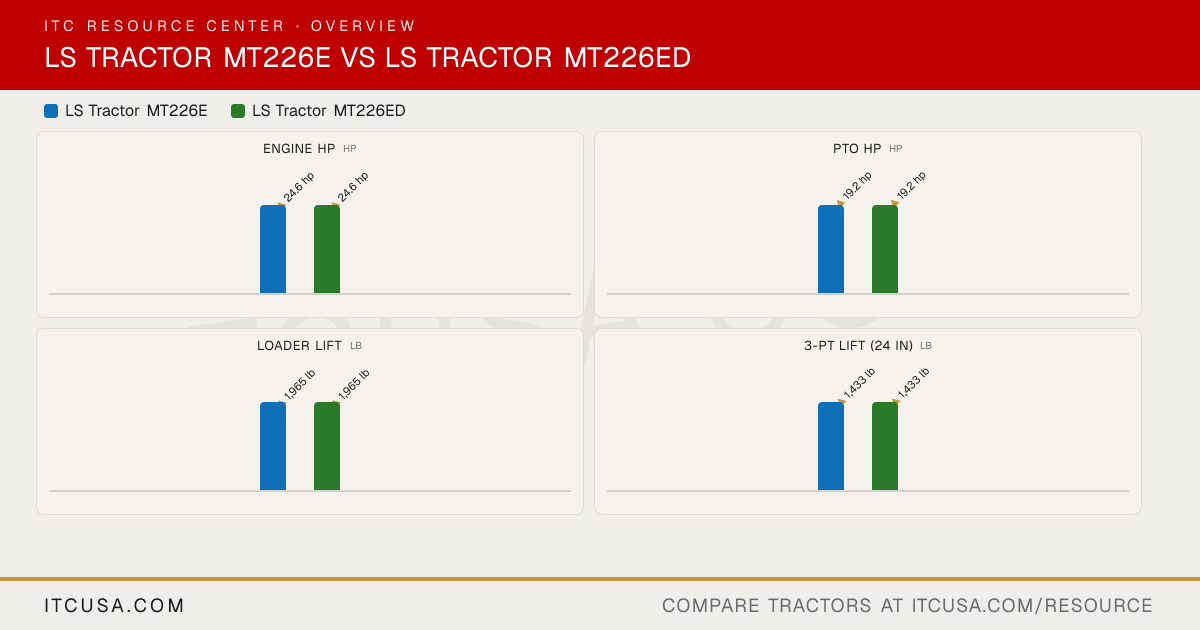

The headline numbers at a glance.

LS Tractor MT226ELS Tractor MT226ED

Engine HPhp

▲24.6 hp

PTO HPhp

▲19.2 hp

Weightlb

▲2,985 lb

2,963 lb

Loader Liftlb

▲1,599 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT226E	LS TractorMT226ED


Engine Manufacturer	MHI	MHI
Engine Model	S3L2-W463GTAC	S3L2-W463GTAC
Engine Type	3-cylinder, liquid-cooled, diesel, naturally aspirated, IDI	3-cylinder, liquid-cooled, diesel, naturally aspirated, IDI
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.6 hp	24.6 hp
PTO Power	19.2 hp	19.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry	Dry
Fuel System	IDI (indirect injection)	IDI (indirect injection)
Alternator	50 A, 12 V	50 A, 12 V

Pump Type	Gear pump	Gear pump
Implement Flow	7.9 gpm	7.9 gpm
Steering Flow	4.6 gpm	4.6 gpm
Total Hydraulic Flow	12.5 gpm	12.5 gpm
Overall Hydraulic Pump Flow	12.5 gpm	12.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0 (1 pair optional)	0
No. of Optional Remote Valves	1 pair (optional)	1

Fuel Tank Capacity	10.6 gal	10.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Transmission driven
PTO Rear	Standard (540 rpm)	Standard (540 rpm)
Mid-PTO Availability	Available (option)	Available (option)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1433 lb
Hitch Lift Capacity (at 24”)	1433 lb	1433 lb
Lift Control Type	Position control	Position control

Transmission Type	Synchro Shuttle	Synchro Shuttle
No. of Speeds	F12 x R12	F12 x R12
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry Single	Dry Single
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	119 in	119 in
Overall Width	66 in	66 in
Wheelbase	66 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	11.5 ft (3.5 m)	11.5 ft (3.5 m)
Height to Top of ROPS	95 in	95 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2,985 lb	2,963 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 agricultural, R4 industrial, R3 turf and VT (versa turf); VT same size as R4	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25x8.50-14	25x8.50-14
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	27x8.50-15	27x8.50-15
R4 Industrial - Rear	43x16.00-20	43x16.00-20

Quick Attach Loader System	LL3001, LL3002: ISO 24410 Quick Attaching Coupler	LL3001, LL3002: ISO 24410 Quick Attaching Coupler
Loader Model	LL3002	LL3001 and LL3002
Loader Lift Height	LL3002: 94.3 in	LL3001 and LL3002: 94.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	LL3002: 1,599 lb	LL3001 and LL3002: 1,599 lb (at pivot pin, maximum height)
Loader Breakout Force	LL3002: 2,962 lb	LL3001 and LL3002: 2,962 lb (at pivot pin)

Warranty Length & Coverage	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Find a LS Tractor dealer near you

LS Tractor MT226E vs LS Tractor MT226ED: Quick Answers

Which has more horsepower, the LS Tractor MT226E or the LS Tractor MT226ED?: They are effectively tied: both machines are rated at 24.6 hp hp for engine hp.
Which has more PTO horsepower, the LS Tractor MT226E or the LS Tractor MT226ED?: They are effectively tied: both machines are rated at 19.2 hp hp for pto hp.
Which is heavier, the LS Tractor MT226E or the LS Tractor MT226ED?: The LS Tractor MT226E leads on weight at 2,985 lb lb, compared to 2,963 lb lb for the LS Tractor MT226ED.
Which has more loader lift capacity, the LS Tractor MT226E or the LS Tractor MT226ED?: They are effectively tied: both machines are rated at 1,599 lb lb for loader lift.
Which has more three-point hitch lift capacity, the LS Tractor MT226E or the LS Tractor MT226ED?: They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	LS Tractor MT226E	LS Tractor MT226ED
Engine HP (hp)	24.6 hp	24.6 hp
PTO HP (hp)	19.2 hp	19.2 hp
Weight (lb)	▲ 2,985 lb	2,963 lb
Loader Lift (lb)	1,599 lb	1,599 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	94.3 in	94.3 in
Breakout Force (lbf)	2,962 lbf	2,962 lbf
Hydraulic Flow (gpm)	12.5 gpm	12.5 gpm

The headline numbers at a glance.

LS Tractor MT226ELS Tractor MT226ED

Engine HPhp

▲24.6 hp

PTO HPhp

▲19.2 hp

Weightlb

▲2,985 lb

2,963 lb

Loader Liftlb

▲1,599 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT226E	LS TractorMT226ED


Engine Manufacturer	MHI	MHI
Engine Model	S3L2-W463GTAC	S3L2-W463GTAC
Engine Type	3-cylinder, liquid-cooled, diesel, naturally aspirated, IDI	3-cylinder, liquid-cooled, diesel, naturally aspirated, IDI
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2500 rpm
Engine Power (Gross)	24.6 hp	24.6 hp
PTO Power	19.2 hp	19.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Dry	Dry
Fuel System	IDI (indirect injection)	IDI (indirect injection)
Alternator	50 A, 12 V	50 A, 12 V

Pump Type	Gear pump	Gear pump
Implement Flow	7.9 gpm	7.9 gpm
Steering Flow	4.6 gpm	4.6 gpm
Total Hydraulic Flow	12.5 gpm	12.5 gpm
Overall Hydraulic Pump Flow	12.5 gpm	12.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0 (1 pair optional)	0
No. of Optional Remote Valves	1 pair (optional)	1

Fuel Tank Capacity	10.6 gal	10.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Transmission driven
PTO Rear	Standard (540 rpm)	Standard (540 rpm)
Mid-PTO Availability	Available (option)	Available (option)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1433 lb
Hitch Lift Capacity (at 24”)	1433 lb	1433 lb
Lift Control Type	Position control	Position control

Transmission Type	Synchro Shuttle	Synchro Shuttle
No. of Speeds	F12 x R12	F12 x R12
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry Single	Dry Single
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	119 in	119 in
Overall Width	66 in	66 in
Wheelbase	66 in	66 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	11.5 ft (3.5 m)	11.5 ft (3.5 m)
Height to Top of ROPS	95 in	95 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2,985 lb	2,963 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 agricultural, R4 industrial, R3 turf and VT (versa turf); VT same size as R4	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	25x8.50-14	25x8.50-14
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	27x8.50-15	27x8.50-15
R4 Industrial - Rear	43x16.00-20	43x16.00-20

Quick Attach Loader System	LL3001, LL3002: ISO 24410 Quick Attaching Coupler	LL3001, LL3002: ISO 24410 Quick Attaching Coupler
Loader Model	LL3002	LL3001 and LL3002
Loader Lift Height	LL3002: 94.3 in	LL3001 and LL3002: 94.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	LL3002: 1,599 lb	LL3001 and LL3002: 1,599 lb (at pivot pin, maximum height)
Loader Breakout Force	LL3002: 2,962 lb	LL3001 and LL3002: 2,962 lb (at pivot pin)

Warranty Length & Coverage	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty

Find a LS Tractor dealer near you

LS Tractor MT226E vs LS Tractor MT226ED: Quick Answers

Which has more horsepower, the LS Tractor MT226E or the LS Tractor MT226ED?

They are effectively tied: both machines are rated at 24.6 hp hp for engine hp.

Which has more PTO horsepower, the LS Tractor MT226E or the LS Tractor MT226ED?

They are effectively tied: both machines are rated at 19.2 hp hp for pto hp.

Which is heavier, the LS Tractor MT226E or the LS Tractor MT226ED?

The LS Tractor MT226E leads on weight at 2,985 lb lb, compared to 2,963 lb lb for the LS Tractor MT226ED.

Which has more loader lift capacity, the LS Tractor MT226E or the LS Tractor MT226ED?

They are effectively tied: both machines are rated at 1,599 lb lb for loader lift.

Which has more three-point hitch lift capacity, the LS Tractor MT226E or the LS Tractor MT226ED?

They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
