Across 8 measurable specs, this matchup is a dead heat: 3 categories to the LS Tractor MT226HE, 3 to the LS Tractor XG3025, 2 tied. Machine pages: LS Tractor MT226HE and LS Tractor XG3025 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec LS Tractor MT226HE LS Tractor XG3025 Engine HP (hp) ▲ 24.6 hp24.4 hp PTO HP (hp) 17.1 hp ▲ 19.2 hpWeight (lb) ▲ 3,007 lb2,469 lb Loader Lift (lb) 1,599 lb ▲ 1,600 lb3-Pt Lift (24 in) (lb) 1,433 lb 1,433 lb Lift Height (in) 94.3 in 94.3 in Breakout Force (lbf) ▲ 2,962 lbf2,637 lbf Hydraulic Flow (gpm) 11.7 gpm ▲ 12.5 gpm
Overview Loader Work PTO Work

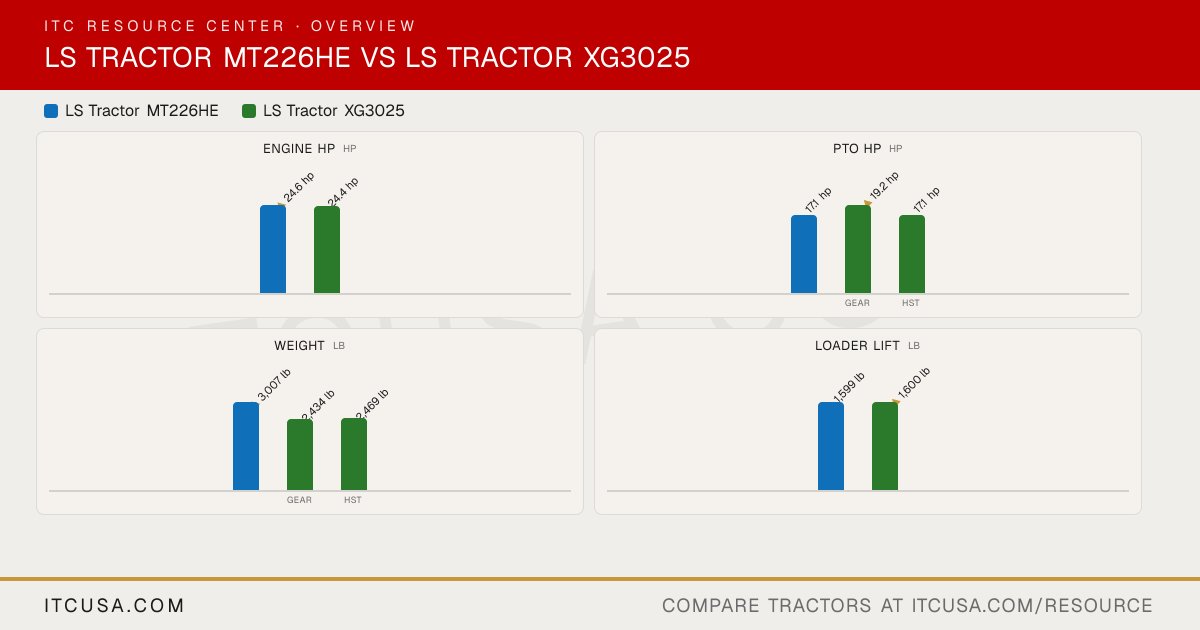

The headline numbers at a glance.
LS Tractor MT226HE LS Tractor XG3025
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Weight lb
▲ 3,007 lb
2,434 lb
2,469 lb
gear HST
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec LS Tractor MT226HE LS Tractor XG3025
▶ EngineEngine Manufacturer MHI Mitsubishi (MHI) Engine Model S3L2-W463GTAC S3L2 Engine Type 3-cylinder, liquid-cooled, diesel, naturally aspirated, IDI Indirect injection, swirl chamber diesel No. of Cylinders 3 3 Displacement 80.4 in³ 80.4 in³ Rated Engine Speed 2500 rpm 2500 rpm Engine Power (Gross) 24.6 hp 24.4 hp PTO Power 17.1 hp XG3025 (gear): 19.2 hp; XG3025H (HST): 17.1 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry Dry Fuel System IDI (indirect injection) Indirect injection Alternator 50 A, 12 V 50 A, 12 V ▶ HydraulicsPump Type Gear pump Gear pump, engine driven Implement Flow 7.1 gpm 7.9 gpm Steering Flow 4.6 gpm 4.6 gpm Total Hydraulic Flow 11.7 gpm 12.5 gpm Overall Hydraulic Pump Flow 11.7 gpm 12.5 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 0 (1 pair optional) None standard No. of Optional Remote Valves 1 pair (optional) 1 or 2 optional (double-acting, 2 or 4 quick couplers) ▶ Fluid CapacityFuel Tank Capacity 10.6 gal 7.4 gal Coolant Capacity Not Published 1.3 gal Crankcase Capacity Not Published 1.1 gal Transmission / Hydraulic System Capacity Not Published 8.5 gal Front Axle Fluid Capacity Not Published 1.7 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear Standard (540 rpm) 540 rpm Mid-PTO Availability Available (option) Optional Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,808 lb 1,808 lb Hitch Lift Capacity (at 24”) 1433 lb 1,433 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type HST XG3025 (gear): Synchro shuttle; XG3025H (HST): HST No. of Speeds 3 ranges XG3025 (gear): F12 x R12; XG3025H (HST): 3 ranges (HST) Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published XG3025 (gear): dry single clutch; XG3025H (HST): not applicable Differential Lock & Limited Slip Options Mechanical differential lock (pedal) Mechanical differential lock (pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet, multi-disc Wet, multi-disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 119 in 118 in Overall Width 66 in 54 in Wheelbase 66 in 66 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 11.5 ft (3.5 m) 10.5 ft Height to Top of ROPS 95 in 88 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 3,007 lb XG3025 (gear): 2,434 lb; XG3025H (HST): 2,469 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 agricultural, R4 industrial, R3 turf and VT (versa turf); VT same size as R4 Ag, industrial or turf tires R1 Agricultural - Front 7-14 7-14 R1 Agricultural - Rear 11.2-24 11.2-24 R3 Turf - Front 25x8.50-14 25x8.5-14 R3 Turf - Rear 41x14.00-20 41x14-20 R4 Industrial - Front 27x8.50-15 25x8.5-14 R4 Industrial - Rear 43x16.00-20 43x16-20 ▶ Loader & AttachmentsQuick Attach Loader System LL3001, LL3002: ISO 24410 Quick Attaching Coupler Not Published Loader Model LL3002 LL3110 Loader Lift Height LL3002: 94.3 in LL3110: 94.3 in Loader Lift Capacity (Full Height) LL3002: 1,599 lb LL3110: 1,600 lb Loader Breakout Force LL3002: 2,962 lb LL3110: 2,637 lb ▶ WarrantyWarranty Length & Coverage 6-year limited powertrain warranty; 2-year bumper-to-bumper warranty Not Published
LS Tractor MT226HE vs LS Tractor XG3025: Quick Answers
Which has more horsepower, the LS Tractor MT226HE or the LS Tractor XG3025? The LS Tractor MT226HE leads on engine hp at 24.6 hp hp, compared to 24.4 hp hp for the LS Tractor XG3025.
Which has more PTO horsepower, the LS Tractor MT226HE or the LS Tractor XG3025? The LS Tractor XG3025 leads on pto hp at 19.2 hp hp, compared to 17.1 hp hp for the LS Tractor MT226HE.
Which is heavier, the LS Tractor MT226HE or the LS Tractor XG3025? The LS Tractor MT226HE leads on weight at 3,007 lb lb, compared to 2,469 lb lb for the LS Tractor XG3025.
Which has more loader lift capacity, the LS Tractor MT226HE or the LS Tractor XG3025? The LS Tractor XG3025 leads on loader lift at 1,600 lb lb, compared to 1,599 lb lb for the LS Tractor MT226HE.
Which has more three-point hitch lift capacity, the LS Tractor MT226HE or the LS Tractor XG3025? They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in). More Head-to-Heads
