LS Tractor MT340HC vs LS Tractor XR3140

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 5 measurable specs, the LS Tractor MT340HC leads 4 categories to 0 (1 tied). Machine pages: LS Tractor MT340HC and LS Tractor XR3140.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor MT340HC	LS Tractor XR3140
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	32 hp	n/a
Weight (lb)	▲ 3,661 lb	3,615 lb
Loader Lift (lb)	▲ 2,185 lb	2,178 lb
3-Pt Lift (24 in) (lb)	▲ 1,808 lb	1,433 lb
Lift Height (in)	n/a	92.7 in
Breakout Force (lbf)	n/a	3,450 lbf
Hydraulic Flow (gpm)	▲ 13.7 gpm	7.8 gpm
Travel Speed (mph)	n/a	14.3 mph

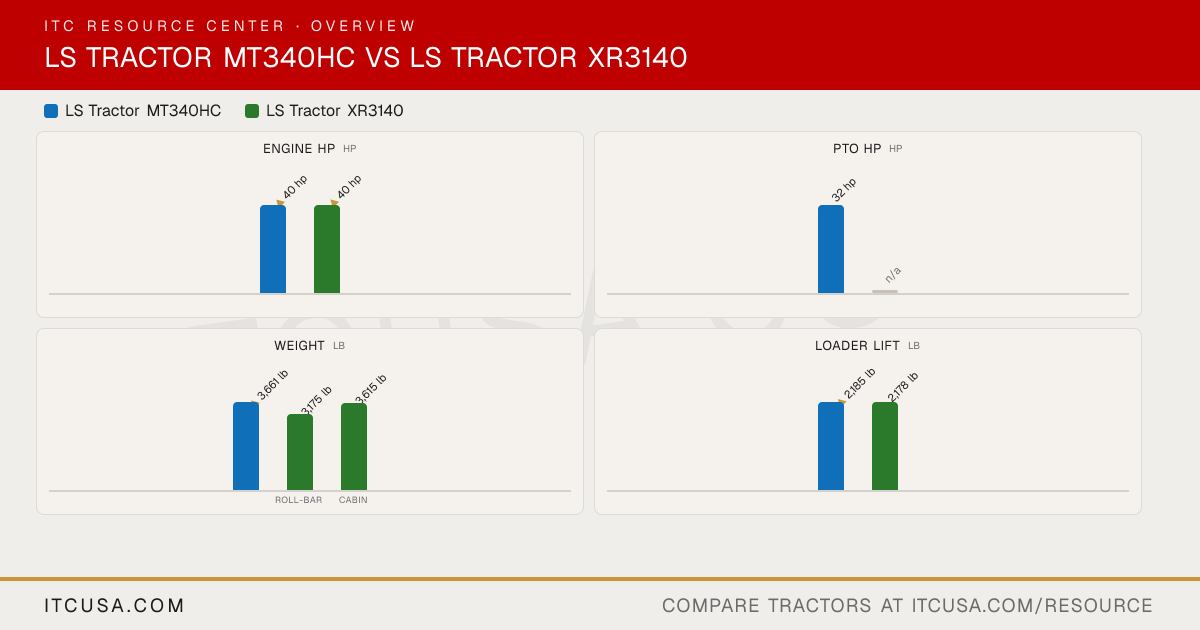

The headline numbers at a glance.

LS Tractor MT340HCLS Tractor XR3140

Engine HPhp

▲40 hp

PTO HPhp

32 hp

n/a

Weightlb

▲3,661 lb

3,175 lb

3,615 lb

Roll-barCabin

Loader Liftlb

▲2,185 lb

2,178 lb

3-Pt Lift (24 in)lb

▲1,808 lb

1,433 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT340HC	LS TractorXR3140


Engine Manufacturer	LS Mtron	LS
Engine Model	L3C19-T	L3C19-T4
Engine Type	Vertical, water-cooled, 4 cycle diesel	4-stroke, vertical, water cooling, CRDI
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	32 hp	Not Published
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry	Dry
Fuel System	CRDI	Delphi CRDI (Common Rail Direct Injection)
Alternator	70 A, 12 V	70 A, 12 V

Pump Type	Gear pump, engine drive	Gear pump type, engine drive
Implement Flow	8.2 gpm	7.8 gpm
Steering Flow	5.5 gpm	4.1 gpm (mechanical); 5.5 gpm (HST)
Total Hydraulic Flow	13.7 gpm	Not Published
Overall Hydraulic Pump Flow	13.7 gpm	Not Published
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	12.4 gal	10.6 gal (roll-bar); 12.4 gal (cabin)
Coolant Capacity	Not Published	1.9 gal
Crankcase Capacity	Not Published	1.5 gal
Transmission / Hydraulic System Capacity	Not Published	7.9 gal
Front Axle Fluid Capacity	Not Published	1.7 gal

PTO Type	Independent	Independent PTO with wet disk clutch
PTO Rear	540 rpm	540 (standard); 540 / 750 / 1,000 (optional 3-speed)
Mid-PTO Availability	Optional (2,000 rpm)	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	Not Published	1,433 lb
Lift Control Type	Position & Draft	Position and draft control

Transmission Type	Hydrostatic (HST)	Synchro-shuttle (mechanical)
No. of Speeds	3 ranges (HST)	F12 x R12
Max Travel Speed (Forward)	Not Published	14.33 mph
Max Travel Speed (Reverse)	Not Published	13.63 mph
Clutch	Not Published	Dry single clutch (mechanical only)
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical pedal type differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic
Brakes	Wet, Multi-disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	62 in
Wheelbase	69 in	69 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	9.2 ft (with brake applied)
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	86.6 in	86.6 in
Overall Length	128.3 in (frame to link)	128.3 in (bumper to link)

Tractor Weight (Base)	3,661 lb	Roll-bar: 3,175 lb; Cabin: 3,615 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, Industrial, Turf	Ag 7-14 / 11.2-24; Turf 25x8.5-14 / 41x14-20; Industrial 25x8.5-14 / 43x16-20
R1 Agricultural - Front	7-14	7-14 (4PR)
R1 Agricultural - Rear	11.2-24	11.2-24 (8PR)
R3 Turf - Front	25x8.5-14	25x8.5-14
R3 Turf - Rear	41x14-20	41x14-20
R4 Industrial - Front	25x8.5-14	25x8.5-14
R4 Industrial - Rear	43x16-20	43x16-20

Quick Attach Loader System	LL3116	Not Published
Loader Model	Not Published	LL3106
Loader Lift Height	Not Published	LL3106: 92.7 in
Loader Lift Capacity (Full Height)	LL3116: 2,185 lb	LL3106: 2,178 lb (at pivot pin)
Loader Breakout Force	Not Published	LL3106: 3,450 lb (at pivot pin)

Warranty Length & Coverage	6-year limited powertrain warranty	General: 2 years or 750 hours (whichever occurs first). Extended powertrain: 6 years or 1,500 hours (whichever occurs first), for tractors retailed after January 1, 2017

Find a LS Tractor dealer near you

LS Tractor MT340HC vs LS Tractor XR3140: Quick Answers

Which has more horsepower, the LS Tractor MT340HC or the LS Tractor XR3140?: They are effectively tied: both machines are rated at 40 hp hp for engine hp.
Which is heavier, the LS Tractor MT340HC or the LS Tractor XR3140?: The LS Tractor MT340HC leads on weight at 3,661 lb lb, compared to 3,615 lb lb for the LS Tractor XR3140.
Which has more loader lift capacity, the LS Tractor MT340HC or the LS Tractor XR3140?: The LS Tractor MT340HC leads on loader lift at 2,185 lb lb, compared to 2,178 lb lb for the LS Tractor XR3140.
Which has more three-point hitch lift capacity, the LS Tractor MT340HC or the LS Tractor XR3140?: The LS Tractor MT340HC leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,433 lb lb for the LS Tractor XR3140.

More Head-to-Heads

Category Verdict

Spec	LS Tractor MT340HC	LS Tractor XR3140
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	32 hp	n/a
Weight (lb)	▲ 3,661 lb	3,615 lb
Loader Lift (lb)	▲ 2,185 lb	2,178 lb
3-Pt Lift (24 in) (lb)	▲ 1,808 lb	1,433 lb
Lift Height (in)	n/a	92.7 in
Breakout Force (lbf)	n/a	3,450 lbf
Hydraulic Flow (gpm)	▲ 13.7 gpm	7.8 gpm
Travel Speed (mph)	n/a	14.3 mph

The headline numbers at a glance.

LS Tractor MT340HCLS Tractor XR3140

Engine HPhp

▲40 hp

PTO HPhp

32 hp

n/a

Weightlb

▲3,661 lb

3,175 lb

3,615 lb

Roll-barCabin

Loader Liftlb

▲2,185 lb

2,178 lb

3-Pt Lift (24 in)lb

▲1,808 lb

1,433 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorMT340HC	LS TractorXR3140


Engine Manufacturer	LS Mtron	LS
Engine Model	L3C19-T	L3C19-T4
Engine Type	Vertical, water-cooled, 4 cycle diesel	4-stroke, vertical, water cooling, CRDI
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	32 hp	Not Published
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry	Dry
Fuel System	CRDI	Delphi CRDI (Common Rail Direct Injection)
Alternator	70 A, 12 V	70 A, 12 V

Pump Type	Gear pump, engine drive	Gear pump type, engine drive
Implement Flow	8.2 gpm	7.8 gpm
Steering Flow	5.5 gpm	4.1 gpm (mechanical); 5.5 gpm (HST)
Total Hydraulic Flow	13.7 gpm	Not Published
Overall Hydraulic Pump Flow	13.7 gpm	Not Published
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	12.4 gal	10.6 gal (roll-bar); 12.4 gal (cabin)
Coolant Capacity	Not Published	1.9 gal
Crankcase Capacity	Not Published	1.5 gal
Transmission / Hydraulic System Capacity	Not Published	7.9 gal
Front Axle Fluid Capacity	Not Published	1.7 gal

PTO Type	Independent	Independent PTO with wet disk clutch
PTO Rear	540 rpm	540 (standard); 540 / 750 / 1,000 (optional 3-speed)
Mid-PTO Availability	Optional (2,000 rpm)	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	Not Published	1,433 lb
Lift Control Type	Position & Draft	Position and draft control

Transmission Type	Hydrostatic (HST)	Synchro-shuttle (mechanical)
No. of Speeds	3 ranges (HST)	F12 x R12
Max Travel Speed (Forward)	Not Published	14.33 mph
Max Travel Speed (Reverse)	Not Published	13.63 mph
Clutch	Not Published	Dry single clutch (mechanical only)
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical pedal type differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Hydrostatic
Brakes	Wet, Multi-disc	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	62 in
Wheelbase	69 in	69 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	9.2 ft (with brake applied)
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	86.6 in	86.6 in
Overall Length	128.3 in (frame to link)	128.3 in (bumper to link)

Tractor Weight (Base)	3,661 lb	Roll-bar: 3,175 lb; Cabin: 3,615 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, Industrial, Turf	Ag 7-14 / 11.2-24; Turf 25x8.5-14 / 41x14-20; Industrial 25x8.5-14 / 43x16-20
R1 Agricultural - Front	7-14	7-14 (4PR)
R1 Agricultural - Rear	11.2-24	11.2-24 (8PR)
R3 Turf - Front	25x8.5-14	25x8.5-14
R3 Turf - Rear	41x14-20	41x14-20
R4 Industrial - Front	25x8.5-14	25x8.5-14
R4 Industrial - Rear	43x16-20	43x16-20

Quick Attach Loader System	LL3116	Not Published
Loader Model	Not Published	LL3106
Loader Lift Height	Not Published	LL3106: 92.7 in
Loader Lift Capacity (Full Height)	LL3116: 2,185 lb	LL3106: 2,178 lb (at pivot pin)
Loader Breakout Force	Not Published	LL3106: 3,450 lb (at pivot pin)

Warranty Length & Coverage	6-year limited powertrain warranty	General: 2 years or 750 hours (whichever occurs first). Extended powertrain: 6 years or 1,500 hours (whichever occurs first), for tractors retailed after January 1, 2017

Find a LS Tractor dealer near you

LS Tractor MT340HC vs LS Tractor XR3140: Quick Answers

Which has more horsepower, the LS Tractor MT340HC or the LS Tractor XR3140?

They are effectively tied: both machines are rated at 40 hp hp for engine hp.

Which is heavier, the LS Tractor MT340HC or the LS Tractor XR3140?

The LS Tractor MT340HC leads on weight at 3,661 lb lb, compared to 3,615 lb lb for the LS Tractor XR3140.

Which has more loader lift capacity, the LS Tractor MT340HC or the LS Tractor XR3140?

The LS Tractor MT340HC leads on loader lift at 2,185 lb lb, compared to 2,178 lb lb for the LS Tractor XR3140.

Which has more three-point hitch lift capacity, the LS Tractor MT340HC or the LS Tractor XR3140?

The LS Tractor MT340HC leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,433 lb lb for the LS Tractor XR3140.
