Bad Boy Tractors 4035 Cab vs LS Tractor XR3140

Across 8 measurable specs, the Bad Boy Tractors 4035 Cab leads 6 categories to 2. Machine pages: Bad Boy Tractors 4035 Cab and LS Tractor XR3140.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

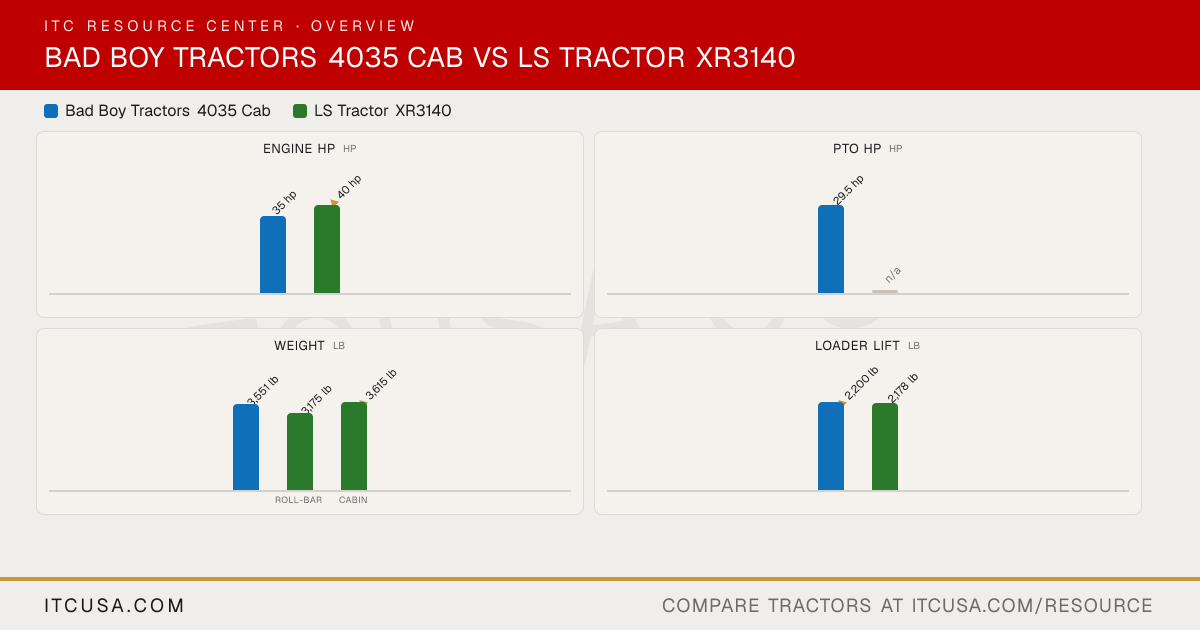

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	LS TractorXR3140

▶Engine
Engine Manufacturer	TYM	LS
Engine Model	A1700N4-BUTC_4	L3C19-T4
Engine Type	Vertical, 4-stroke, water-cooled diesel	4-stroke, vertical, water cooling, CRDI
No. of Cylinders	3	3
Displacement	104.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	29.5 hp	Not Published
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	Delphi CRDI (Common Rail Direct Injection)
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Not Published	Gear pump type, engine drive
Implement Flow	8.2 gpm	7.8 gpm
Steering Flow	4.4 gpm	4.1 gpm (mechanical); 5.5 gpm (HST)
Total Hydraulic Flow	12.6 gpm	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	Not Published
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	10.6 gal (roll-bar); 12.4 gal (cabin)
Coolant Capacity	1.32 gal	1.9 gal
Crankcase Capacity	1.14 gal	1.5 gal
Transmission / Hydraulic System Capacity	9.77 gal	7.9 gal
Front Axle Fluid Capacity	1.69 gal	1.7 gal
▶PTO & Hitch
PTO Type	Independent	Independent PTO with wet disk clutch
PTO Rear	540 rpm	540 (standard); 540 / 750 / 1,000 (optional 3-speed)
Mid-PTO Availability	Not Published	Yes, 2000 rpm mid-PTO
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306.9 lb	1,808 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,433 lb
Lift Control Type	Position control	Position and draft control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Synchro-shuttle (mechanical)
No. of Speeds	3 range (HST)	F12 x R12
Max Travel Speed (Forward)	18.21 mph	14.33 mph
Max Travel Speed (Reverse)	18.21 mph	13.63 mph
Clutch	None (HST)	Dry single clutch (mechanical only)
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical pedal type differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Hydrostatic
Brakes	Wet, multi-disc	Wet disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	128.3 in
Overall Width	56.3 in	62 in
Wheelbase	65.7 in	69 in
Ground Clearance	13.19 in	Not Published
Min. Turn Radius without Brakes	Not Published	9.2 ft (with brake applied)
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	86.6 in
▶Weight
Tractor Weight (Base)	3,551 lb	Roll-bar: 3,175 lb; Cabin: 3,615 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	Ag 7-14 / 11.2-24; Turf 25x8.5-14 / 41x14-20; Industrial 25x8.5-14 / 43x16-20
R1 Agricultural - Front	7-16	7-14 (4PR)
R1 Agricultural - Rear	11.2-24	11.2-24 (8PR)
R3 Turf - Front	Not Published	25x8.5-14
R3 Turf - Rear	Not Published	41x14-20
R4 Industrial - Front	28x8.50-15	25x8.5-14
R4 Industrial - Rear	43x16.00-20	43x16-20
▶Loader & Attachments
Quick Attach Loader System	SSQA	Not Published
Loader Model	BBL400	LL3106
Loader Lift Height	104 in	LL3106: 92.7 in
Loader Lift Capacity (Full Height)	2,200 lb	LL3106: 2,178 lb
Loader Breakout Force	3,660 lb	LL3106: 3,450 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	6-year / 1,500-hour limited powertrain warranty; 2-year / 750-hour bumper-to-bumper warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a LS Tractor dealer near you→

Bad Boy Tractors 4035 Cab vs LS Tractor XR3140: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the LS Tractor XR3140?

The LS Tractor XR3140 leads on engine hp at 40 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the LS Tractor XR3140?

The LS Tractor XR3140 leads on weight at 3,615 lb lb, compared to 3,551 lb lb for the Bad Boy Tractors 4035 Cab.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the LS Tractor XR3140?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 2,178 lb lb for the LS Tractor XR3140.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the LS Tractor XR3140?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the LS Tractor XR3140.
