LS Tractor MT340HC vs LS Tractor XR4040
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 8 measurable specs, the LS Tractor XR4040 leads 6 categories to 0 (2 tied). Machine pages: LS Tractor MT340HC and LS Tractor XR4040.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

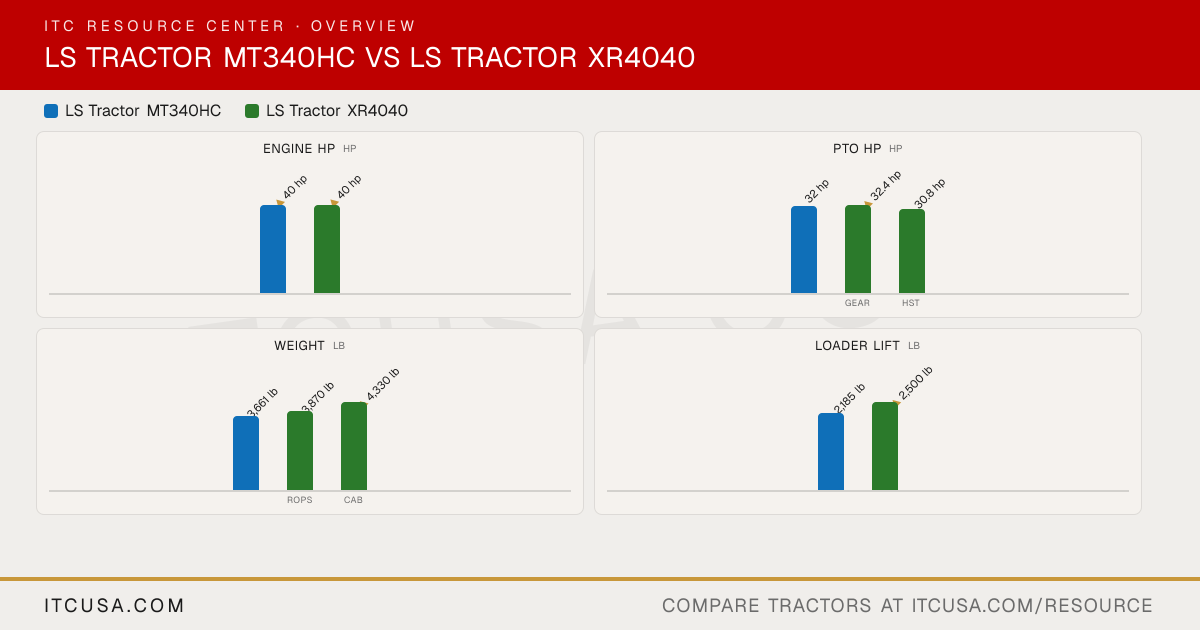

Category Verdict
| Spec | LS Tractor MT340HC | LS Tractor XR4040 |
|---|---|---|
| Engine HP (hp) | 40 hp | 40 hp |
| PTO HP (hp) | 32 hp | ▲ 32.4 hp |
| Weight (lb) | 3,661 lb | ▲ 4,330 lb |
| Loader Lift (lb) | 2,185 lb | ▲ 2,500 lb |
| 3-Pt Lift (24 in) (lb) | 1,433 lb | ▲ 2,469 lb |
| Lift Height (in) | 94.4 in | ▲ 96.1 in |
| Breakout Force (lbf) | 3,612 lbf | ▲ 4,354 lbf |
| Hydraulic Flow (gpm) | 13.7 gpm | 13.7 gpm |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | LS TractorMT340HC | LS TractorXR4040 |
|---|
| Engine Manufacturer | LS Mtron | Shibaura (ISM) |
|---|---|---|
| Engine Model | L3C19-T | N844L-F |
| Engine Type | Vertical, water-cooled, 4 cycle diesel | 4-cylinder, indirect injection, water-cooled diesel |
| No. of Cylinders | 3 | 4 |
| Displacement | 114.7 in³ | 135.2 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 40 hp | 40 hp |
| PTO Power | 32 hp | XR4040, XR4040C (gear): 32.4 hp; XR4040H, XR4040HC (HST): 30.8 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Water-cooled | Water-cooled |
| Air Cleaner | Dry | Dry |
| Fuel System | Delphi, CRDI | Indirect injection |
| Alternator | 70 A, 12 V | 85 A, 12 V |
LS Tractor MT340HC vs LS Tractor XR4040: Quick Answers
- Which has more horsepower, the LS Tractor MT340HC or the LS Tractor XR4040?
- They are effectively tied: both machines are rated at 40 hp hp for engine hp.
- Which has more PTO horsepower, the LS Tractor MT340HC or the LS Tractor XR4040?
- The LS Tractor XR4040 leads on pto hp at 32.4 hp hp, compared to 32 hp hp for the LS Tractor MT340HC.
- Which is heavier, the LS Tractor MT340HC or the LS Tractor XR4040?
- The LS Tractor XR4040 leads on weight at 4,330 lb lb, compared to 3,661 lb lb for the LS Tractor MT340HC.
- Which has more loader lift capacity, the LS Tractor MT340HC or the LS Tractor XR4040?
- The LS Tractor XR4040 leads on loader lift at 2,500 lb lb, compared to 2,185 lb lb for the LS Tractor MT340HC.
- Which has more three-point hitch lift capacity, the LS Tractor MT340HC or the LS Tractor XR4040?
- The LS Tractor XR4040 leads on 3-pt lift (24 in) at 2,469 lb lb, compared to 1,433 lb lb for the LS Tractor MT340HC.
