Across 2 measurable specs, the TYM 3520 leads 1 categories to 0 (1 tied). Machine pages: LS Tractor MT235E and TYM 3520.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | LS Tractor MT235E | TYM 3520 |
|---|
| Engine HP (hp) | 35 hp | 35 hp |
| PTO HP (hp) | 29.7 hp | n/a |
| Weight (lb) | 2,866 lb | ▲ 3,624 lb |
| Loader Lift (lb) | 1,688 lb | n/a |
| 3-Pt Lift (24 in) (lb) | 1,433 lb | n/a |
| Lift Height (in) | 94 in | n/a |
| Breakout Force (lbf) | 2,855 lbf | n/a |
| Hydraulic Flow (gpm) | 12.3 gpm | n/a |
| Travel Speed (mph) | 14.3 mph | n/a |

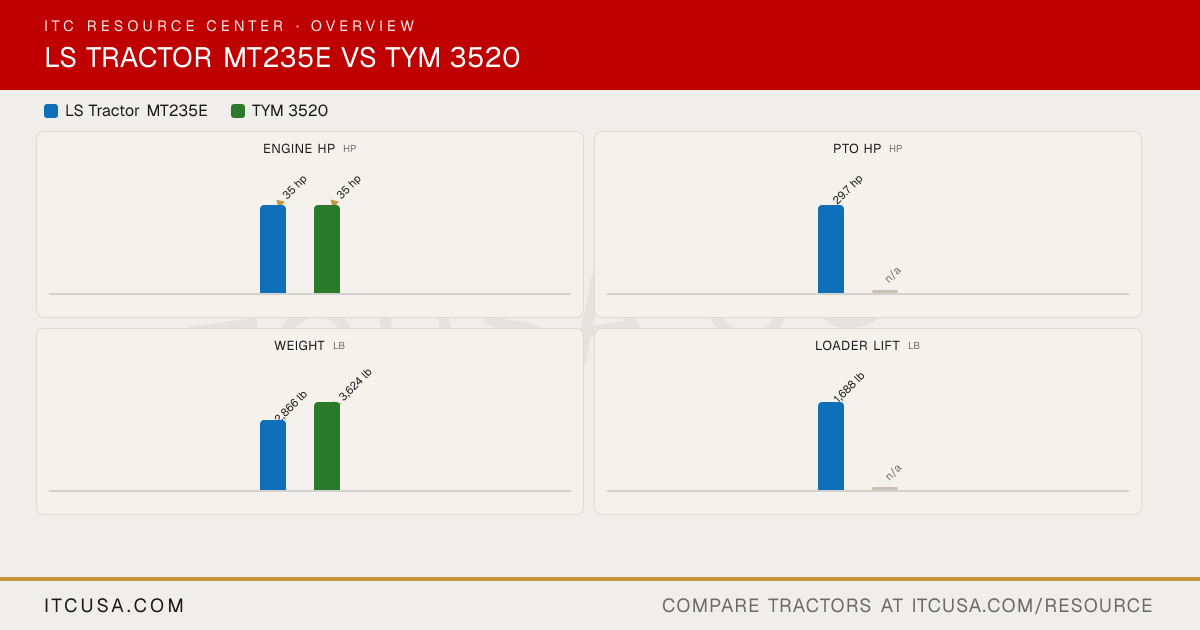

The headline numbers at a glance.
LS Tractor MT235ETYM 3520
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | LS TractorMT235E | TYM3520 |
|---|
|
|---|
| Engine Manufacturer | LS | Kukje |
|---|
| Engine Model | L3C19-D2 | 3T90L-ATC |
|---|
| Engine Type | 3-cylinder, liquid-cooled, diesel, naturally aspirated, CRDI | Diesel, liquid-cooled |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 114.7 in³ | 109.5 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 35 hp | 35 hp |
|---|
| PTO Power | 29.7 hp | Not Published |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Dry | Dry element |
|---|
| Fuel System | CRDI (Delphi common rail direct injection) | Not Published |
|---|
| Alternator | 70 A, 12 V | Not Published |
|---|
|
|---|
| Pump Type | Gear pump, engine driven | Not Published |
|---|
| Implement Flow | 8.2 gpm | Not Published |
|---|
| Steering Flow | 4.1 gpm | Not Published |
|---|
| Total Hydraulic Flow | 12.3 gpm | Not Published |
|---|
| Overall Hydraulic Pump Flow | 12.3 gpm | Not Published |
|---|
| Hydraulic System Type | Open center system, position control | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 0 | Not Published |
|---|
| No. of Optional Remote Valves | 1 or 2 pairs (optional) | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 7.4 gal | 10.6 gal |
|---|
| Coolant Capacity | 1.9 gal | Not Published |
|---|
| Crankcase Capacity | 1.5 gal | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 8.5 gal | Not Published |
|---|
| Front Axle Fluid Capacity | 1.7 gal | Not Published |
|---|
|
|---|
| PTO Type | Independent (wet disc clutch) | Transmission-driven |
|---|
| PTO Rear | Standard (540 rpm) | 540 / 1000 rpm |
|---|
| Mid-PTO Availability | Optional (2,000 rpm) | Not Published |
|---|
| Category, 3-Point Hitch | Category I | Category I |
|---|
| Hitch Lift Capacity | 1,808 lb | Not Published |
|---|
| Hitch Lift Capacity (at 24”) | 1,433 lb | Not Published |
|---|
| Lift Control Type | Position control | Not Published |
|---|
|
|---|
| Transmission Type | Synchro Shuttle | Synchronized shuttle |
|---|
| No. of Speeds | F12 x R12 | 12F/12R |
|---|
| Max Travel Speed (Forward) | 14.33 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | 13.63 mph | Not Published |
|---|
| Clutch | Dry single clutch | Not Published |
|---|
| Differential Lock & Limited Slip Options | Mechanical pedal type | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering | Power steering |
|---|
| Brakes | Wet, multi-disc | Wet disc |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | Front wheel mechanical assist (4WD) | 4WD (MFWD) |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 121 in | 129.7 in |
|---|
| Overall Width | 54 in (R1); 66 in (R4) | 60 in |
|---|
| Wheelbase | 69 in | 68.8 in |
|---|
| Ground Clearance | Not Published | 12.2 in |
|---|
| Min. Turn Radius without Brakes | 10.79 ft (left); 11.02 ft (right) | Not Published |
|---|
| Height to Top of ROPS | 88 in | 86.4 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 2,866 lb | 3,624 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 agricultural, R4 industrial or R3 turf at no extra cost | Agricultural: 8-18 front / 12.4-28 rear |
|---|
| R1 Agricultural - Front | 7-14 | 8-18 |
|---|
| R1 Agricultural - Rear | 11.2-24 | 12.4-28 |
|---|
| R3 Turf - Front | 25x8.50-14 | Not Published |
|---|
| R3 Turf - Rear | 41x14-20 | Not Published |
|---|
| R4 Industrial - Front | 25x8.50-14 | Not Published |
|---|
| R4 Industrial - Rear | 43x16-20 | Not Published |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Not Published |
|---|
| Loader Model | LL3301 | Not Published |
|---|
| Loader Lift Height | LL3301: 94 in | Not Published |
|---|
| Loader Lift Capacity (Full Height) | LL3301: 1,688 lb (at pivot pin, full height) | Not Published |
|---|
| Loader Breakout Force | LL3301: 2,855 lb (at pivot pin) | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | 6-year limited warranty | Not Published |
|---|
LS Tractor MT235E vs TYM 3520: Quick Answers
- Which has more horsepower, the LS Tractor MT235E or the TYM 3520?
- They are effectively tied: both machines are rated at 35 hp hp for engine hp.
- Which is heavier, the LS Tractor MT235E or the TYM 3520?
- The TYM 3520 leads on weight at 3,624 lb lb, compared to 2,866 lb lb for the LS Tractor MT235E.
