Bad Boy Tractors 4035 vs LS Tractor MT235E

Across 9 measurable specs, the Bad Boy Tractors 4035 leads 7 categories to 1 (1 tied). Machine pages: Bad Boy Tractors 4035 and LS Tractor MT235E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

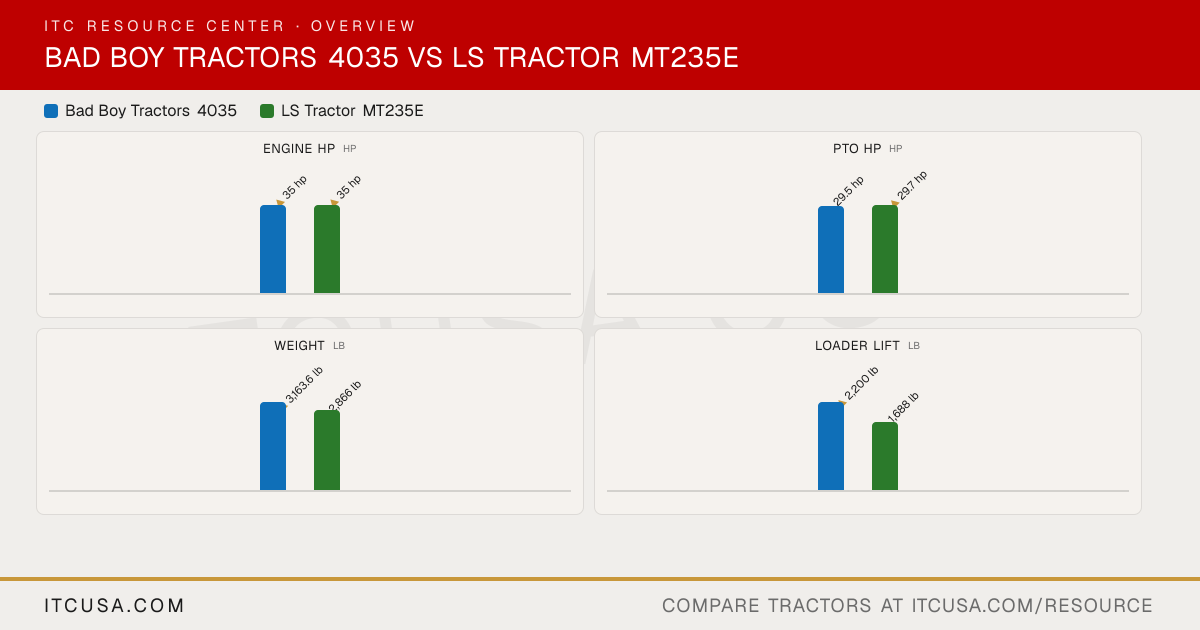

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	LS TractorMT235E

▶Engine
Engine Manufacturer	TYM	LS
Engine Model	A1700N4-BUTR_4	L3C19-D2
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder, liquid-cooled, diesel, naturally aspirated, CRDI
No. of Cylinders	3	3
Displacement	104.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	35 hp
PTO Power	29.5 hp	29.7 hp
Engine Emissions Constraints	EPA Final Tier4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	CRDI (Delphi common rail direct injection)
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Not Published	Gear pump, engine driven
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	4.4 gpm	4.1 gpm
Total Hydraulic Flow	12.6 gpm	12.3 gpm
Overall Hydraulic Pump Flow	12.6 gpm	12.3 gpm
Hydraulic System Type	Open center	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Up to 2	1 or 2 pairs (optional)
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	7.4 gal
Coolant Capacity	1.32 gal	1.9 gal
Crankcase Capacity	1.14 gal	1.5 gal
Transmission / Hydraulic System Capacity	9.77 gal	8.5 gal
Front Axle Fluid Capacity	1.69 gal	1.7 gal
▶PTO & Hitch
PTO Type	Independent	Independent (wet disc clutch)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Not Published	Optional (2,000 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306.9 lb	1,808 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,433 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Synchro Shuttle
No. of Speeds	3 range (HST)	F12 x R12
Max Travel Speed (Forward)	19.08 mph	14.33 mph
Max Travel Speed (Reverse)	19.08 mph	13.63 mph
Clutch	None (HST)	Dry single clutch
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical pedal type
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	121 in
Overall Width	56.7 in	54 in (R1); 66 in (R4)
Wheelbase	65.7 in	69 in
Ground Clearance	15 in	Not Published
Min. Turn Radius without Brakes	Not Published	10.79 ft (left); 11.02 ft (right)
Height to Top of ROPS	96.85 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,163.6 lb	2,866 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 agricultural, R4 industrial or R3 turf at no extra cost
R1 Agricultural - Front	8.0-16	7-14
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	41x14-20
R4 Industrial - Front	28x8.50-15	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16-20
▶Loader & Attachments
Quick Attach Loader System	SSQA	Not Published
Loader Model	BBL400	LL3301
Loader Lift Height	104 in	LL3301: 94 in
Loader Lift Capacity (Full Height)	2,200 lb	LL3301: 1,688 lb (at pivot pin, full height)
Loader Breakout Force	3,660 lb	LL3301: 2,855 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	6-year limited warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a LS Tractor dealer near you→

Bad Boy Tractors 4035 vs LS Tractor MT235E: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the LS Tractor MT235E?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the LS Tractor MT235E?

The LS Tractor MT235E leads on pto hp at 29.7 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035.

Which is heavier, the Bad Boy Tractors 4035 or the LS Tractor MT235E?

The Bad Boy Tractors 4035 leads on weight at 3,163.6 lb lb, compared to 2,866 lb lb for the LS Tractor MT235E.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the LS Tractor MT235E?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,688 lb lb for the LS Tractor MT235E.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the LS Tractor MT235E?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the LS Tractor MT235E.
