Bad Boy Tractors 4025 vs LS Tractor MT235E

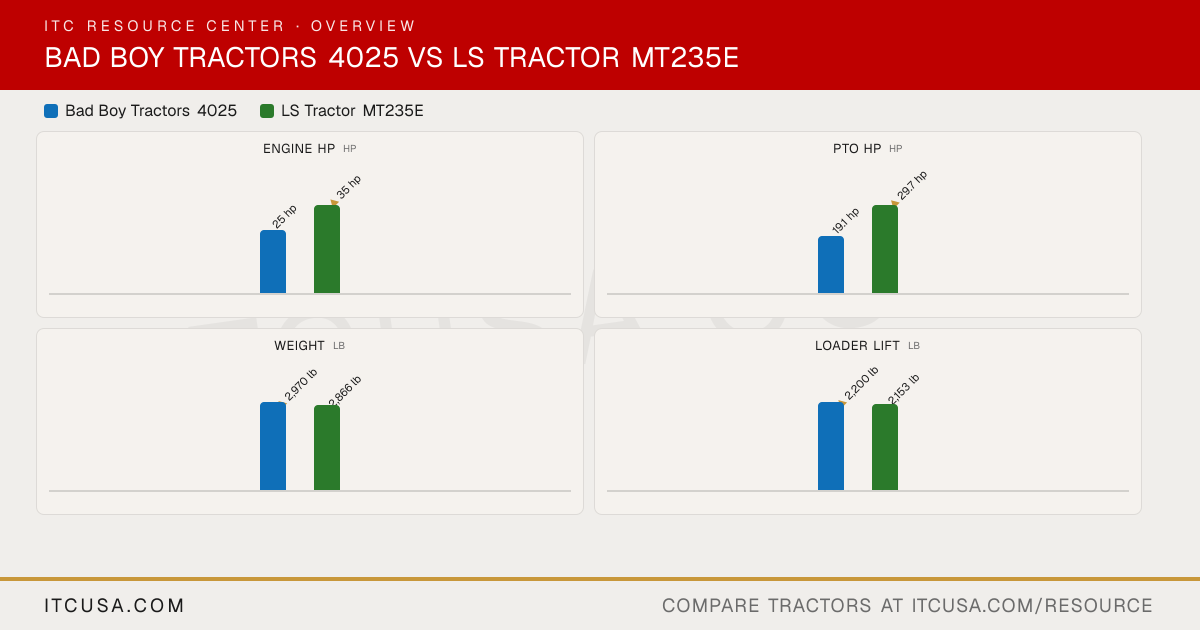

Across 8 measurable specs, the Bad Boy Tractors 4025 leads 5 categories to 3. Machine pages: Bad Boy Tractors 4025 and LS Tractor MT235E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	LS TractorMT235E

▶Engine
Engine Manufacturer	TYM	LS
Engine Model	A1700N6-BUTR_3	L3C19-D2
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder, liquid-cooled, diesel, naturally aspirated, CRDI
No. of Cylinders	3	3
Displacement	104.7 in³	114.7 in³
Rated Engine Speed	2100 rpm	2600 rpm
Engine Power (Gross)	25 hp	35 hp
PTO Power	19.1 hp	29.7 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Dry
Fuel System	Not Published	CRDI (Delphi common rail direct injection)
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Gear pump, engine driven
Implement Flow	7.5 gpm	8.2 gpm
Steering Flow	4 gpm	4.1 gpm
Total Hydraulic Flow	11.5 gpm	12.3 gpm
Overall Hydraulic Pump Flow	11.5 gpm	12.3 gpm
Hydraulic System Type	Open center	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	2	1 or 2 pairs (optional)
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	7.4 gal
Coolant Capacity	1.32 gal	1.9 gal
Crankcase Capacity	1.14 gal	1.5 gal
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	8.5 gal
Front Axle Fluid Capacity	Not Published	1.7 gal
▶PTO & Hitch
PTO Type	Independent	Independent (wet disc clutch)
PTO Rear	533 rpm	Standard (540 rpm)
Mid-PTO Availability	Not Published	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,307 lb	1,808 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1,433 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Synchro Shuttle
No. of Speeds	3 range (A/B/C)	F12 x R12
Max Travel Speed (Forward)	Not Published	14.33 mph
Max Travel Speed (Reverse)	Not Published	13.63 mph
Clutch	None (HST)	Dry single clutch
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical pedal type
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	121 in
Overall Width	56.7 in	54 in (R1); 66 in (R4)
Wheelbase	65.7 in	69 in
Ground Clearance	15 in	Not Published
Min. Turn Radius without Brakes	Not Published	10.79 ft (left); 11.02 ft (right)
Height to Top of ROPS	96.85 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,970 lb	2,866 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 / 15-19.5)	R1 agricultural, R4 industrial or R3 turf at no extra cost
R1 Agricultural - Front	8.0-16	7-14
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	41x14-20
R4 Industrial - Front	25x8.50-14	27x8.50-14
R4 Industrial - Rear	15-19.5	43x16-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL400	LL3302
Loader Lift Height	104 in	LL3302: 94 in
Loader Lift Capacity (Full Height)	2,200 lb	LL3302: 2,153 lb (at pivot pin, full height)
Loader Breakout Force	3,660 lbf	LL3302: 3,579 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	6-year limited warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a LS Tractor dealer near you→

Bad Boy Tractors 4025 vs LS Tractor MT235E: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the LS Tractor MT235E?

The LS Tractor MT235E leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 4025.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the LS Tractor MT235E?

The LS Tractor MT235E leads on pto hp at 29.7 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.

Which is heavier, the Bad Boy Tractors 4025 or the LS Tractor MT235E?

The Bad Boy Tractors 4025 leads on weight at 2,970 lb lb, compared to 2,866 lb lb for the LS Tractor MT235E.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the LS Tractor MT235E?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 2,153 lb lb for the LS Tractor MT235E.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the LS Tractor MT235E?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,433 lb lb for the LS Tractor MT235E.
