Bad Boy Tractors 3026 vs LS Tractor MT235E

Across 9 measurable specs, the LS Tractor MT235E leads 8 categories to 1. Machine pages: Bad Boy Tractors 3026 and LS Tractor MT235E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	LS TractorMT235E

▶Engine
Engine Manufacturer	TYM	LS
Engine Model	A1100N2	L3C19-D2
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	3-cylinder, liquid-cooled, diesel, naturally aspirated, CRDI
No. of Cylinders	3	3
Displacement	71.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	25 hp	35 hp
PTO Power	18 hp	29.7 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dry
Fuel System	Indirect injection (swirl chamber)	CRDI (Delphi common rail direct injection)
Alternator	50 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Gear pump, engine driven
Implement Flow	4.3 gpm	8.2 gpm
Steering Flow	3.1 gpm	4.1 gpm
Total Hydraulic Flow	7.4 gpm	12.3 gpm
Overall Hydraulic Pump Flow	7.7 gpm	12.3 gpm
Hydraulic System Type	Open center	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0
No. of Optional Remote Valves	1	1 or 2 pairs (optional)
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	7.4 gal
Coolant Capacity	1.21 gal	1.9 gal
Crankcase Capacity	0.79 gal	1.5 gal
Transmission / Hydraulic System Capacity	2.90 gal	8.5 gal
Front Axle Fluid Capacity	0.79 gal	1.7 gal
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent (wet disc clutch)
PTO Rear	540 / 960 rpm	Standard (540 rpm)
Mid-PTO Availability	Optional, 2,500 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	1,808 lb
Hitch Lift Capacity (at 24”)	974 lb	1,433 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Synchro Shuttle
No. of Speeds	3 range (L/M/H)	F12 x R12
Max Travel Speed (Forward)	14.8 mph	14.33 mph
Max Travel Speed (Reverse)	14.8 mph	13.63 mph
Clutch	Dry, single plate	Dry single clutch
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical pedal type
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	121 in
Overall Width	53.8 in	54 in (R1); 66 in (R4)
Wheelbase	65.7 in	69 in
Ground Clearance	16.4 in	Not Published
Min. Turn Radius without Brakes	Not Published	10.79 ft (left); 11.02 ft (right)
Height to Top of ROPS	91.4 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,106 lb	2,866 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	R1 agricultural, R4 industrial or R3 turf at no extra cost
R1 Agricultural - Front	7-16 6PR	7-14
R1 Agricultural - Rear	11.2-20	11.2-24
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	41x14-20
R4 Industrial - Front	25x8.50-14	27x8.50-14
R4 Industrial - Rear	14x17.5	43x16-20
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL300	LL3302
Loader Lift Height	86 in	LL3302: 94 in
Loader Lift Capacity (Full Height)	1,314 lb	LL3302: 2,153 lb (at pivot pin, full height)
Loader Breakout Force	1,960 lbf	LL3302: 3,579 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	6-year limited warranty
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a LS Tractor dealer near you→

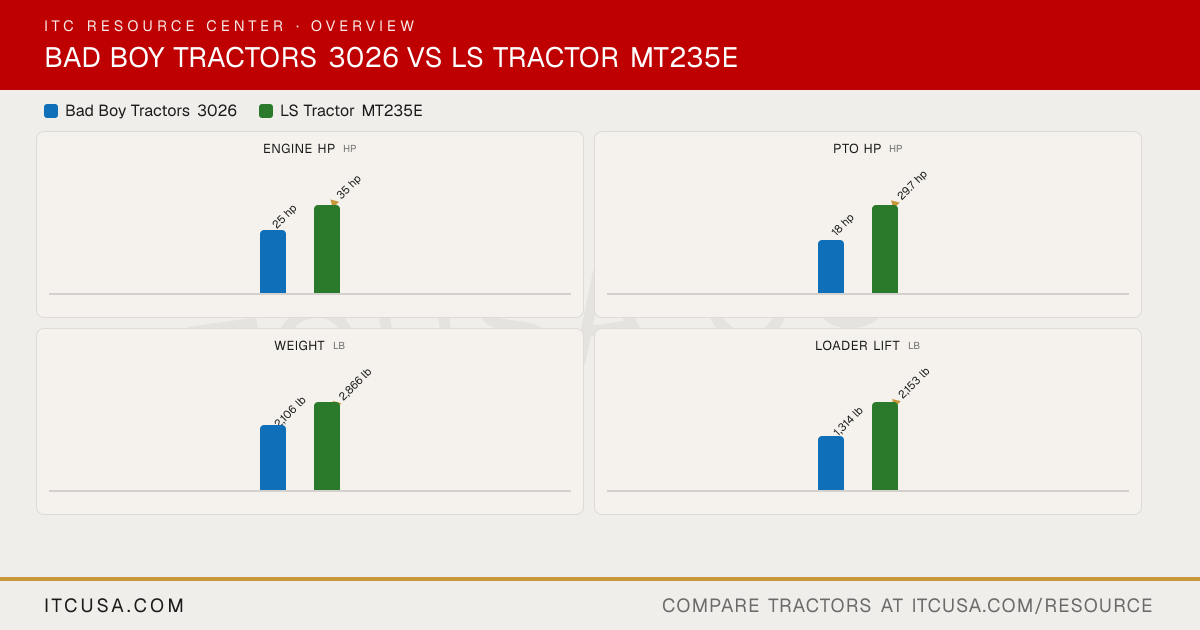

Bad Boy Tractors 3026 vs LS Tractor MT235E: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the LS Tractor MT235E?

The LS Tractor MT235E leads on engine hp at 35 hp hp, compared to 25 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the LS Tractor MT235E?

The LS Tractor MT235E leads on pto hp at 29.7 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the LS Tractor MT235E?

The LS Tractor MT235E leads on weight at 2,866 lb lb, compared to 2,106 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the LS Tractor MT235E?

The LS Tractor MT235E leads on loader lift at 2,153 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the LS Tractor MT235E?

The LS Tractor MT235E leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
