LS Tractor XR4140 vs New Holland Workmaster 40C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the LS Tractor XR4140 leads 6 categories to 2 (1 tied). Machine pages: LS Tractor XR4140 and New Holland Workmaster 40C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor XR4140	New Holland Workmaster 40C
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	34.4 hp	▲ 35.9 hp
Weight (lb)	▲ 4,210 lb	3,073 lb
Loader Lift (lb)	▲ 2,713 lb	1,344 lb
3-Pt Lift (24 in) (lb)	▲ 2,469 lb	1,596 lb
Lift Height (in)	▲ 96.3 in	92 in
Breakout Force (lbf)	▲ 3,802 lbf	2,138 lbf
Hydraulic Flow (gpm)	12.3 gpm	▲ 13.3 gpm
Travel Speed (mph)	▲ 16.8 mph	14.9 mph

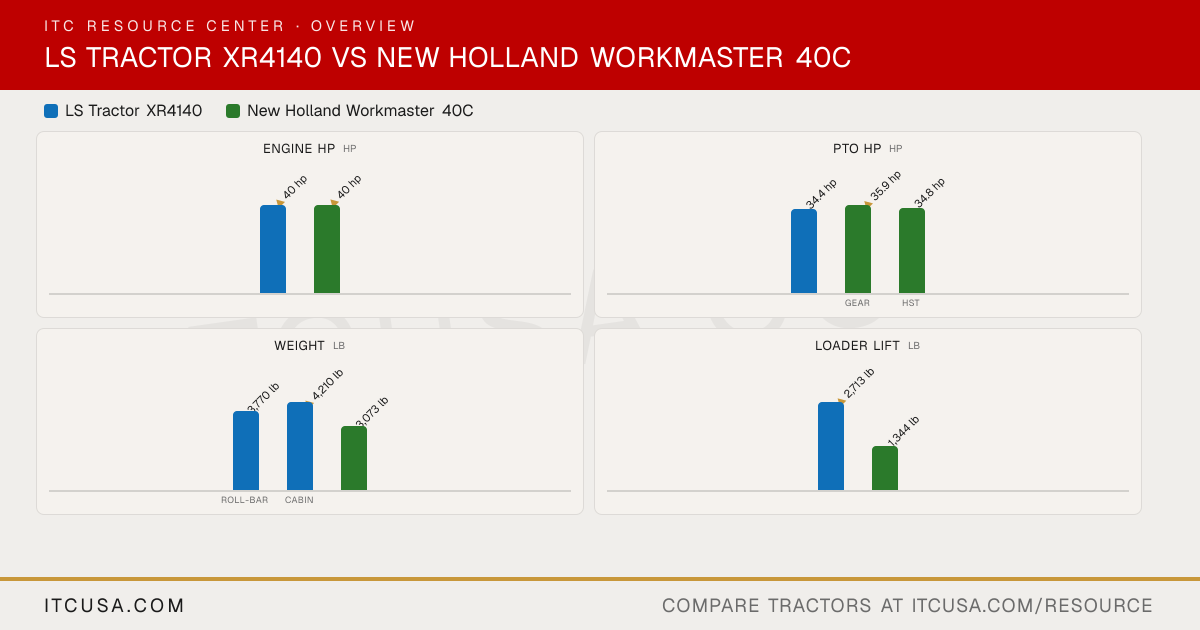

The headline numbers at a glance.

LS Tractor XR4140New Holland Workmaster 40C

Engine HPhp

▲40 hp

PTO HPhp

34.4 hp

▲35.9 hp

34.8 hp

GearHST

Weightlb

3,770 lb

▲4,210 lb

3,073 lb

Roll-barCabin

Loader Liftlb

▲2,713 lb

1,344 lb

3-Pt Lift (24 in)lb

▲2,469 lb

1,596 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorXR4140	New HollandWorkmaster 40C


Engine Manufacturer	LS	LS Mtron
Engine Model	L3C19-T4	Not Published
Engine Type	4-stroke, vertical, water cooling, CRDI	3-cylinder, turbocharged diesel
No. of Cylinders	3	3
Displacement	114.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	34.4 hp	Gear: 35.9 hp; HST: 34.8 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Dry	Dual-element
Fuel System	Delphi CRDI (Common Rail Direct Injection)	Common rail direct injection
Alternator	70 A, 12 V	70 A

Pump Type	Gear pump type, engine drive	Dual pump (dedicated steering pump)
Implement Flow	8.2 gpm	8.4 gpm
Steering Flow	4.1 gpm (mechanical); 5.5 gpm (HST)	4.9 gpm
Total Hydraulic Flow	12.3 gpm	13.3 gpm
Overall Hydraulic Pump Flow	Not Published	13.3 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2	0 (rear remotes optional)
No. of Optional Remote Valves	Not Published	Up to 3

Fuel Tank Capacity	10.6 gal (roll-bar); 12.4 gal (cabin)	12.6 gal
Coolant Capacity	2.3 gal	Not Published
Crankcase Capacity	1.6 gal	Not Published
Transmission / Hydraulic System Capacity	11.4 gal	Not Published
Front Axle Fluid Capacity	2.1 gal	Not Published

PTO Type	Independent PTO with wet disk clutch	Gear: Transmission driven with overrunning clutch; HST: Independent electrohydraulic wet clutch
PTO Rear	540 (standard); 540 / 750 / 1,000 (optional 3-speed)	540 rpm
Mid-PTO Availability	Yes, 2000 rpm mid-PTO	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	2,756 lb	2067 lb
Hitch Lift Capacity (at 24”)	2,469 lb	1596 lb
Lift Control Type	Position and draft control	Position control with drop-rate control

Transmission Type	Synchro-shuttle (mechanical)	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals
No. of Speeds	F16 x R16 (F32 x R16 with creeper, optional)	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)
Max Travel Speed (Forward)	16.8 mph	Gear: 14.3 mph; HST: 14.9 mph
Max Travel Speed (Reverse)	15.3 mph	Not Published
Clutch	Dry single clutch (mechanical only)	Not Published
Differential Lock & Limited Slip Options	Mechanical pedal type differential lock	Rear differential lock, mechanical (foot-engaged)

Frame Type	Not Published	Not Published
Steering	Hydrostatic	Power steering (dedicated steering pump)
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests
Front Axle Type	Not Published	4WD front axle, mechanically engaged
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	133 in	133 in
Overall Width	62.5 in	65.4 in
Wheelbase	73.2 in	66 in
Ground Clearance	Not Published	12.7 in
Min. Turn Radius without Brakes	9.5 ft (with brake applied)	123.2 in
Height to Top of ROPS	93 in	92.4 in
Height to Top of ROPS (folded)	Not Published	74 in
Height to Top of Cab Model	92 in	Not Published

Tractor Weight (Base)	Roll-bar: 3,770 lb; Cabin: 4,210 lb	3073 lb
Weight with ROPS and Loader	Not Published	4142 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag 9.5-16 / 13.6-24; Turf 28x8.5-15 / 41x14-20; Industrial 12-16.5 / 17.5L-24	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial
R1 Agricultural - Front	9.5-16 (6PR)	Not Published
R1 Agricultural - Rear	13.6-24 (8PR)	Not Published
R3 Turf - Front	28x8.5-15	Not Published
R3 Turf - Rear	41x14-20	Not Published
R4 Industrial - Front	12-16.5	25x8.50-14
R4 Industrial - Rear	17.5L-24	43x16-20

Quick Attach Loader System	Not Published	Skid steer quick attach
Loader Model	LL4104	250LC
Loader Lift Height	LL4104: 96.3 in	250LC: 92 in
Loader Lift Capacity (Full Height)	LL4104: 2,713 lb	250LC: 1344 lb
Loader Breakout Force	LL4104: 3,802 lb	250LC: 2,138 lb

Warranty Length & Coverage	6-year / 1,500-hour limited powertrain warranty; 2-year / 750-hour bumper-to-bumper warranty	24 months / 750 hours full coverage; 72 months / 1,500 hours powertrain

Find a LS Tractor dealer near you Find a New Holland dealer near you

LS Tractor XR4140 vs New Holland Workmaster 40C: Quick Answers

Which has more horsepower, the LS Tractor XR4140 or the New Holland Workmaster 40C?: They are effectively tied: both machines are rated at 40 hp hp for engine hp.
Which has more PTO horsepower, the LS Tractor XR4140 or the New Holland Workmaster 40C?: The New Holland Workmaster 40C leads on pto hp at 35.9 hp hp, compared to 34.4 hp hp for the LS Tractor XR4140.
Which is heavier, the LS Tractor XR4140 or the New Holland Workmaster 40C?: The LS Tractor XR4140 leads on weight at 4,210 lb lb, compared to 3,073 lb lb for the New Holland Workmaster 40C.
Which has more loader lift capacity, the LS Tractor XR4140 or the New Holland Workmaster 40C?: The LS Tractor XR4140 leads on loader lift at 2,713 lb lb, compared to 1,344 lb lb for the New Holland Workmaster 40C.
Which has more three-point hitch lift capacity, the LS Tractor XR4140 or the New Holland Workmaster 40C?: The LS Tractor XR4140 leads on 3-pt lift (24 in) at 2,469 lb lb, compared to 1,596 lb lb for the New Holland Workmaster 40C.
