Bad Boy Tractors 4035 Cab vs New Holland Workmaster 40C

Across 9 measurable specs, the Bad Boy Tractors 4035 Cab leads 6 categories to 3. Machine pages: Bad Boy Tractors 4035 Cab and New Holland Workmaster 40C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	New HollandWorkmaster 40C

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1700N4-BUTC_4	Not Published
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder, turbocharged diesel
No. of Cylinders	3	3
Displacement	104.7 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	29.5 hp	Gear: 35.9 hp; HST: 34.8 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid cooled
Air Cleaner	Not Published	Dual-element
Fuel System	Not Published	Common rail direct injection
Alternator	50 A, 12 V	70 A
▶Hydraulics
Pump Type	Not Published	Dual pump (dedicated steering pump)
Implement Flow	8.2 gpm	8.4 gpm
Steering Flow	4.4 gpm	4.9 gpm
Total Hydraulic Flow	12.6 gpm	13.3 gpm
Overall Hydraulic Pump Flow	12.6 gpm	13.3 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0 (rear remotes optional)
No. of Optional Remote Valves	Up to 2	Up to 3
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	12.6 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	9.77 gal	Not Published
Front Axle Fluid Capacity	1.69 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Gear: Transmission driven with overrunning clutch; HST: Independent electrohydraulic wet clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	3,306.9 lb	2067 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1596 lb
Lift Control Type	Position control	Position control with drop-rate control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Gear: 12x12 gear with synchronized shuttle; HST: 3-range hydrostatic with dual pedals
No. of Speeds	3 range (HST)	Gear: 12 forward / 12 reverse; HST: infinite (3 ranges)
Max Travel Speed (Forward)	18.21 mph	Gear: 14.3 mph; HST: 14.9 mph
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Rear differential lock, mechanical (foot-engaged)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Power steering (dedicated steering pump)
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Vinyl suspension seat, fore-and-aft adjustment on incline track, adjustable weight suspension; optional armrests
Front Axle Type	Selectable 4WD	4WD front axle, mechanically engaged
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	133 in
Overall Width	56.3 in	65.4 in
Wheelbase	65.7 in	66 in
Ground Clearance	13.19 in	12.7 in
Min. Turn Radius without Brakes	Not Published	123.2 in
Height to Top of ROPS	Not Published	92.4 in
Height to Top of ROPS (folded)	Not Published	74 in
Height to Top of Cab Model	85.9 in	Not Published
▶Weight
Tractor Weight (Base)	3,551 lb	3073 lb
Weight with ROPS and Loader	Not Published	4142 lb
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Ag, R3 Turf, R3+ (R3/R4) Hybrid, R4 Industrial
R1 Agricultural - Front	7-16	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	28x8.50-15	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16-20
▶Loader & Attachments
Quick Attach Loader System	SSQA	Skid steer quick attach
Loader Model	BBL400	250LC
Loader Lift Height	104 in	250LC: 92 in
Loader Lift Capacity (Full Height)	2,200 lb	250LC: 1344 lb
Loader Breakout Force	3,660 lb	250LC: 2,138 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	24 months / 750 hours full coverage; 72 months / 1,500 hours powertrain
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

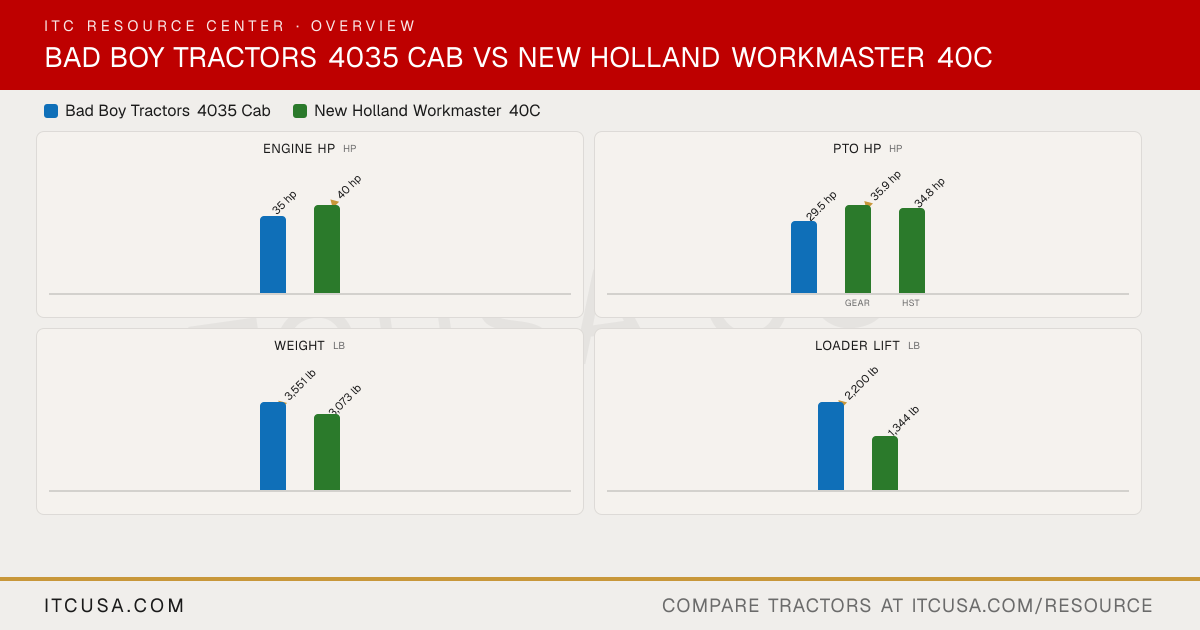

Bad Boy Tractors 4035 Cab vs New Holland Workmaster 40C: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the New Holland Workmaster 40C?

The New Holland Workmaster 40C leads on engine hp at 40 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the New Holland Workmaster 40C?

The New Holland Workmaster 40C leads on pto hp at 35.9 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the New Holland Workmaster 40C?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 3,073 lb lb for the New Holland Workmaster 40C.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the New Holland Workmaster 40C?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,344 lb lb for the New Holland Workmaster 40C.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the New Holland Workmaster 40C?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,596 lb lb for the New Holland Workmaster 40C.
