LS Tractor XJ2025H vs New Holland Boomer 24

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the LS Tractor XJ2025H leads 4 categories to 2 (3 tied). Machine pages: LS Tractor XJ2025H and New Holland Boomer 24.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor XJ2025H	New Holland Boomer 24
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	18.5 hp	18.5 hp
Weight (lb)	1,609 lb	▲ 1,832 lb
Loader Lift (lb)	▲ 1,276 lb	1,034 lb
3-Pt Lift (24 in) (lb)	1,058 lb	1,058 lb
Lift Height (in)	▲ 85.7 in	80.7 in
Breakout Force (lbf)	▲ 1,687 lbf	1,672 lbf
Hydraulic Flow (gpm)	8.5 gpm	▲ 9.6 gpm
Travel Speed (mph)	▲ 11.5 mph	11.3 mph

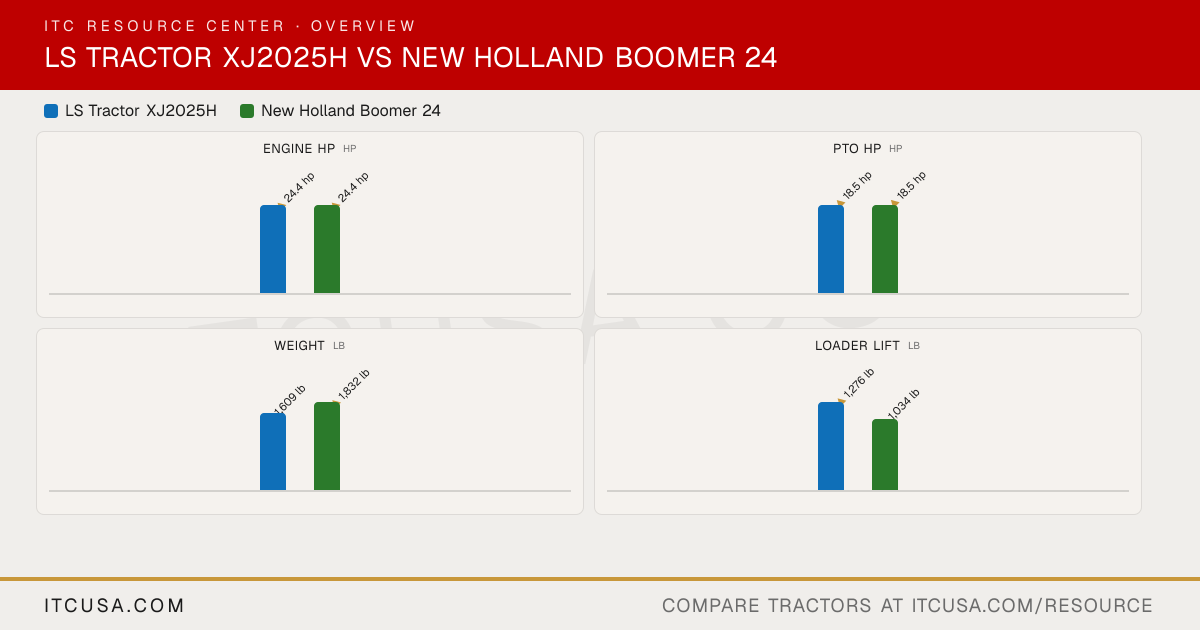

The headline numbers at a glance.

LS Tractor XJ2025HNew Holland Boomer 24

Engine HPhp

▲24.4 hp

PTO HPhp

▲18.5 hp

Weightlb

1,609 lb

▲1,832 lb

Loader Liftlb

▲1,276 lb

1,034 lb

3-Pt Lift (24 in)lb

▲1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorXJ2025H	New HollandBoomer 24


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	S3L2	S3L2
Engine Type	3-cylinder, indirect injection, water-cooled	3-cylinder diesel
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2700 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	18.5 hp	18.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Single replaceable dry element
Fuel System	Indirect injection	Not Published
Alternator	50 A, 12 V	50 A

Pump Type	Transmission driven	Not Published
Implement Flow	5.9 gpm	6.7 gpm
Steering Flow	2.6 gpm	2.9 gpm
Total Hydraulic Flow	8.5 gpm	9.6 gpm (6.7 + 2.9, computed)
Overall Hydraulic Pump Flow	8.5 gpm	9.6 gpm (6.7 + 2.9, computed)
Hydraulic System Type	Open center system, position control	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1 pair (2 quick couplers, optional)	1 (DIA, optional)

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	1.0 gal	Not Published
Crankcase Capacity	1.1 gal	Not Published
Transmission / Hydraulic System Capacity	5.3 gal	Not Published
Front Axle Fluid Capacity	0.8 gal	Not Published

PTO Type	Independent (electro-hydraulic)	Independent, electro-hydraulic engagement
PTO Rear	Standard (540 rpm)	540 rpm
Mid-PTO Availability	Standard (2,000 rpm)	Standard, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	1,433 lb
Hitch Lift Capacity (at 24”)	1,058 lb	1,058 lb
Lift Control Type	Manual position control	Chain-type stabilizers, fixed link ends

Transmission Type	Hydrostatic Drive	2-range hydrostatic (HST), dual pedal
No. of Speeds	2 ranges	HST, 2 ranges
Max Travel Speed (Forward)	11.5 mph	11.3 mph (HST, R4 tires)
Max Travel Speed (Reverse)	7.2 mph	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical rear differential lock (foot pedal)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Mechanical wet multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Front wheel mechanical assist (4WD)	Four-wheel drive (standard)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed	Not Published

Overall Length with 3-Point Hitch	103 in	103.6 in
Overall Width	44.9 in	49.1 in
Wheelbase	59 in	59 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	8.2 ft (with brake applied)	Not Published
Height to Top of ROPS	92.3 in	85.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,609 lb	1,832 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R3 turf tread or R4 industrial tread
R1 Agricultural - Front	23X10.50-12	Not Published
R1 Agricultural - Rear	255/75-15.3	Not Published
R3 Turf - Front	23x8.50-12	23x8.50-12
R3 Turf - Rear	33x12.5-16.5	33x12-16.5
R4 Industrial - Front	23x8.50-12	23x8.50-12
R4 Industrial - Rear	33x12-16.5	12-16.5

Quick Attach Loader System	LL2102: Quick-attach front end loader	Not Published
Loader Model	LL2102	235TL
Loader Lift Height	LL2102: 85.7 in (at pivot pin)	235TL: 80.7 in
Loader Lift Capacity (Full Height)	LL2102: 1,276 lb (at pivot pin, full height)	235TL: 1,034 lb
Loader Breakout Force	LL2102: 1,687 lb (at pivot pin)	235TL: 1,672 lb

Warranty Length & Coverage	6-year limited warranty	Boomer Guard 5 Limited Warranty: 5 years (2 years bumper-to-bumper plus 3 years powertrain)

Find a LS Tractor dealer near you Find a New Holland dealer near you

LS Tractor XJ2025H vs New Holland Boomer 24: Quick Answers

Which has more horsepower, the LS Tractor XJ2025H or the New Holland Boomer 24?: They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.
Which has more PTO horsepower, the LS Tractor XJ2025H or the New Holland Boomer 24?: They are effectively tied: both machines are rated at 18.5 hp hp for pto hp.
Which is heavier, the LS Tractor XJ2025H or the New Holland Boomer 24?: The New Holland Boomer 24 leads on weight at 1,832 lb lb, compared to 1,609 lb lb for the LS Tractor XJ2025H.
Which has more loader lift capacity, the LS Tractor XJ2025H or the New Holland Boomer 24?: The LS Tractor XJ2025H leads on loader lift at 1,276 lb lb, compared to 1,034 lb lb for the New Holland Boomer 24.
Which has more three-point hitch lift capacity, the LS Tractor XJ2025H or the New Holland Boomer 24?: They are effectively tied: both machines are rated at 1,058 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	LS Tractor XJ2025H	New Holland Boomer 24
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	18.5 hp	18.5 hp
Weight (lb)	1,609 lb	▲ 1,832 lb
Loader Lift (lb)	▲ 1,276 lb	1,034 lb
3-Pt Lift (24 in) (lb)	1,058 lb	1,058 lb
Lift Height (in)	▲ 85.7 in	80.7 in
Breakout Force (lbf)	▲ 1,687 lbf	1,672 lbf
Hydraulic Flow (gpm)	8.5 gpm	▲ 9.6 gpm
Travel Speed (mph)	▲ 11.5 mph	11.3 mph

The headline numbers at a glance.

LS Tractor XJ2025HNew Holland Boomer 24

Engine HPhp

▲24.4 hp

PTO HPhp

▲18.5 hp

Weightlb

1,609 lb

▲1,832 lb

Loader Liftlb

▲1,276 lb

1,034 lb

3-Pt Lift (24 in)lb

▲1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorXJ2025H	New HollandBoomer 24


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	S3L2	S3L2
Engine Type	3-cylinder, indirect injection, water-cooled	3-cylinder diesel
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2700 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	18.5 hp	18.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Single replaceable dry element
Fuel System	Indirect injection	Not Published
Alternator	50 A, 12 V	50 A

Pump Type	Transmission driven	Not Published
Implement Flow	5.9 gpm	6.7 gpm
Steering Flow	2.6 gpm	2.9 gpm
Total Hydraulic Flow	8.5 gpm	9.6 gpm (6.7 + 2.9, computed)
Overall Hydraulic Pump Flow	8.5 gpm	9.6 gpm (6.7 + 2.9, computed)
Hydraulic System Type	Open center system, position control	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1 pair (2 quick couplers, optional)	1 (DIA, optional)

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	1.0 gal	Not Published
Crankcase Capacity	1.1 gal	Not Published
Transmission / Hydraulic System Capacity	5.3 gal	Not Published
Front Axle Fluid Capacity	0.8 gal	Not Published

PTO Type	Independent (electro-hydraulic)	Independent, electro-hydraulic engagement
PTO Rear	Standard (540 rpm)	540 rpm
Mid-PTO Availability	Standard (2,000 rpm)	Standard, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	1,433 lb
Hitch Lift Capacity (at 24”)	1,058 lb	1,058 lb
Lift Control Type	Manual position control	Chain-type stabilizers, fixed link ends

Transmission Type	Hydrostatic Drive	2-range hydrostatic (HST), dual pedal
No. of Speeds	2 ranges	HST, 2 ranges
Max Travel Speed (Forward)	11.5 mph	11.3 mph (HST, R4 tires)
Max Travel Speed (Reverse)	7.2 mph	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical rear differential lock (foot pedal)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Mechanical wet multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Front wheel mechanical assist (4WD)	Four-wheel drive (standard)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed	Not Published

Overall Length with 3-Point Hitch	103 in	103.6 in
Overall Width	44.9 in	49.1 in
Wheelbase	59 in	59 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	8.2 ft (with brake applied)	Not Published
Height to Top of ROPS	92.3 in	85.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,609 lb	1,832 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R3 turf tread or R4 industrial tread
R1 Agricultural - Front	23X10.50-12	Not Published
R1 Agricultural - Rear	255/75-15.3	Not Published
R3 Turf - Front	23x8.50-12	23x8.50-12
R3 Turf - Rear	33x12.5-16.5	33x12-16.5
R4 Industrial - Front	23x8.50-12	23x8.50-12
R4 Industrial - Rear	33x12-16.5	12-16.5

Quick Attach Loader System	LL2102: Quick-attach front end loader	Not Published
Loader Model	LL2102	235TL
Loader Lift Height	LL2102: 85.7 in (at pivot pin)	235TL: 80.7 in
Loader Lift Capacity (Full Height)	LL2102: 1,276 lb (at pivot pin, full height)	235TL: 1,034 lb
Loader Breakout Force	LL2102: 1,687 lb (at pivot pin)	235TL: 1,672 lb

Warranty Length & Coverage	6-year limited warranty	Boomer Guard 5 Limited Warranty: 5 years (2 years bumper-to-bumper plus 3 years powertrain)

Find a LS Tractor dealer near you Find a New Holland dealer near you

LS Tractor XJ2025H vs New Holland Boomer 24: Quick Answers

Which has more horsepower, the LS Tractor XJ2025H or the New Holland Boomer 24?

They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.

Which has more PTO horsepower, the LS Tractor XJ2025H or the New Holland Boomer 24?

They are effectively tied: both machines are rated at 18.5 hp hp for pto hp.

Which is heavier, the LS Tractor XJ2025H or the New Holland Boomer 24?

The New Holland Boomer 24 leads on weight at 1,832 lb lb, compared to 1,609 lb lb for the LS Tractor XJ2025H.

Which has more loader lift capacity, the LS Tractor XJ2025H or the New Holland Boomer 24?

The LS Tractor XJ2025H leads on loader lift at 1,276 lb lb, compared to 1,034 lb lb for the New Holland Boomer 24.

Which has more three-point hitch lift capacity, the LS Tractor XJ2025H or the New Holland Boomer 24?

They are effectively tied: both machines are rated at 1,058 lb lb for 3-pt lift (24 in).
