Which has more horsepower, the LS Tractor XJ2025H or the New Holland Workmaster 25S?

They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.

Which has more PTO horsepower, the LS Tractor XJ2025H or the New Holland Workmaster 25S?

The LS Tractor XJ2025H leads on pto hp at 18.5 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.

Which has more loader lift capacity, the LS Tractor XJ2025H or the New Holland Workmaster 25S?

The LS Tractor XJ2025H leads on loader lift at 1,276 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.

Which has more three-point hitch lift capacity, the LS Tractor XJ2025H or the New Holland Workmaster 25S?

The LS Tractor XJ2025H leads on 3-pt lift (24 in) at 1,058 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.

LS Tractor XJ2025H vs New Holland Workmaster 25S

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the LS Tractor XJ2025H leads 5 categories to 1 (1 tied). Machine pages: LS Tractor XJ2025H and New Holland Workmaster 25S.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	LS Tractor XJ2025H	New Holland Workmaster 25S
Engine HP (hp)	24.7 hp	24.7 hp
PTO HP (hp)	▲ 18.5 hp	17.2 hp
Weight (lb)	—	1,444 lb
Loader Lift (lb)	▲ 1,276 lb	1,005 lb
3-Pt Lift (24 in) (lb)	▲ 1,058 lb	728 lb
Lift Height (in)	▲ 85.7 in	72 in
Breakout Force (lbf)	1,687 lbf	▲ 2,078 lbf
Hydraulic Flow (gpm)	▲ 8.5 gpm	6.7 gpm
Travel Speed (mph)	—	9.1 mph

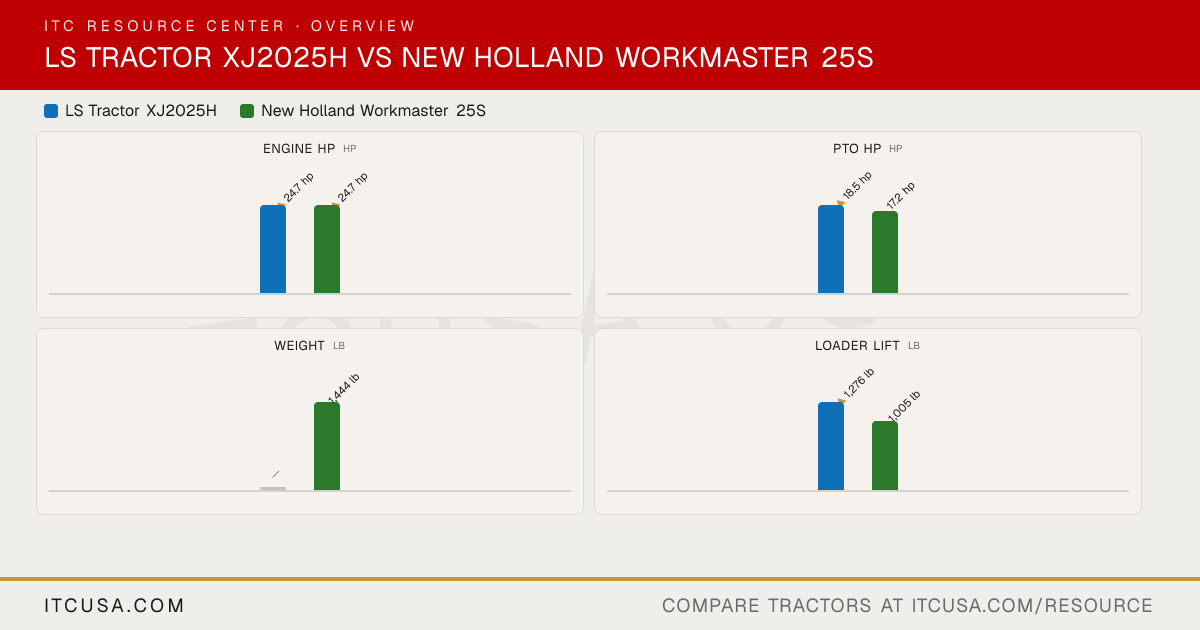

The headline numbers at a glance.

LS Tractor XJ2025HNew Holland Workmaster 25S

Engine HPhp

▲24.7 hp

PTO HPhp

▲18.5 hp

17.2 hp

Weightlb

—

1,444 lb

Loader Liftlb

▲1,276 lb

1,005 lb

3-Pt Lift (24 in)lb

▲1,058 lb

728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	LS TractorXJ2025H	New HollandWorkmaster 25S


PTO Power	18.5 hp	17.2 hp
Alternator	50 A, 12 V	40 A, 12 V
Air Cleaner	Dry	Not Published
Engine Type	3-cylinder, Indirect-injection (swirl chamber), Water-cooled	3-cylinder, naturally aspirated diesel
Fuel System	Indirect injection (in-line pump)	In-line injection pump
Displacement	80.4 in³	76.9 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	3000 rpm
Cooling System Type	Water-cooled	Pressurized liquid with recirculating bypass
Engine Manufacturer	Mitsubishi	Yanmar
Engine Power (Gross)	24.7 hp	24.7 hp
Engine Emissions Constraints	Tier 4	Tier 4B Final

Weight with ROPS and Loader	Not Published	1,444 lb (ROPS tractor only)
Weight with Cab and Loader	Not Published	1,805 lb (Cab tractor only)

Warranty Length & Coverage	6-year limited powertrain warranty; 2-year bumper-to-bumper warranty	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Transmission drive pump	Gear
Steering Flow	2.6 gpm	2.1 gpm
Implement Flow	5.9 gpm	4.6 gpm
Total Hydraulic Flow	8.5 gpm	6.7 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	8.5 gpm	6.7 gpm
No. of Optional Remote Valves	1 pair (2 outlets; optional)	1
No. of Standard Remote Valves	Not Published	0

PTO Rear	540 rpm	540 rpm
PTO Type	Electro-hydraulic rear PTO / mid-PTO	Independent, electro-hydraulic engagement
Lift Control Type	Position control	Lift-hold-lower
Hitch Lift Capacity	1,433 lb	992 lb at ball ends
Mid-PTO Availability	Standard (2000 rpm)	Standard (2,500 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1,058 lb	728 lb

R3 Turf - Rear	320/65-16.5	26X12.0-12
R3 Turf - Front	23X8.50-12	18X8.50-10
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R3 Turf, R4 Industrial
R4 Industrial - Rear	305/70-16.5 (6PR)	26X12.0-12
R4 Industrial - Front	23X8.50-12 (4PR)	18X8.50-10
R1 Agricultural - Rear	255/75-15.3	Not Applicable
R1 Agricultural - Front	23X10.50-12	Not Applicable

Coolant Capacity	1.0 gal	3.5 qt
Crankcase Capacity	1.1 gal	3.0 qt
Fuel Tank Capacity	6.6 gal	6.6 gal
Front Axle Fluid Capacity	0.8 gal	0.5 gal
Transmission / Hydraulic System Capacity	5.3 gal	3.0 gal

Loader Lift Height	85.7 in	72 in
Loader Breakout Force	1,687 lb	2,078 lb
Quick Attach Loader System	LL2102: Quick-attach front end loader	100LC: Quick Mount system (no tools)
Loader Lift Capacity (Full Height)	1,276 lb	1,005 lb

Clutch	Not Applicable	Not Applicable
No. of Speeds	2 ranges	Infinite (2-range)
Transmission Type	Hydrostatic Drive	2-Range Hydrostatic / Dual Pedal
Max Travel Speed (Forward)	Not Published	9.1 mph
Max Travel Speed (Reverse)	Not Published	5.5 mph
Differential Lock & Limited Slip Options	Mechanical differential lock (pedal)	Mechanical, foot-operated rear diff lock

Brakes	Wet, multi-disc	Wet, multi-disc
Steering	Hydrostatic power steering	Central support, bevel gear type
Frame Type	Not Published	Not Published
Front Axle Type	Front wheel mechanical assist (4WD)	4WD (FWD)
Drawbar Capacity	Horizontal load: 3,527 lb; Vertical load: 551 lb pulled / 882 lb pushed	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	59 in	56.1 in
Overall Width	44.9 in	46.7 in
Ground Clearance	Not Published	12 in
Height to Top of ROPS	84.5 in	90 in
Height to Top of Cab Model	Not Published	87.4 in
Height to Top of ROPS (folded)	Not Published	64 in
Min. Turn Radius without Brakes	Not Published	94 in
Overall Length with 3-Point Hitch	103 in	97.4 in

LS Tractor XJ2025H vs New Holland Workmaster 25S: Quick Answers

Which has more horsepower, the LS Tractor XJ2025H or the New Holland Workmaster 25S?: They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.
Which has more PTO horsepower, the LS Tractor XJ2025H or the New Holland Workmaster 25S?: The LS Tractor XJ2025H leads on pto hp at 18.5 hp hp, compared to 17.2 hp hp for the New Holland Workmaster 25S.
Which has more loader lift capacity, the LS Tractor XJ2025H or the New Holland Workmaster 25S?: The LS Tractor XJ2025H leads on loader lift at 1,276 lb lb, compared to 1,005 lb lb for the New Holland Workmaster 25S.
Which has more three-point hitch lift capacity, the LS Tractor XJ2025H or the New Holland Workmaster 25S?: The LS Tractor XJ2025H leads on 3-pt lift (24 in) at 1,058 lb lb, compared to 728 lb lb for the New Holland Workmaster 25S.
