Mahindra 1120 vs Mahindra eMax 20S HST Cab

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra 1120 leads 5 categories to 3. Machine pages: Mahindra 1120 and Mahindra eMax 20S HST Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 1120	Mahindra eMax 20S HST Cab
Engine HP (hp)	▲ 20.1 hp	19.4 hp
PTO HP (hp)	13.9 hp	▲ 14.2 hp
Weight (lb)	1,620 lb	▲ 1,800 lb
Loader Lift (lb)	▲ 794 lb	617 lb
3-Pt Lift (24 in) (lb)	▲ 771 lb	680 lb
Lift Height (in)	68 in	▲ 71.3 in
Breakout Force (lbf)	▲ 1,433 lbf	1,235 lbf
Hydraulic Flow (gpm)	▲ 11.2 gpm	6.2 gpm
Travel Speed (mph)	7.3 mph	n/a

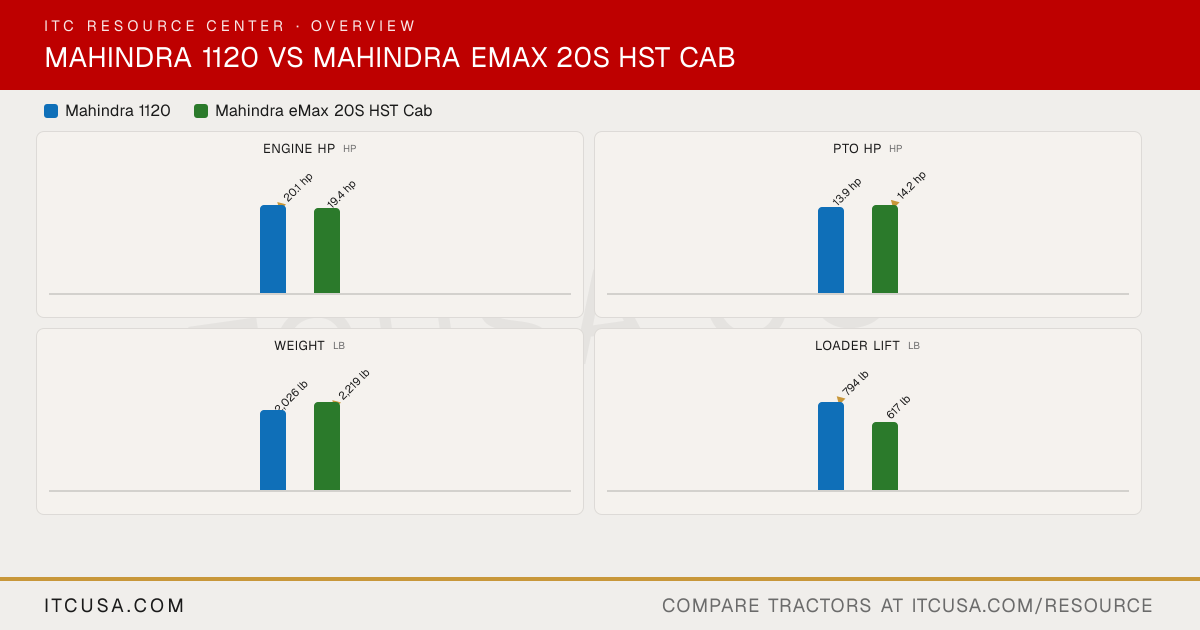

The headline numbers at a glance.

Mahindra 1120Mahindra eMax 20S HST Cab

Engine HPhp

▲20.1 hp

19.4 hp

PTO HPhp

13.9 hp

▲14.2 hp

Weightlb

1,620 lb

▲1,800 lb

Loader Liftlb

▲794 lb

617 lb

3-Pt Lift (24 in)lb

▲771 lb

680 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1120	MahindraeMax 20S HST Cab


Engine Manufacturer	Mitsubishi	Yanmar
Engine Model	MVL3E3	3TNV74F
Engine Type	Four Stroke, Naturally Aspirated, Indirect Injection, Water-Cooled Diesel	Naturally aspirated, indirect injection, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	67.2 in³	60.6 in³
Rated Engine Speed	2900 rpm	3000 rpm
Engine Power (Gross)	20.1 hp	19.4 hp
PTO Power	13.9 hp	14.2 hp
Engine Emissions Constraints	No DPF	Tier 4
Cooling System Type	Water-Cooled	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect Injection	Indirect Injection
Alternator	55 A, 12 V	45 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	7.6 gpm	4.1 gpm
Steering Flow	3.8 gpm	2.11 gpm
Total Hydraulic Flow	11.2 gpm	6.2 gpm
Overall Hydraulic Pump Flow	11.2 gpm	6.2 gpm
Hydraulic System Type	Open Center, full-live hydraulic with position control	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Single or dual	1

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent Wet Clutch	Independent
PTO Rear	540 rpm @ 2837 rpm	540 @ 2942 rpm
Mid-PTO Availability	Optional; 2500 rpm @ 2837 rpm	Available; 2500 @ 2958 rpm
Category, 3-Point Hitch	CAT I with check chains	CAT I Narrow with Check Chains
Hitch Lift Capacity	Not Published	680 lb
Hitch Lift Capacity (at 24”)	771 lb	Not Published
Lift Control Type	Position Control	Position

Transmission Type	HST - 2 Range	HST - 2 range
No. of Speeds	Infinite	Infinite
Max Travel Speed (Forward)	7.3 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Dry-Single
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Power steering
Brakes	Single Pedal	Wet Disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	46.3 in	44.5 in
Wheelbase	55.1 in	53.1 in
Ground Clearance	6.7 in	8.3 in
Min. Turn Radius without Brakes	7.2 ft (with brake applied)	7.2 ft
Height to Top of ROPS	86.6 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	79.6 in
Overall Length	100.4 in	94.2 in

Tractor Weight (Base)	1,620 lb (operating weight)	1,800 lb
Weight with ROPS and Loader	2,026 lb (1,620 operating weight + 406 loader shipping weight, computed)	Not Published
Weight with Cab and Loader	Not Published	2,219 lb (1,800 + 419, computed; 6.1 gal loader shipping weight)

Tire Size & Options	Turf, Industrial	Agricultural, Industrial, Turf
R1 Agricultural - Front	Not Published	18x8.5-10
R1 Agricultural - Rear	Not Published	26x12-12
R3 Turf - Front	18x8.5-10	18x8.5-10
R3 Turf - Rear	26x12-12	26x12-12
R4 Industrial - Front	18x8.5-10	18x8.5-10
R4 Industrial - Rear	26x12-12	26x12-12

Quick Attach Loader System	L11: Front loader skid-steer couplers for superfast hookups	23L: Skid steer style quick coupler, standard
Loader Model	L11	23L
Loader Lift Height	L11: 68 in	71.3 in
Loader Lift Capacity (Full Height)	L11: 794 lb (at pivot pin)	617 lb (at pivot pin)
Loader Breakout Force	L11: 1,433 lb	1,235 lb (at pivot pin, ground level)

Warranty Length & Coverage	7-Year Limited Powertrain Warranty	Two Year All Aggregate (bumper to bumper) Warranty and Five-Year Limited Powertrain Warranty

Find a Mahindra dealer near you

Mahindra 1120 vs Mahindra eMax 20S HST Cab: Quick Answers

Which has more horsepower, the Mahindra 1120 or the Mahindra eMax 20S HST Cab?: The Mahindra 1120 leads on engine hp at 20.1 hp hp, compared to 19.4 hp hp for the Mahindra eMax 20S HST Cab.
Which has more PTO horsepower, the Mahindra 1120 or the Mahindra eMax 20S HST Cab?: The Mahindra eMax 20S HST Cab leads on pto hp at 14.2 hp hp, compared to 13.9 hp hp for the Mahindra 1120.
Which is heavier, the Mahindra 1120 or the Mahindra eMax 20S HST Cab?: The Mahindra eMax 20S HST Cab leads on weight at 1,800 lb lb, compared to 1,620 lb lb for the Mahindra 1120.
Which has more loader lift capacity, the Mahindra 1120 or the Mahindra eMax 20S HST Cab?: The Mahindra 1120 leads on loader lift at 794 lb lb, compared to 617 lb lb for the Mahindra eMax 20S HST Cab.
Which has more three-point hitch lift capacity, the Mahindra 1120 or the Mahindra eMax 20S HST Cab?: The Mahindra 1120 leads on 3-pt lift (24 in) at 771 lb lb, compared to 680 lb lb for the Mahindra eMax 20S HST Cab.

More Head-to-Heads

Category Verdict

Spec	Mahindra 1120	Mahindra eMax 20S HST Cab
Engine HP (hp)	▲ 20.1 hp	19.4 hp
PTO HP (hp)	13.9 hp	▲ 14.2 hp
Weight (lb)	1,620 lb	▲ 1,800 lb
Loader Lift (lb)	▲ 794 lb	617 lb
3-Pt Lift (24 in) (lb)	▲ 771 lb	680 lb
Lift Height (in)	68 in	▲ 71.3 in
Breakout Force (lbf)	▲ 1,433 lbf	1,235 lbf
Hydraulic Flow (gpm)	▲ 11.2 gpm	6.2 gpm
Travel Speed (mph)	7.3 mph	n/a

The headline numbers at a glance.

Mahindra 1120Mahindra eMax 20S HST Cab

Engine HPhp

▲20.1 hp

19.4 hp

PTO HPhp

13.9 hp

▲14.2 hp

Weightlb

1,620 lb

▲1,800 lb

Loader Liftlb

▲794 lb

617 lb

3-Pt Lift (24 in)lb

▲771 lb

680 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1120	MahindraeMax 20S HST Cab


Engine Manufacturer	Mitsubishi	Yanmar
Engine Model	MVL3E3	3TNV74F
Engine Type	Four Stroke, Naturally Aspirated, Indirect Injection, Water-Cooled Diesel	Naturally aspirated, indirect injection, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	67.2 in³	60.6 in³
Rated Engine Speed	2900 rpm	3000 rpm
Engine Power (Gross)	20.1 hp	19.4 hp
PTO Power	13.9 hp	14.2 hp
Engine Emissions Constraints	No DPF	Tier 4
Cooling System Type	Water-Cooled	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Indirect Injection	Indirect Injection
Alternator	55 A, 12 V	45 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	7.6 gpm	4.1 gpm
Steering Flow	3.8 gpm	2.11 gpm
Total Hydraulic Flow	11.2 gpm	6.2 gpm
Overall Hydraulic Pump Flow	11.2 gpm	6.2 gpm
Hydraulic System Type	Open Center, full-live hydraulic with position control	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Single or dual	1

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent Wet Clutch	Independent
PTO Rear	540 rpm @ 2837 rpm	540 @ 2942 rpm
Mid-PTO Availability	Optional; 2500 rpm @ 2837 rpm	Available; 2500 @ 2958 rpm
Category, 3-Point Hitch	CAT I with check chains	CAT I Narrow with Check Chains
Hitch Lift Capacity	Not Published	680 lb
Hitch Lift Capacity (at 24”)	771 lb	Not Published
Lift Control Type	Position Control	Position

Transmission Type	HST - 2 Range	HST - 2 range
No. of Speeds	Infinite	Infinite
Max Travel Speed (Forward)	7.3 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Dry-Single
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic Power Steering	Power steering
Brakes	Single Pedal	Wet Disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	46.3 in	44.5 in
Wheelbase	55.1 in	53.1 in
Ground Clearance	6.7 in	8.3 in
Min. Turn Radius without Brakes	7.2 ft (with brake applied)	7.2 ft
Height to Top of ROPS	86.6 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	79.6 in
Overall Length	100.4 in	94.2 in

Tractor Weight (Base)	1,620 lb (operating weight)	1,800 lb
Weight with ROPS and Loader	2,026 lb (1,620 operating weight + 406 loader shipping weight, computed)	Not Published
Weight with Cab and Loader	Not Published	2,219 lb (1,800 + 419, computed; 6.1 gal loader shipping weight)

Tire Size & Options	Turf, Industrial	Agricultural, Industrial, Turf
R1 Agricultural - Front	Not Published	18x8.5-10
R1 Agricultural - Rear	Not Published	26x12-12
R3 Turf - Front	18x8.5-10	18x8.5-10
R3 Turf - Rear	26x12-12	26x12-12
R4 Industrial - Front	18x8.5-10	18x8.5-10
R4 Industrial - Rear	26x12-12	26x12-12

Quick Attach Loader System	L11: Front loader skid-steer couplers for superfast hookups	23L: Skid steer style quick coupler, standard
Loader Model	L11	23L
Loader Lift Height	L11: 68 in	71.3 in
Loader Lift Capacity (Full Height)	L11: 794 lb (at pivot pin)	617 lb (at pivot pin)
Loader Breakout Force	L11: 1,433 lb	1,235 lb (at pivot pin, ground level)

Warranty Length & Coverage	7-Year Limited Powertrain Warranty	Two Year All Aggregate (bumper to bumper) Warranty and Five-Year Limited Powertrain Warranty

Find a Mahindra dealer near you

Mahindra 1120 vs Mahindra eMax 20S HST Cab: Quick Answers

Which has more horsepower, the Mahindra 1120 or the Mahindra eMax 20S HST Cab?

The Mahindra 1120 leads on engine hp at 20.1 hp hp, compared to 19.4 hp hp for the Mahindra eMax 20S HST Cab.

Which has more PTO horsepower, the Mahindra 1120 or the Mahindra eMax 20S HST Cab?

The Mahindra eMax 20S HST Cab leads on pto hp at 14.2 hp hp, compared to 13.9 hp hp for the Mahindra 1120.

Which is heavier, the Mahindra 1120 or the Mahindra eMax 20S HST Cab?

The Mahindra eMax 20S HST Cab leads on weight at 1,800 lb lb, compared to 1,620 lb lb for the Mahindra 1120.

Which has more loader lift capacity, the Mahindra 1120 or the Mahindra eMax 20S HST Cab?

The Mahindra 1120 leads on loader lift at 794 lb lb, compared to 617 lb lb for the Mahindra eMax 20S HST Cab.

Which has more three-point hitch lift capacity, the Mahindra 1120 or the Mahindra eMax 20S HST Cab?

The Mahindra 1120 leads on 3-pt lift (24 in) at 771 lb lb, compared to 680 lb lb for the Mahindra eMax 20S HST Cab.
