Bad Boy Tractors 4025 vs Mahindra eMax 20S HST Cab

Across 7 measurable specs, the Bad Boy Tractors 4025 leads 7 categories to 0. Machine pages: Bad Boy Tractors 4025 and Mahindra eMax 20S HST Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

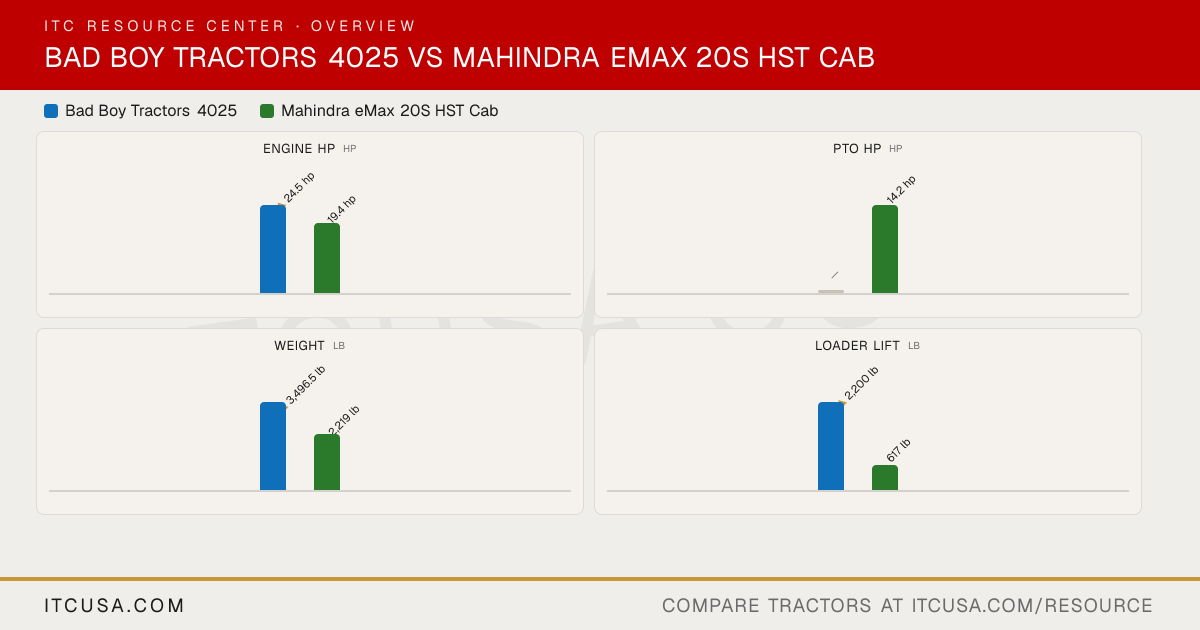

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	MahindraeMax 20S HST Cab

▶Engine
PTO Power	540 rpm, 1st stage	14.2 hp
Alternator	50 A, 12 V	45 A, 12 V
Air Cleaner	Present (standard equipment)	Not Published
Engine Type	Vertical, water cooled 4-cycle, diesel engine	Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine
Fuel System	Diesel fuel system with fuel injection pump	Indirect Injection
Displacement	104.6 in³	60.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	3000 rpm
Cooling System Type	Pressurized Radiator	Water-cooled
Engine Manufacturer	A1700N6, A1700N5, A1700N4	Yanmar
Engine Power (Gross)	24.5 hp	19.4 hp
Engine Emissions Constraints	Not Published	Complies with US TIER-4 Final Norms
▶Weight
Tractor Weight (Base)	3,496.5 lb (3,497 lbs), 3,728 lb (3,728 lbs)	—
Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	2219 lb
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	7-Year Limited Powertrain Warranty
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Not Published
Steering Flow	4.0 gpm	2.1 gpm
Implement Flow	7.5 gpm	4.1 gpm
Total Hydraulic Flow	11.5 gpm (4.0 + 7.5)	6.2 gpm
Hydraulic System Type	Not Published	Open Center
System Operating Pressure	463 lbf/cm² maximum	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	11.5 gpm	6.2 gpm
No. of Optional Remote Valves	Optional (Up to 2)	Not Published
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 rpm	540 @ 2942 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control type	Position Control
Hitch Lift Capacity	2,425 lb @ 24 in behind lift point	Not Published
Mid-PTO Availability	Not Published	Available; 2500 @ 2958 rpm
Category, 3-Point Hitch	Category 1	CAT I Narrow with Check Chains
Hitch Lift Capacity (at 24”)	2,425 lb @ 24 in behind lift point	680 lb
▶Tire Options
R3 Turf - Rear	Not Published	26X12-12
R3 Turf - Front	Not Published	18X8.5-10
Tire Size & Options	OEM website lists IND tires 25X8.50-14 / 15-19.5; Operator Manual spec based on 8.0-16 / 12.4-24	R1 Agriculture, R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5	26X12-12
R4 Industrial - Front	25X8.50-14	18X8.5-10
R1 Agricultural - Rear	12.4-24 6PR	26X12-12
R1 Agricultural - Front	8.0-16 4PR	18X8.5-10
▶Fluid Capacity
Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	Not Published
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	Not Published
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	6.6 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	HST: 9.77 gal	Not Published
▶Loader & Attachments
Loader Lift Height	104 in	71.3 in
Loader Breakout Force	3,660 lb	1235 lb
Quick Attach Loader System	SSQA	6.1 gal: Standard skid-steer style loader couplers (Quick Attach Couplers) for fast, easy front-implement connection.
Loader Lift Capacity (Full Height)	2,200 lb (pivot pin)	617 lb (at pivot pin)
▶Transmission & Drivetrain
Clutch	None (HST)	Dry-Single
No. of Speeds	3 Range	Infinite / 2 ranges
Transmission Type	HST (Hydrostatic Transmission) with shuttle type	HST
Max Travel Speed (Forward)	Not Published	7.8 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published
▶Chassis, Steering & Controls
Brakes	Wet, Multi-Disc	Wet Disc
Steering	Hydrostatic power steering	Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	65.8 in (65.79 in.)	53.1 in
Overall Width	57.1 in (57.13 in.) [ROPS Model], 55.6 in (55.63 in.) [Cabin Model]	44.5 in
Overall Length	134.9 in (134.88 in.)	—
Ground Clearance	13.2 in (13.19 in.) [ROPS Model], 13.5 in (13.50 in.) [Cabin Model]	8.3 in
Height to Top of ROPS	104.1 in (104.06 in.) [ROPS Model], 88.9 in (88.9 in.) [Cabin Model]	Not Applicable
Height to Top of Cab Model	Not Published	79.6 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	94.2 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Bad Boy Tractors 4025 vs Mahindra eMax 20S HST Cab: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the Mahindra eMax 20S HST Cab?

The Bad Boy Tractors 4025 leads on engine hp at 24.5 hp hp, compared to 19.4 hp hp for the Mahindra eMax 20S HST Cab.

Which is heavier, the Bad Boy Tractors 4025 or the Mahindra eMax 20S HST Cab?

The Bad Boy Tractors 4025 leads on weight at 3,496.5 lb lb, compared to 2,219 lb lb for the Mahindra eMax 20S HST Cab.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the Mahindra eMax 20S HST Cab?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 617 lb lb for the Mahindra eMax 20S HST Cab.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Mahindra eMax 20S HST Cab?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 680 lb lb for the Mahindra eMax 20S HST Cab.
