Which has more horsepower, the Mahindra 1123 or the Mahindra eMax 20S HST Cab?

The Mahindra 1123 leads on engine hp at 22.9 hp hp, compared to 19.4 hp hp for the Mahindra eMax 20S HST Cab.

Which has more PTO horsepower, the Mahindra 1123 or the Mahindra eMax 20S HST Cab?

The Mahindra 1123 leads on pto hp at 16.8 hp hp, compared to 14.2 hp hp for the Mahindra eMax 20S HST Cab.

Which is heavier, the Mahindra 1123 or the Mahindra eMax 20S HST Cab?

The Mahindra eMax 20S HST Cab leads on weight at 2,219 lb lb, compared to 2,026 lb lb for the Mahindra 1123.

Which has more loader lift capacity, the Mahindra 1123 or the Mahindra eMax 20S HST Cab?

The Mahindra 1123 leads on loader lift at 794 lb lb, compared to 617 lb lb for the Mahindra eMax 20S HST Cab.

Which has more three-point hitch lift capacity, the Mahindra 1123 or the Mahindra eMax 20S HST Cab?

The Mahindra 1123 leads on 3-pt lift (24 in) at 771 lb lb, compared to 680 lb lb for the Mahindra eMax 20S HST Cab.

Mahindra 1123 vs Mahindra eMax 20S HST Cab

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Mahindra 1123 leads 6 categories to 3. Machine pages: Mahindra 1123 and Mahindra eMax 20S HST Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 1123	Mahindra eMax 20S HST Cab
Engine HP (hp)	▲ 22.9 hp	19.4 hp
PTO HP (hp)	▲ 16.8 hp	14.2 hp
Weight (lb)	2,026 lb	▲ 2,219 lb
Loader Lift (lb)	▲ 794 lb	617 lb
3-Pt Lift (24 in) (lb)	▲ 771 lb	680 lb
Lift Height (in)	68 in	▲ 71.3 in
Breakout Force (lbf)	▲ 1,433 lbf	1,235 lbf
Hydraulic Flow (gpm)	▲ 11.4 gpm	6.2 gpm
Travel Speed (mph)	7.3 mph	▲ 7.8 mph

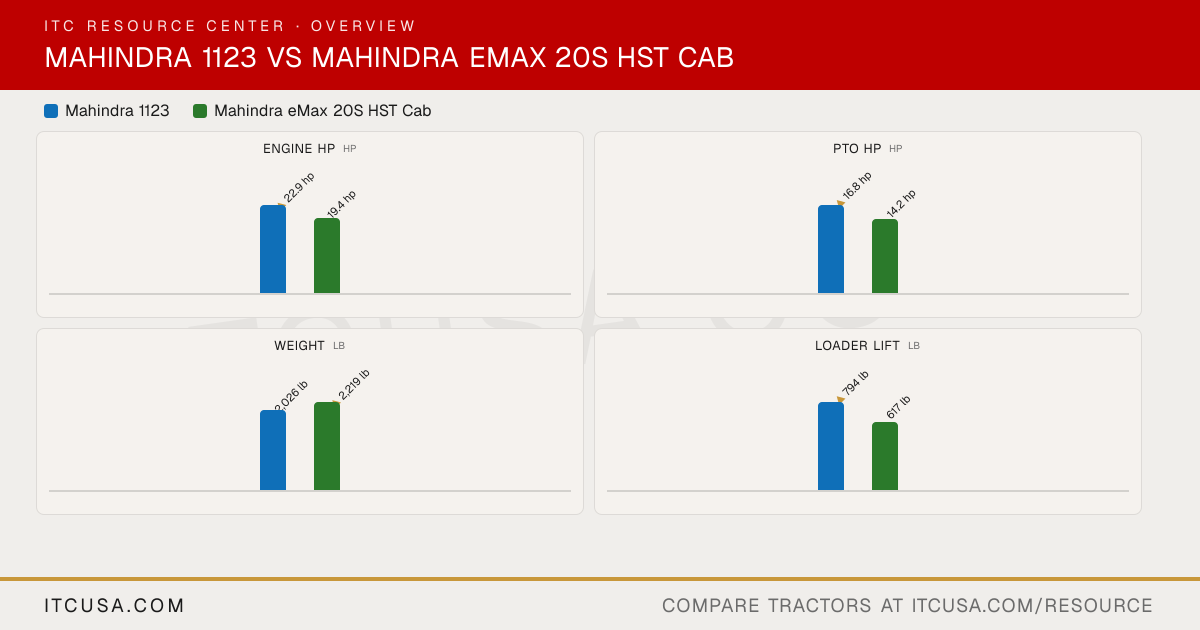

The headline numbers at a glance.

Mahindra 1123Mahindra eMax 20S HST Cab

Engine HPhp

▲22.9 hp

19.4 hp

PTO HPhp

▲16.8 hp

14.2 hp

Weightlb

2,026 lb

▲2,219 lb

Loader Liftlb

▲794 lb

617 lb

3-Pt Lift (24 in)lb

▲771 lb

680 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1123	MahindraeMax 20S HST Cab


PTO Power	16.8 hp	14.2 hp
Alternator	55 A, 12 V	45 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine	Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine
Fuel System	Indirect Injection	Indirect Injection
Displacement	67.2 in³	60.6 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	3000 rpm
Cooling System Type	Water-Cooled	Water-cooled
Engine Manufacturer	Mitsubishi	Yanmar
Engine Power (Gross)	22.9 hp	19.4 hp
Engine Emissions Constraints	No DPF	Complies with US TIER-4 Final Norms

Weight with ROPS and Loader	2026 lb	Not Applicable
Weight with Cab and Loader	Not Applicable	2219 lb

Warranty Length & Coverage	7-Year Limited Powertrain Warranty	7-Year Limited Powertrain Warranty

Pump Type	Not Published	Not Published
Steering Flow	3.8 gpm	2.1 gpm
Implement Flow	7.6 gpm	4.1 gpm
Total Hydraulic Flow	11.4 gpm	6.2 gpm
Hydraulic System Type	Open Center, full-live hydraulic with position control	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	11.4 gpm	6.2 gpm
No. of Optional Remote Valves	Single or dual	Not Published
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm @ 2837 rpm	540 @ 2942 rpm
PTO Type	Independent Wet Clutch	Independent
Lift Control Type	Position Control	Position Control
Hitch Lift Capacity	Not Published	Not Published
Mid-PTO Availability	Optional; 2500 rpm @ 2837 rpm	Available; 2500 @ 2958 rpm
Category, 3-Point Hitch	CAT I with check chains	CAT I Narrow with Check Chains
Hitch Lift Capacity (at 24”)	771 lb	680 lb

R3 Turf - Rear	26X12-12	26X12-12
R3 Turf - Front	18X8.5-10	18X8.5-10
Tire Size & Options	R3 Turf, R4 Industrial	R1 Agriculture, R3 Turf, R4 Industrial
R4 Industrial - Rear	26X12-12	26X12-12
R4 Industrial - Front	18X8.5-10	18X8.5-10
R1 Agricultural - Rear	Not Published	26X12-12
R1 Agricultural - Front	Not Published	18X8.5-10

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	6.6 gal	6.6 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	68 in	71.3 in
Loader Breakout Force	1433 lb	1235 lb
Quick Attach Loader System	L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups.	6.1 gal: Standard skid-steer style loader couplers (Quick Attach Couplers) for fast, easy front-implement connection.
Loader Lift Capacity (Full Height)	794 lb	617 lb (at pivot pin)

Clutch	Not Applicable	Dry-Single
No. of Speeds	Infinite / 2 ranges	Infinite / 2 ranges
Transmission Type	HST	HST
Max Travel Speed (Forward)	7.3 mph	7.8 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Single Pedal	Wet Disc
Steering	Hydrostatic Power Steering	Power Steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	55.1 in	53.1 in
Overall Width	46.3 in	44.5 in
Ground Clearance	6.7 in	8.3 in
Height to Top of ROPS	86.6 in	Not Applicable
Height to Top of Cab Model	Not Applicable	79.6 in
Height to Top of ROPS (folded)	Not Published	Not Applicable
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	100.4 in	94.2 in
