Mahindra 1526 vs Mahindra Max 28XL

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra 1526 leads 6 categories to 2. Machine pages: Mahindra 1526 and Mahindra Max 28XL.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 1526	Mahindra Max 28XL
Engine HP (hp)	25.6 hp	▲ 28 hp
PTO HP (hp)	19 hp	▲ 23.5 hp
Weight (lb)	▲ 2,437 lb	1,863 lb
Loader Lift (lb)	▲ 1,560 lb	1,402 lb
3-Pt Lift (24 in) (lb)	▲ 2,646 lb	2,205 lb
Lift Height (in)	▲ 84 in	82.7 in
Breakout Force (lbf)	▲ 2,795 lbf	2,690 lbf
Hydraulic Flow (gpm)	▲ 10.8 gpm	4.6 gpm

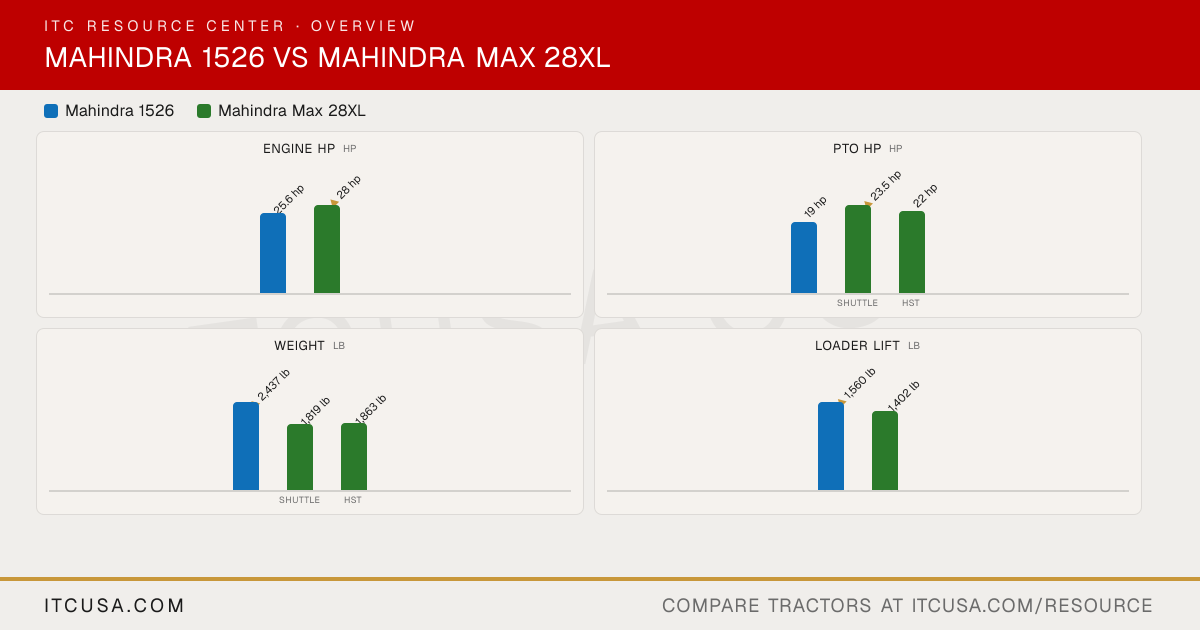

The headline numbers at a glance.

Mahindra 1526Mahindra Max 28XL

Engine HPhp

25.6 hp

▲28 hp

PTO HPhp

19 hp

▲23.5 hp

22 hp

ShuttleHST

Weightlb

▲2,437 lb

1,819 lb

1,863 lb

ShuttleHST

Loader Liftlb

▲1,560 lb

1,402 lb

3-Pt Lift (24 in)lb

▲2,646 lb

2,205 lb

at pinat pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1526	MahindraMax 28XL


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	S3L2	S3L2
Engine Type	Tier IV, four-cycle, valve in cylinder head, naturally aspirated, indirect-injection, water-cooled diesel	Four stroke, indirect injection water-cooled, diesel
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2600 rpm
Engine Power (Gross)	25.6 hp	28 hp
PTO Power	19 hp	Shuttle: 23.5 hp; HST: 22 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Indirect injection
Alternator	50 A, 12 V	50 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	7.5 gpm	4.6 gpm
Steering Flow	3.3 gpm	2.7 gpm
Total Hydraulic Flow	10.8 gpm (7.5 + 3.3, computed)	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center, full live hydraulic with position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	1 spool optional

Fuel Tank Capacity	7.1 gal	6.1 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent (1526 Shuttle); Live (1526 HST)	Trans
PTO Rear	540 rpm	540 rpm @ 2376 rpm
Mid-PTO Availability	Optional; 2000 rpm	Optional, 2000 rpm @ 2526 rpm
Category, 3-Point Hitch	CAT I with telescopic stabilizers	Category 1, with check chains
Hitch Lift Capacity	2,646 lb	2,205 lb
Hitch Lift Capacity (at 24”)	Not Published	Not Published
Lift Control Type	Position control	Position control

Transmission Type	Constant mesh on gear shift, synchro mesh on F/R shuttle (1526 Shuttle); 3 range HST (1526 HST)	Shuttle: Constant mesh on gear shift and synchro mesh on F/R shuttle; HST: HST - 2 ranges
No. of Speeds	8F/8R (1526 Shuttle); Infinite, 3 ranges (1526 HST)	HST: Infinite; Shuttle: 8F / 8R
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Single plate, dry	Single plate, dry
Differential Lock & Limited Slip Options	Not Published	Not Published

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic Power
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Deluxe suspension seat	Not Published
Front Axle Type	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	63 in	54.3 in
Wheelbase	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	7.9 ft	6.6 ft
Height to Top of ROPS	81.5 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	121.3 in (with industrial tires)	109.3 in

Tractor Weight (Base)	2,437 lb (1526 Shuttle, operating weight); 2,459 lb (1526 HST, operating weight)	Shuttle: 1,819 lb (operating weight); HST: 1,863 lb (operating weight)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, Industrial, Turf	Not Published
R1 Agricultural - Front	7x16	7x12
R1 Agricultural - Rear	11.2x24	9.5x16
R3 Turf - Front	25x8.5-14	23x8.5-12
R3 Turf - Rear	13.6x16	33x12.5-16.5
R4 Industrial - Front	27x8.5-15	23x8.5-12
R4 Industrial - Rear	15x19.5	12x16.5

Quick Attach Loader System	Not Published	Skid-steer style loader couplers
Loader Model	1526L	ML205
Loader Lift Height	1526L: 84 in	ML205: 82.7 in
Loader Lift Capacity (Full Height)	1526L: 1,560 lb (at pivot pin)	ML205: 1,402 lb (at pivot pins)
Loader Breakout Force	1526L: 2,795 lb (at pivot pin)	ML205: 2,690 lb (at pivot pins)

Warranty Length & Coverage	7-year limited powertrain warranty	Not Published

Find a Mahindra dealer near you

Mahindra 1526 vs Mahindra Max 28XL: Quick Answers

Which has more horsepower, the Mahindra 1526 or the Mahindra Max 28XL?: The Mahindra Max 28XL leads on engine hp at 28 hp hp, compared to 25.6 hp hp for the Mahindra 1526.
Which has more PTO horsepower, the Mahindra 1526 or the Mahindra Max 28XL?: The Mahindra Max 28XL leads on pto hp at 23.5 hp hp, compared to 19 hp hp for the Mahindra 1526.
Which is heavier, the Mahindra 1526 or the Mahindra Max 28XL?: The Mahindra 1526 leads on weight at 2,437 lb lb, compared to 1,863 lb lb for the Mahindra Max 28XL.
Which has more loader lift capacity, the Mahindra 1526 or the Mahindra Max 28XL?: The Mahindra 1526 leads on loader lift at 1,560 lb lb, compared to 1,402 lb lb for the Mahindra Max 28XL.
Which has more three-point hitch lift capacity, the Mahindra 1526 or the Mahindra Max 28XL?: The Mahindra 1526 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 2,205 lb lb for the Mahindra Max 28XL.
