Mahindra 1533 vs Mahindra 3616

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Mahindra 1533 leads 3 categories to 1 (4 tied). Machine pages: Mahindra 1533 and Mahindra 3616.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Mahindra 1533	Mahindra 3616
Engine HP (hp)	34.5 hp	34.5 hp
PTO HP (hp)	25.2 hp	▲ 31 hp
Weight (lb)	▲ 3,175 lb	3,087 lb
Loader Lift (lb)	1,650 lb	1,650 lb
3-Pt Lift (24 in) (lb)	▲ 2,646 lb	1,720 lb
Lift Height (in)	99 in	99 in
Breakout Force (lbf)	2,650 lbf	2,650 lbf
Hydraulic Flow (gpm)	▲ 11 gpm	7.7 gpm

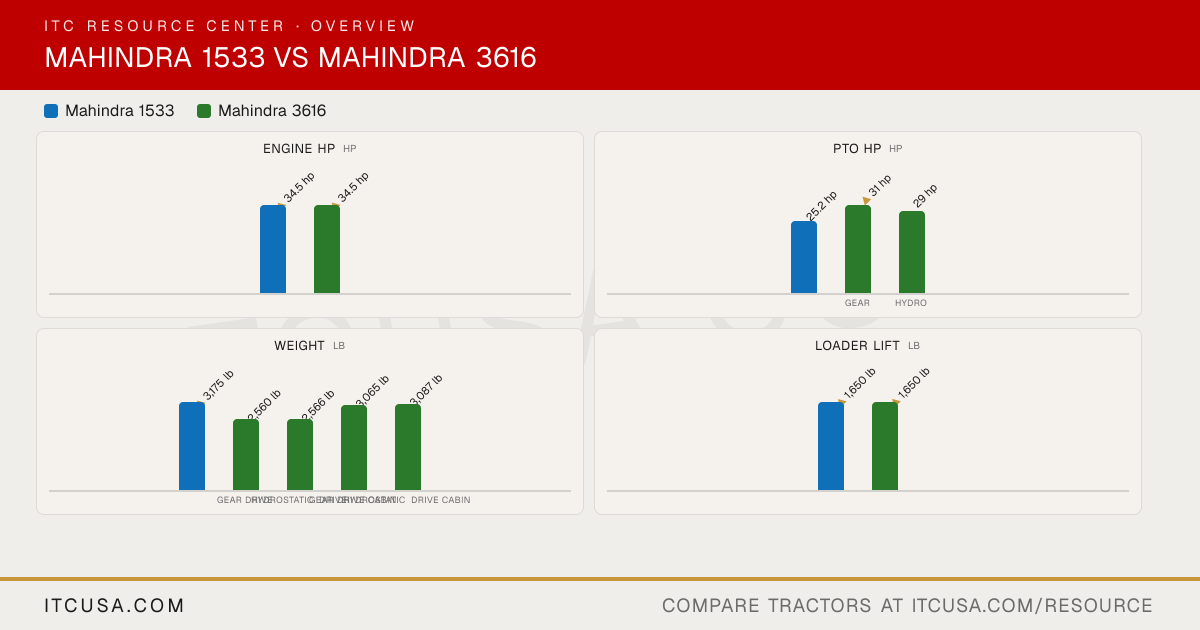

The headline numbers at a glance.

Mahindra 1533Mahindra 3616

Engine HPhp

▲34.5 hp

PTO HPhp

25.2 hp

▲31 hp

29 hp

GearHydro

Weightlb

▲3,175 lb

2,560 lb

2,566 lb

3,065 lb

3,087 lb

Gear DriveHydrostatic DriveGear Drive CabinHydrostatic Drive Cabin

Loader Liftlb

▲1,650 lb

3-Pt Lift (24 in)lb

▲2,646 lb

1,720 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1533	Mahindra3616


Engine Manufacturer	Mahindra	Mitsubishi
Engine Model	Not Published	Not Published
Engine Type	Naturally aspirated direct injection diesel (mCRD common rail)	Three Cylinders, Four Cycle, Valve in Cylinder Head, Cross Flow Porting
No. of Cylinders	4	3
Displacement	166.7 in³	101.4 in³
Rated Engine Speed	2400 rpm	2600 rpm
Engine Power (Gross)	34.5 hp	34.5 hp
PTO Power	25.2 hp	Gear: 31 hp; Hydro: 29 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry Type Air Cleaning System with Double Filter
Fuel System	Direct injection, common rail (mCRD)	3016: BOSCH M type ND-PFR, DENSO; 3616: BOSCH-PFR
Alternator	90 A, 12 V	55 A, 12 V

Pump Type	Not Published	Front Mounted, Engine Driven, Pressure Loading Gear Type
Implement Flow	7.7 gpm	7.7 gpm at 2600 engine rpm
Steering Flow	3.4 gpm	3.4 gpm at 2600 engine rpm
Total Hydraulic Flow	11 gpm	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	1 (optional)

Fuel Tank Capacity	7.7 gal	7.1 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent (1533 Shuttle); Live (1533 HST)	Gear Drive: Independent PTO; Hydrostatic Drive: Live PTO (internal over-running clutch)
PTO Rear	540 rpm @ 2376 rpm	540 rpm @ 2376 rpm
Mid-PTO Availability	Optional; 2000 rpm @ 2525 rpm	Optional, 2000 rpm @ 2525 rpm
Category, 3-Point Hitch	CAT I with telescopic stabilizers	Category I
Hitch Lift Capacity	2646 lb	2646 lb
Hitch Lift Capacity (at 24”)	Not Published	1720 lb
Lift Control Type	Position control	Position control

Transmission Type	Constant mesh shuttle (1533 Shuttle); HST, 3 ranges (1533 HST)	Gear Drive: Synchromesh on shuttle (forward-reverse) and main gear shift of constant mesh with two ranges of selective sliding gears; Hydrostatic Drive: HST with three ranges of selective sliding gears
No. of Speeds	8F/8R (1533 Shuttle); Infinite, 3 ranges (1533 HST)	Not Published
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single disc	Dry, Single Disc, Diaphragm Type, 8.46 in
Differential Lock & Limited Slip Options	Not Published	Controlled by pedal, mechanically actuated (gear drive: RH step; hydrostatic drive: LH step)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet disc	Wet Disk Plate Type
Seat Suspension & Adjustability	Deluxe suspension seat	Not Published
Front Axle Type	Not Published	Mechanical Front Drive (MFD): Spiral Bevel Gear Type Differential with Bevel Gear Reductions
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	969 lbf

Overall Length with 3-Point Hitch	127.8 in	121.3 in
Overall Width	63 in	3616 (43x16.00-20): 62 in
Wheelbase	Not Published	68.9 in
Ground Clearance	Not Published	3616 (28x8.50-15): 12.5 in
Min. Turn Radius without Brakes	9.2 ft	3616: 98.4 in (with brake assistance) (with brake applied)
Height to Top of ROPS	90.2 in	3616 (43x16.00-20): 84.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	3616 CABIN (43x16.00-20): 83 in

Tractor Weight (Base)	3175 lb (1533 Shuttle); 3164 lb (1533 HST)	Gear Drive: 2560 lb; Hydrostatic Drive: 2566 lb; Gear Drive Cabin: 3065 lb; Hydrostatic Drive Cabin: 3087 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, Industrial, Turf	Not Published
R1 Agricultural - Front	7x16	7x16
R1 Agricultural - Rear	11.2x24	11.2x24
R3 Turf - Front	25x8.5-14	27x10.5-15
R3 Turf - Rear	13.6x16	41x14-20
R4 Industrial - Front	27x8.5-15	28x8.5-15
R4 Industrial - Rear	15x19.5	43x16-20

Quick Attach Loader System	Not Published	Not Published
Loader Model	1538L	ML115
Loader Lift Height	1538L: 99 in	ML115: 99 in
Loader Lift Capacity (Full Height)	1538L: 1,650 lb	ML115: 1,650 lb
Loader Breakout Force	1538L: 2,650 lb	ML115: 2,650 lb

Warranty Length & Coverage	5-year powertrain warranty	Not Published

Find a Mahindra dealer near you

Mahindra 1533 vs Mahindra 3616: Quick Answers

Which has more horsepower, the Mahindra 1533 or the Mahindra 3616?: They are effectively tied: both machines are rated at 34.5 hp hp for engine hp.
Which has more PTO horsepower, the Mahindra 1533 or the Mahindra 3616?: The Mahindra 3616 leads on pto hp at 31 hp hp, compared to 25.2 hp hp for the Mahindra 1533.
Which is heavier, the Mahindra 1533 or the Mahindra 3616?: The Mahindra 1533 leads on weight at 3,175 lb lb, compared to 3,087 lb lb for the Mahindra 3616.
Which has more loader lift capacity, the Mahindra 1533 or the Mahindra 3616?: They are effectively tied: both machines are rated at 1,650 lb lb for loader lift.
Which has more three-point hitch lift capacity, the Mahindra 1533 or the Mahindra 3616?: The Mahindra 1533 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,720 lb lb for the Mahindra 3616.

More Head-to-Heads

Category Verdict

Spec	Mahindra 1533	Mahindra 3616
Engine HP (hp)	34.5 hp	34.5 hp
PTO HP (hp)	25.2 hp	▲ 31 hp
Weight (lb)	▲ 3,175 lb	3,087 lb
Loader Lift (lb)	1,650 lb	1,650 lb
3-Pt Lift (24 in) (lb)	▲ 2,646 lb	1,720 lb
Lift Height (in)	99 in	99 in
Breakout Force (lbf)	2,650 lbf	2,650 lbf
Hydraulic Flow (gpm)	▲ 11 gpm	7.7 gpm

The headline numbers at a glance.

Mahindra 1533Mahindra 3616

Engine HPhp

▲34.5 hp

PTO HPhp

25.2 hp

▲31 hp

29 hp

GearHydro

Weightlb

▲3,175 lb

2,560 lb

2,566 lb

3,065 lb

3,087 lb

Gear DriveHydrostatic DriveGear Drive CabinHydrostatic Drive Cabin

Loader Liftlb

▲1,650 lb

3-Pt Lift (24 in)lb

▲2,646 lb

1,720 lb

at pin

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Mahindra1533	Mahindra3616


Engine Manufacturer	Mahindra	Mitsubishi
Engine Model	Not Published	Not Published
Engine Type	Naturally aspirated direct injection diesel (mCRD common rail)	Three Cylinders, Four Cycle, Valve in Cylinder Head, Cross Flow Porting
No. of Cylinders	4	3
Displacement	166.7 in³	101.4 in³
Rated Engine Speed	2400 rpm	2600 rpm
Engine Power (Gross)	34.5 hp	34.5 hp
PTO Power	25.2 hp	Gear: 31 hp; Hydro: 29 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry Type Air Cleaning System with Double Filter
Fuel System	Direct injection, common rail (mCRD)	3016: BOSCH M type ND-PFR, DENSO; 3616: BOSCH-PFR
Alternator	90 A, 12 V	55 A, 12 V

Pump Type	Not Published	Front Mounted, Engine Driven, Pressure Loading Gear Type
Implement Flow	7.7 gpm	7.7 gpm at 2600 engine rpm
Steering Flow	3.4 gpm	3.4 gpm at 2600 engine rpm
Total Hydraulic Flow	11 gpm	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	1	1 (optional)

Fuel Tank Capacity	7.7 gal	7.1 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent (1533 Shuttle); Live (1533 HST)	Gear Drive: Independent PTO; Hydrostatic Drive: Live PTO (internal over-running clutch)
PTO Rear	540 rpm @ 2376 rpm	540 rpm @ 2376 rpm
Mid-PTO Availability	Optional; 2000 rpm @ 2525 rpm	Optional, 2000 rpm @ 2525 rpm
Category, 3-Point Hitch	CAT I with telescopic stabilizers	Category I
Hitch Lift Capacity	2646 lb	2646 lb
Hitch Lift Capacity (at 24”)	Not Published	1720 lb
Lift Control Type	Position control	Position control

Transmission Type	Constant mesh shuttle (1533 Shuttle); HST, 3 ranges (1533 HST)	Gear Drive: Synchromesh on shuttle (forward-reverse) and main gear shift of constant mesh with two ranges of selective sliding gears; Hydrostatic Drive: HST with three ranges of selective sliding gears
No. of Speeds	8F/8R (1533 Shuttle); Infinite, 3 ranges (1533 HST)	Not Published
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single disc	Dry, Single Disc, Diaphragm Type, 8.46 in
Differential Lock & Limited Slip Options	Not Published	Controlled by pedal, mechanically actuated (gear drive: RH step; hydrostatic drive: LH step)

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet disc	Wet Disk Plate Type
Seat Suspension & Adjustability	Deluxe suspension seat	Not Published
Front Axle Type	Not Published	Mechanical Front Drive (MFD): Spiral Bevel Gear Type Differential with Bevel Gear Reductions
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	969 lbf

Overall Length with 3-Point Hitch	127.8 in	121.3 in
Overall Width	63 in	3616 (43x16.00-20): 62 in
Wheelbase	Not Published	68.9 in
Ground Clearance	Not Published	3616 (28x8.50-15): 12.5 in
Min. Turn Radius without Brakes	9.2 ft	3616: 98.4 in (with brake assistance) (with brake applied)
Height to Top of ROPS	90.2 in	3616 (43x16.00-20): 84.4 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	3616 CABIN (43x16.00-20): 83 in

Tractor Weight (Base)	3175 lb (1533 Shuttle); 3164 lb (1533 HST)	Gear Drive: 2560 lb; Hydrostatic Drive: 2566 lb; Gear Drive Cabin: 3065 lb; Hydrostatic Drive Cabin: 3087 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Ag, Industrial, Turf	Not Published
R1 Agricultural - Front	7x16	7x16
R1 Agricultural - Rear	11.2x24	11.2x24
R3 Turf - Front	25x8.5-14	27x10.5-15
R3 Turf - Rear	13.6x16	41x14-20
R4 Industrial - Front	27x8.5-15	28x8.5-15
R4 Industrial - Rear	15x19.5	43x16-20

Quick Attach Loader System	Not Published	Not Published
Loader Model	1538L	ML115
Loader Lift Height	1538L: 99 in	ML115: 99 in
Loader Lift Capacity (Full Height)	1538L: 1,650 lb	ML115: 1,650 lb
Loader Breakout Force	1538L: 2,650 lb	ML115: 2,650 lb

Warranty Length & Coverage	5-year powertrain warranty	Not Published

Find a Mahindra dealer near you

Mahindra 1533 vs Mahindra 3616: Quick Answers

Which has more horsepower, the Mahindra 1533 or the Mahindra 3616?

They are effectively tied: both machines are rated at 34.5 hp hp for engine hp.

Which has more PTO horsepower, the Mahindra 1533 or the Mahindra 3616?

The Mahindra 3616 leads on pto hp at 31 hp hp, compared to 25.2 hp hp for the Mahindra 1533.

Which is heavier, the Mahindra 1533 or the Mahindra 3616?

The Mahindra 1533 leads on weight at 3,175 lb lb, compared to 3,087 lb lb for the Mahindra 3616.

Which has more loader lift capacity, the Mahindra 1533 or the Mahindra 3616?

They are effectively tied: both machines are rated at 1,650 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Mahindra 1533 or the Mahindra 3616?

The Mahindra 1533 leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,720 lb lb for the Mahindra 3616.
